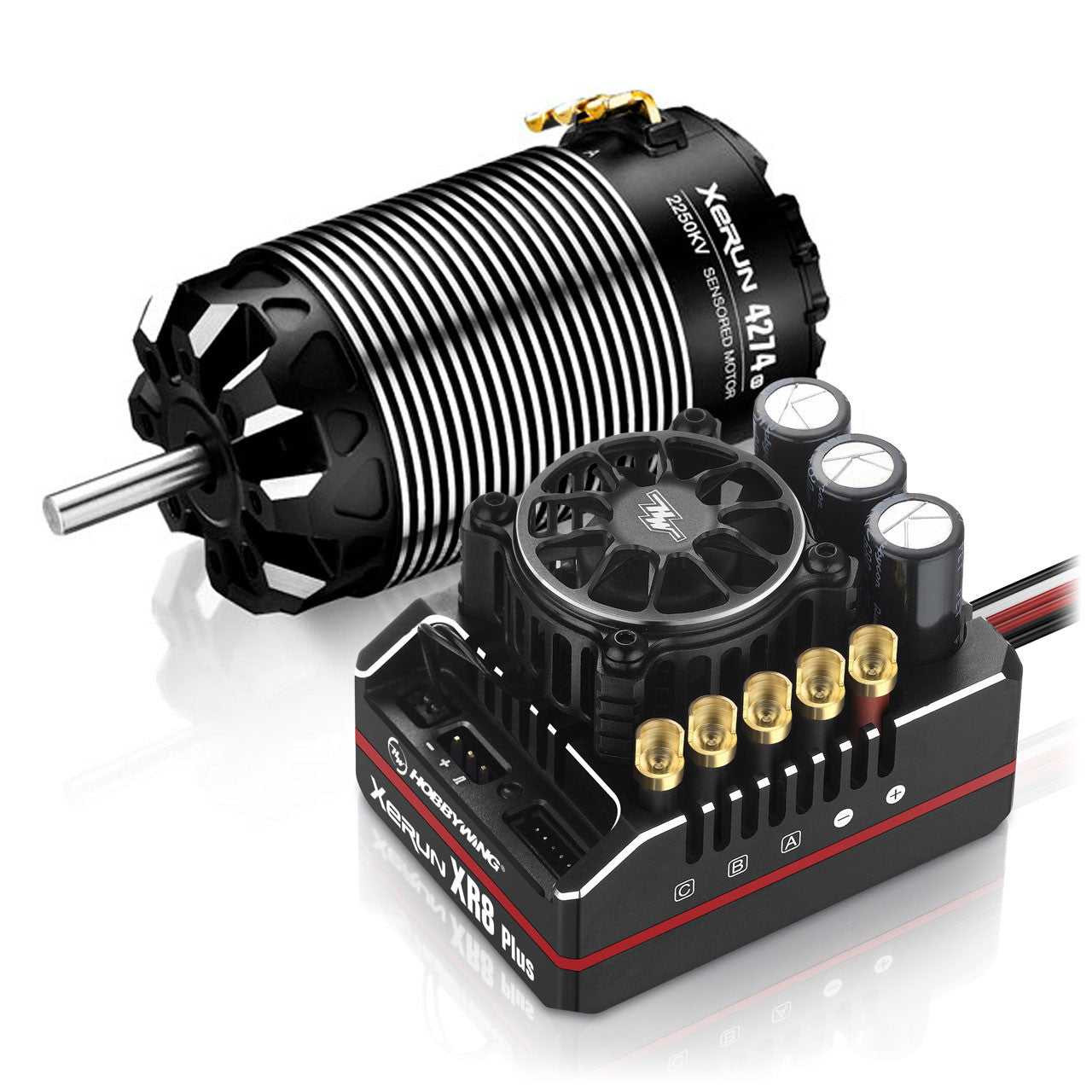

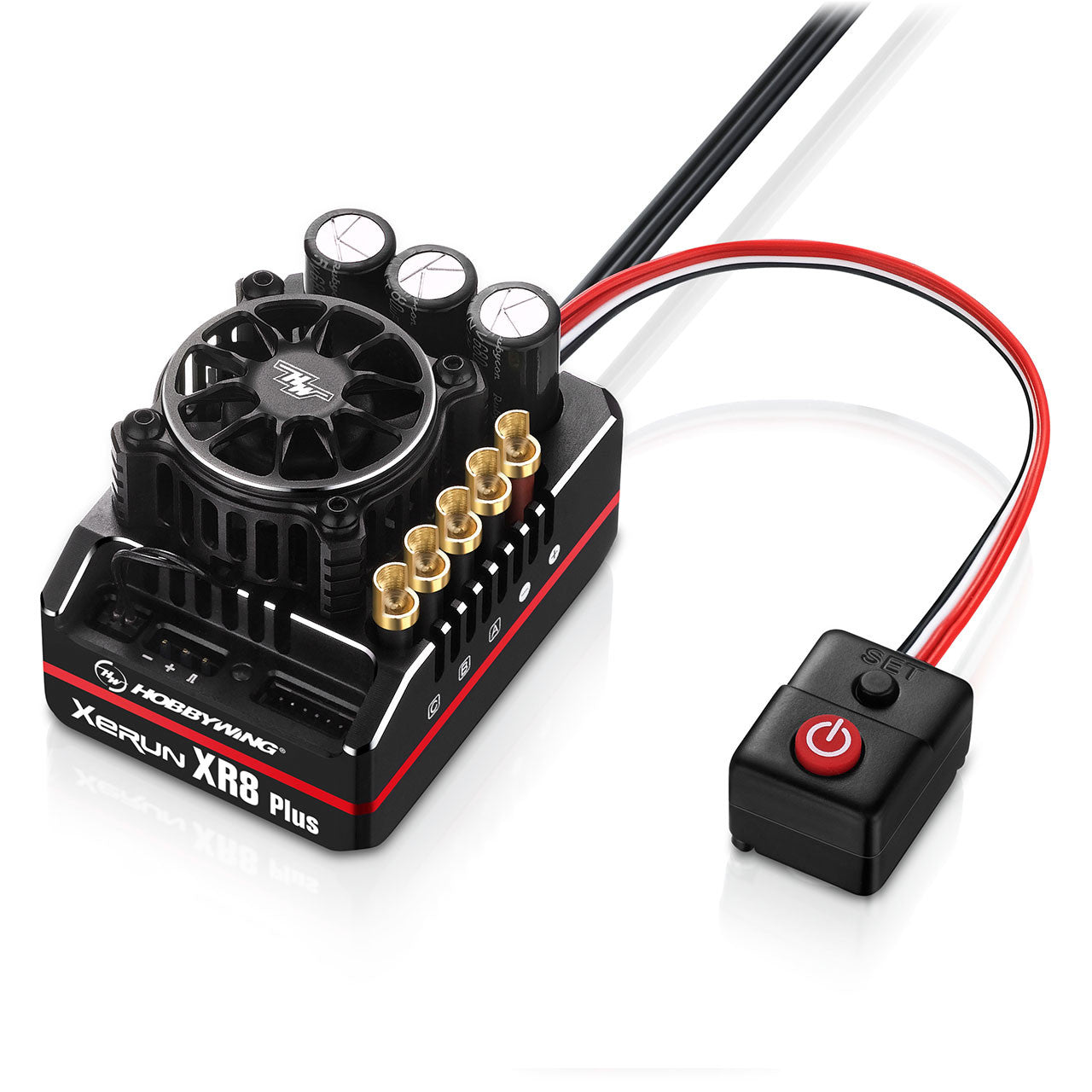

The XR8 Plus G2Sis the next development in a series of 1/8 ESCs with 5 category profiles. An efficient Nitro regulation system ensures perfect heat dissipation, thanks to the strong airflow on the sides of the fan and the Nitro copper heat sink inside. The XR8 G2S is optimally protected.
The XR8 Plus G2S supports boost and turbo timing up to 48°, which is important in competitions.
Designed for use with 2 to 6S LiPo batteries, the ultra-soft cable type is made of 11AWG wires, the solder connectors are specially designed, and the sleek appearance is an example of high-quality manufacturing. In terms of functionality, the XR8 G2SE shines with a BEC of 6 to 8.4 V in 0.1 increments. The capacitor also provides safety and protection. If the XR8 Plus ESC is linked to the Hobbywing app, the collected data can not only be evaluated but also viewed live.
- CNC aluminum housing for better cooling
- 30 different adjustment parameters
- Supports Full Sensored mode (when used with a suitable HOBBYWING motor)
- BEC with max. 15A and 6-8.4V for use with various servos
- Internal protection against incorrect battery connection
- Nitro protection of capacitors to prevent explosions
- Simplest possible programming without cables using the OTA programmer and a smartphone
- Specially designed for 1/8 cars buggy, truggy, On-road competition
- Compatible with sensored and sensorless motors
- 200A continuous power
- 1080A peak power
- 2 to 6S Lipo power supply
- Dynamic timing
- BEC 6V/8.4V 6A, max 15A
- Dimensions 56.1(L) x 42.1(W) x 38.5(H) mm
- Weight: 120g
- The G3 version provides more efficient ventilation than the G2 version

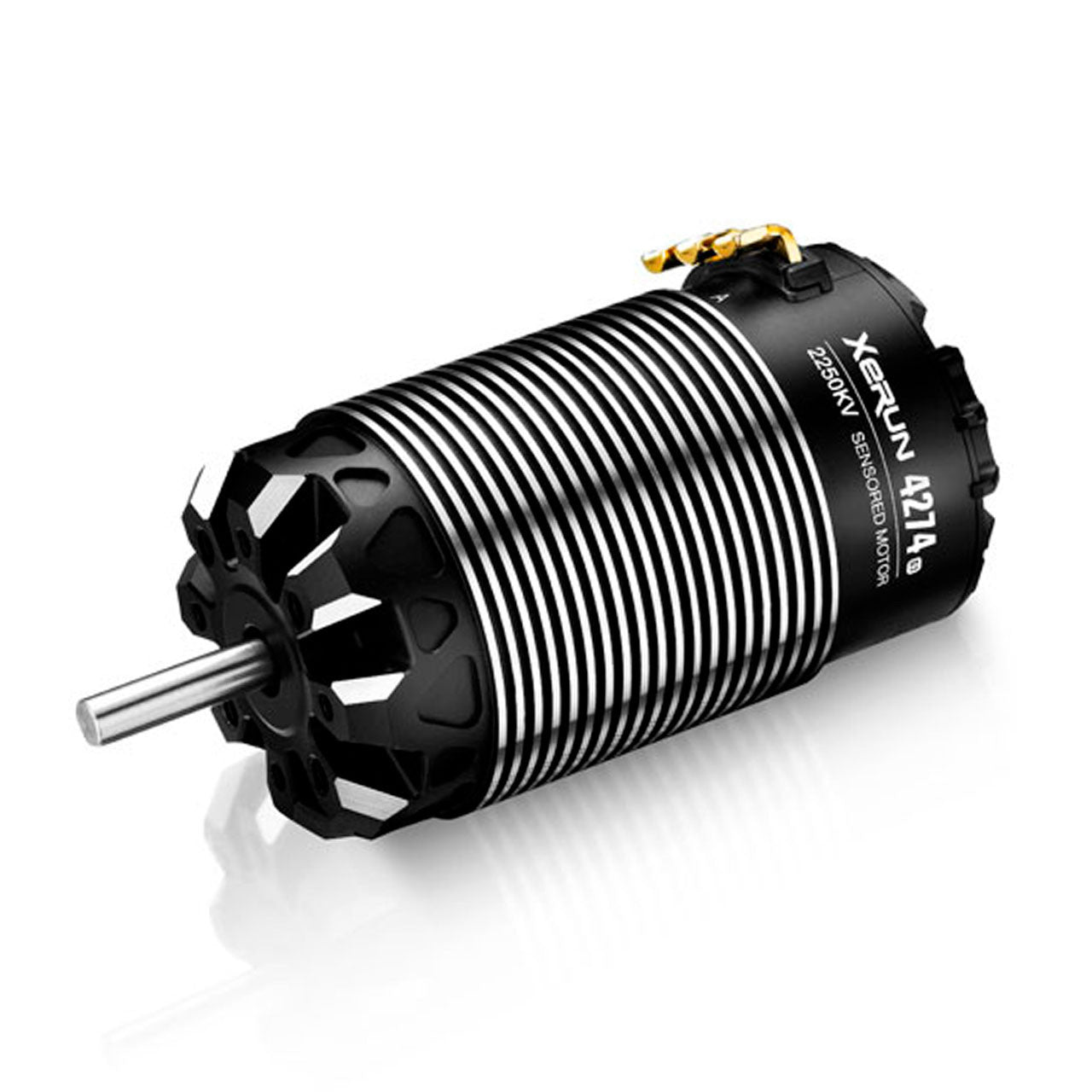

- Full-sensored Mode. The first motor with a chip that allows the ESC to identify it.
- If you use it with a ESC Xerun XR8/XR8 Plus, you will be able to take advantage of Full-sensored mode and enjoy better performance and greater flexibility.
- Turbo Timing Technology. When used with a Xerun XR8 variator, you can activate the turbo timing function and boost the motor's performance.
- Bi-directional Adjustable Timing. Bidirectional (CW and CCW) mechanical adjustment of the motor timing to optimize performance according to your use.
- Advanced Hall Sensing System. In Full-Sensored mode, the sensor knows the exact position of the motor and protects the system from interference.
- Low Cogging Torque. The first motor to adopt a 4-pole 8-magnet rotor (staggered poles), resulting in very low cogging (85% reduction compared to a standard motor).
- Motor cage in CNC-machined aluminum
- Sensor with silicone seal.
- New gold U-shaped connector.
- Japanese NMB bearings
- High-density adhesive 340°C
Hobbywing Xerun 4274SD G2 - Dimensions:
- Motor shaft 5mm
- Length 74mm
- Shaft length 18.5mm
- Diameter 42mm
- Weight 354g
