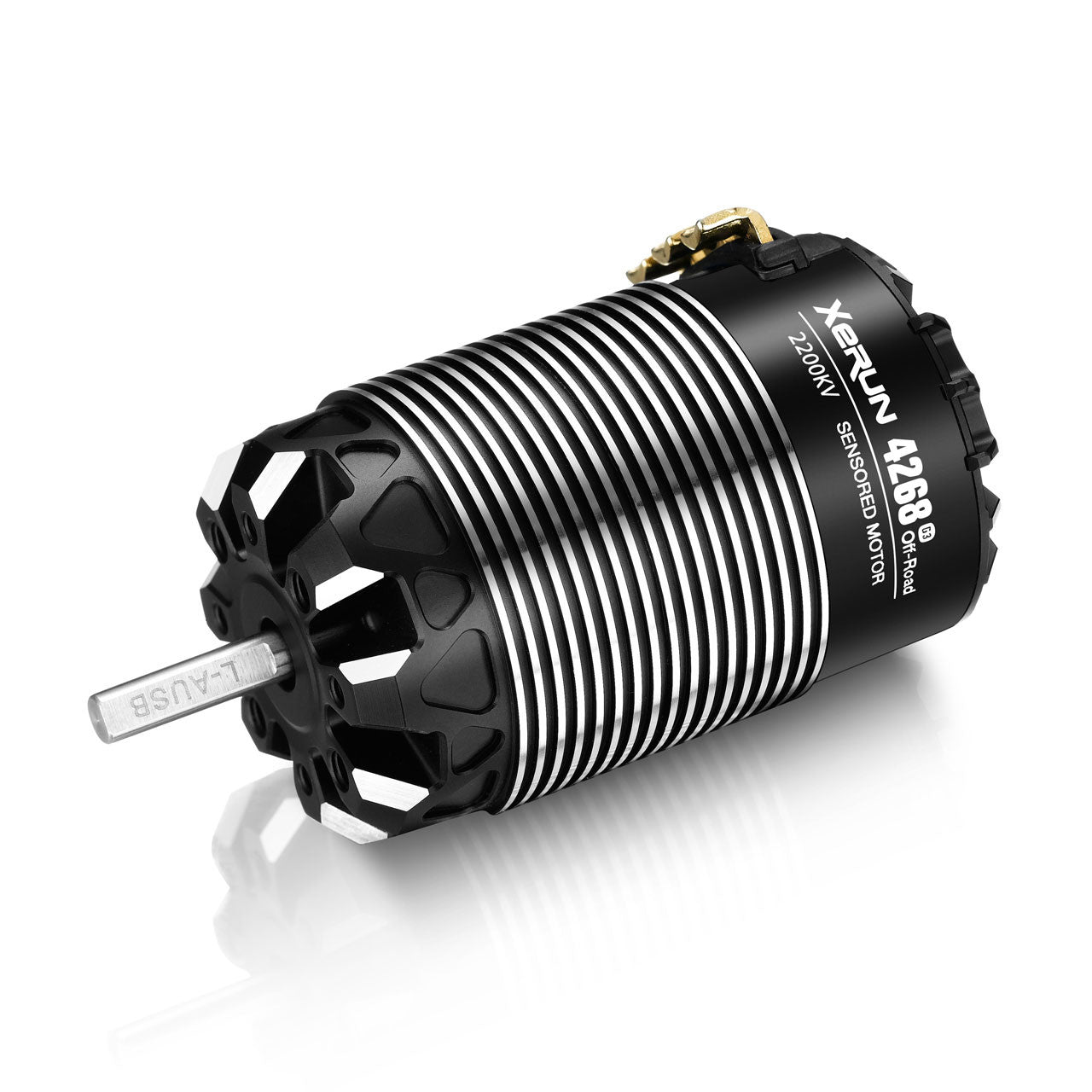

Hobbywing Xerun 4268SD 2200KV G3 Sensored Off-Road Motor - Specifications:
- The G3 version allows more efficient ventilation than the G2 version
- Full-sensored Mode. The first motor with a chip that allows the variator to identify it.
- If you use it with a Xerun XR8/XR8 Plus drive you will be able to take advantage of Full-sensored mode and benefit from better performance as well as more flexibility.
- Turbo Timing Technology. If used with a Xerun XR8 variatuer you can activate the turbo timing function and thus boost engine performance.
- Bi-directional Adjustable Timing. Bidirectional (CW and CCW) mechanical adjustment of motor timing to optimize performance according to your use.
- Advanced Hall Sensing System. In Full-Sensored mode the sensor knows the exact position of the motor, and protects the system from interference.
- ow Cogging Torque. First motor to adopt a 4 pole 8 magnet rotor (staggered pole), allows to obtain very low cogging (85% reduction compared to a standard motor).
- CNC machined aluminum engine cage
- Sensor with silicone seal.
- New Gold U-shaped connector.
- Japanese NMB bearings
- High density glue 340°C
Hobbywing Xerun 4268SD G2 - Dimensions:
- 5mm motor shaft
- Length 67.8mm
- Axle length 18.5mm
- Diameter 42mm
- Weight 285gr
