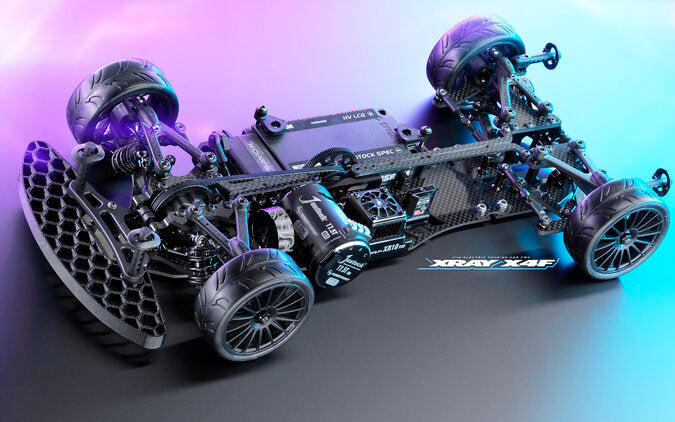

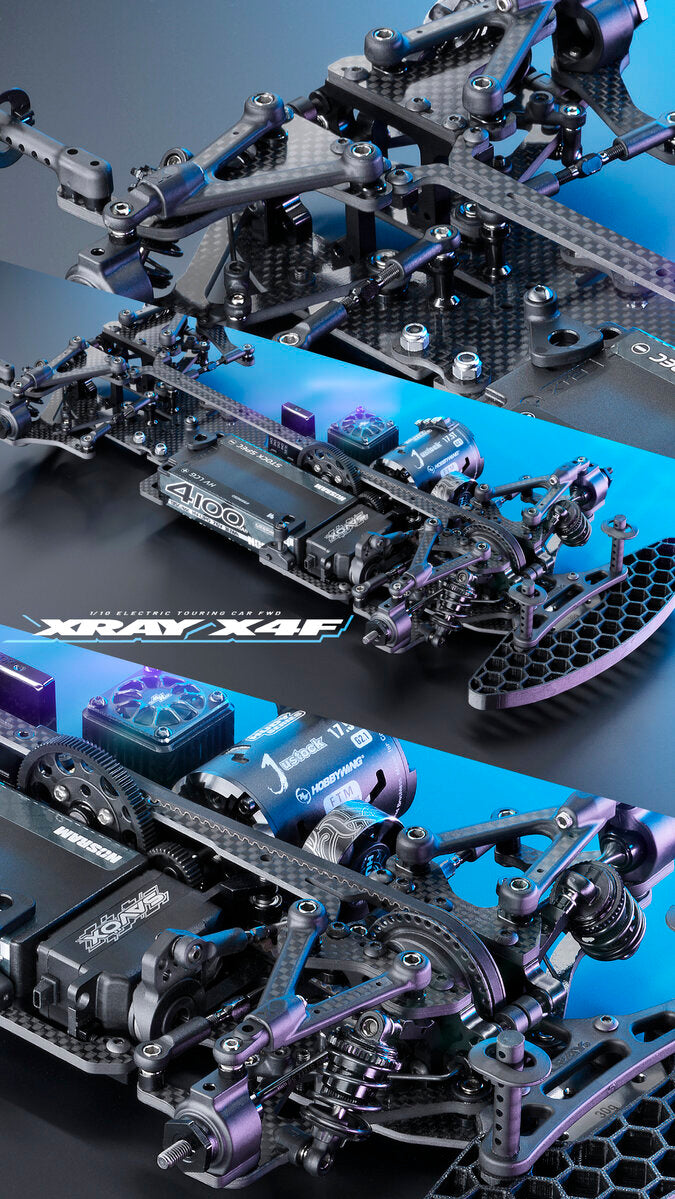

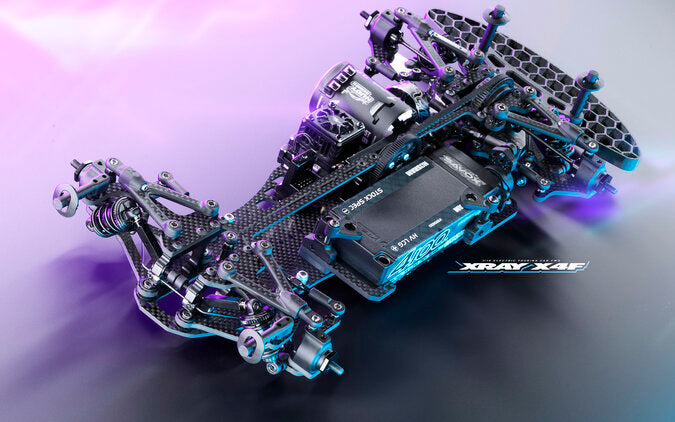

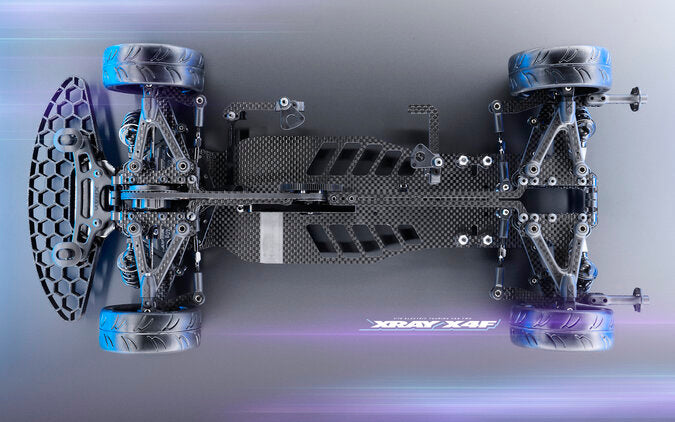

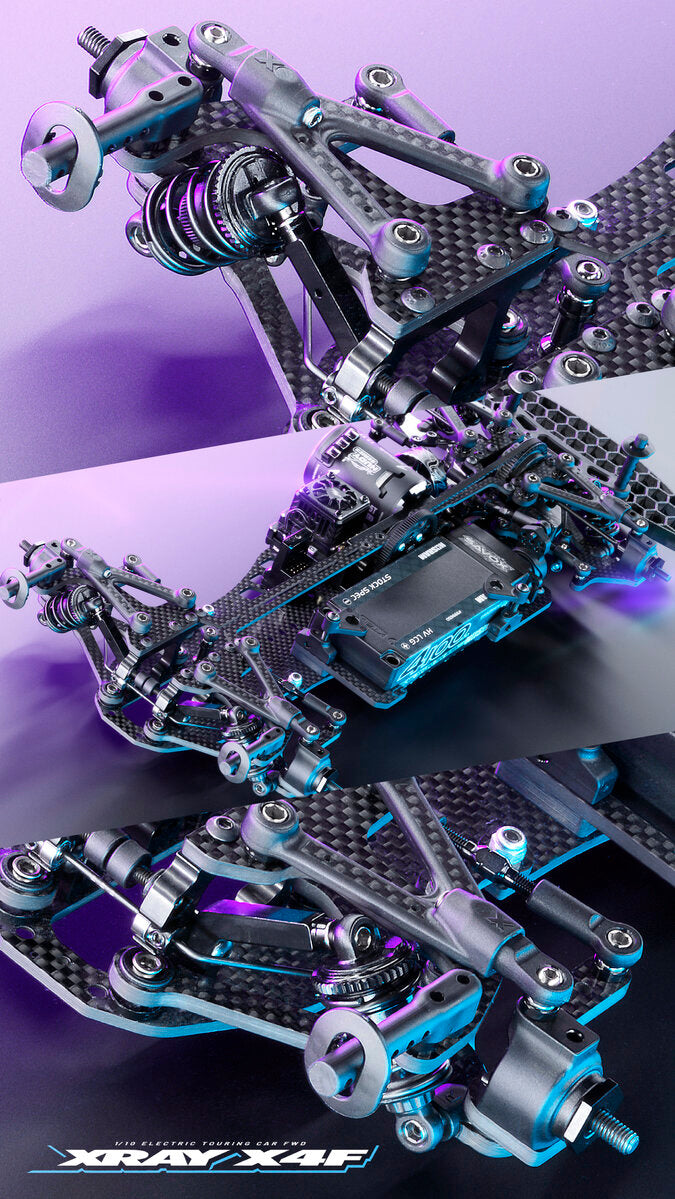

🚗 The XRAY X4F'27 represents the new generation of 1/10 FWD competition RC cars Touring, developed for the most demanding drivers. Completely redesigned, this 2027 version features a wide range of improvements derived from international competition development. A new, optimized carbon chassis, new CFF2™ suspension, ultra-low XLP2 shock absorbers, completely redesigned flex settings, a lightweight differential, and revised suspension geometry combine to create a car that is faster, more precise, and easier to drive on all types of carpet. True to the XRAY philosophy, the X4F'27 offers exceptional build quality, high-end craftsmanship, and a particularly wide range of tuning options to adapt to all On-road conditions.
- 1/10 FWD competition Touring RC car (knock-down)

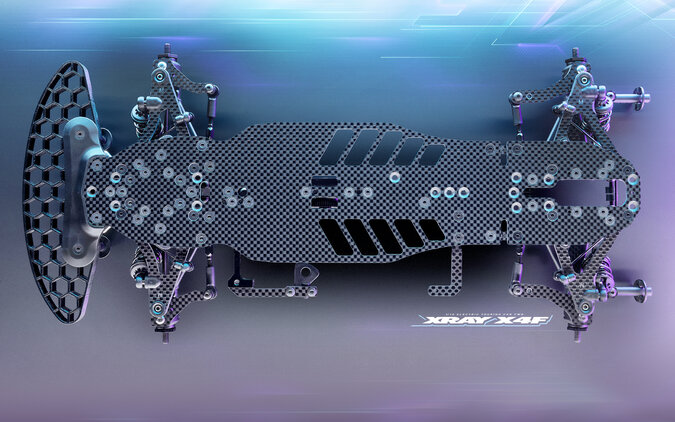

- 2.2 mm carbon chassis with cutouts optimized for flex adjustment
- Complete front and rear flex adjustment system
- Carbon reinforcements with multiple stiffness levels
- Ultra-lightweight, narrower, and more reliable pinion differential
- 6x10x3 mm differential bearings to reduce weight and lower the center of gravity
- Eccentric bearing housings with belt tension adjustment
- CFF2™ carbon fiber/composite lower suspension arms
- New suspension geometry with outer-mounted shock absorbers
- Optimized CFF™ upper control arms
- Link-type upper control arms included
- Lightweight carbon upper mounts
- Carbon steering plates and ARS
- Two mounting positions for the rear control arms on the ARS plates
- XLP2 shock absorbers lowered by 4 mm
- Redesigned shock mounts raised by 1 mm
- Three flex adjustment positions
- New geometry improving cornering speed, stability, and steering
- Ultra-low anti-roll bars
- Height adjustment via pressure screw
- Ultra-rigid one-piece servo mount
- Redesigned motor mount with milled mounting holes
- Integrated carbon fiber rear body mount
- Aluminum front strut bar with multiple configurations
- Adjustments to optimize steering, traction, cornering speed, and handling
- Front weight: 30 g
- Two 40 g front side weights
- Ultra-lightweight 3D-printed bumper
- Improved airflow under the body
- Compatible with front ballast up to 30 g
- Battery mount integrated into the servo mount
- Adjustable Quick Battery Mounting system without adhesive tape
- Developed and tested by official XRAY drivers
- XRAY X4F'27 kit (for assembly)
- Assembly instructions
- Radio transmitter + receiver
- Steering servo
- ESC (ESC)
- Motor brushless + Gear motor
- 2S LiPo battery
- Compatible charger
- Touring FWD 1/10 tires
- Touring 1/10 rims
- Touring 190 mm body
The XRAY X4F'27 is designed for Touring 1/10 FWD drivers looking for a top-tier competition platform. Thanks to its incredible tuning potential, fully optimized chassis, and numerous technical innovations, it is perfectly suited for racers seeking maximum performance on both carpet and high-grip tracks.
