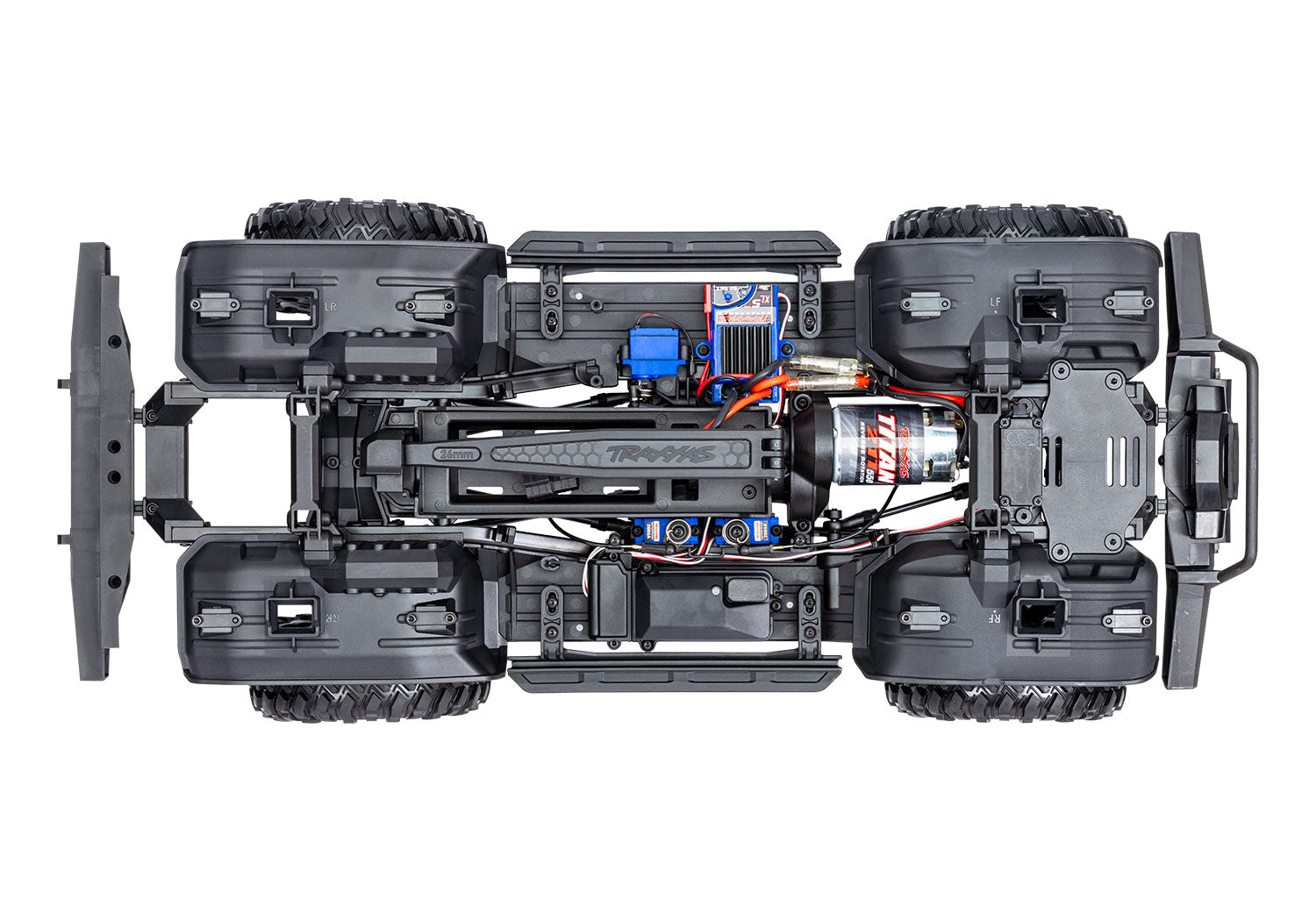

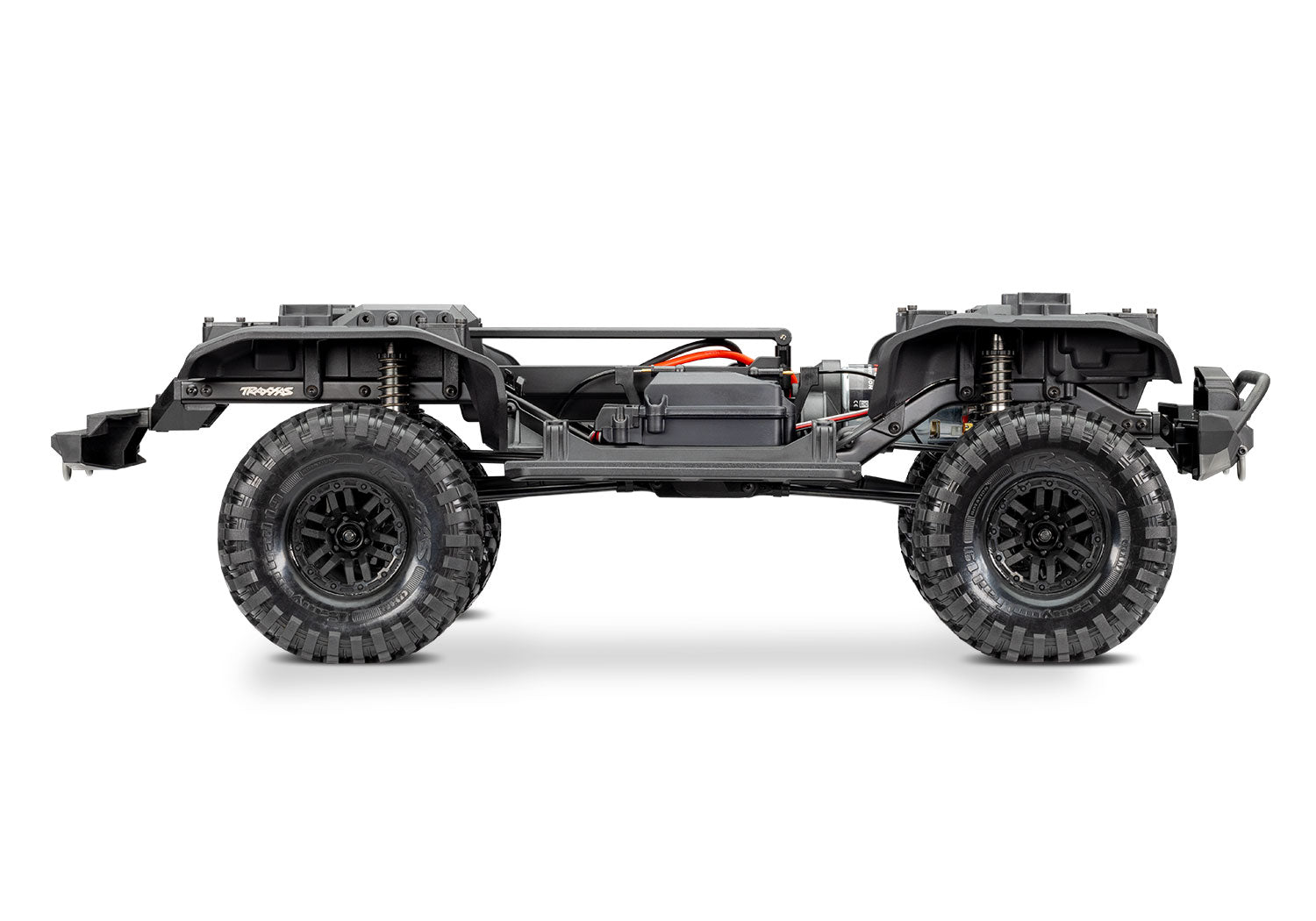

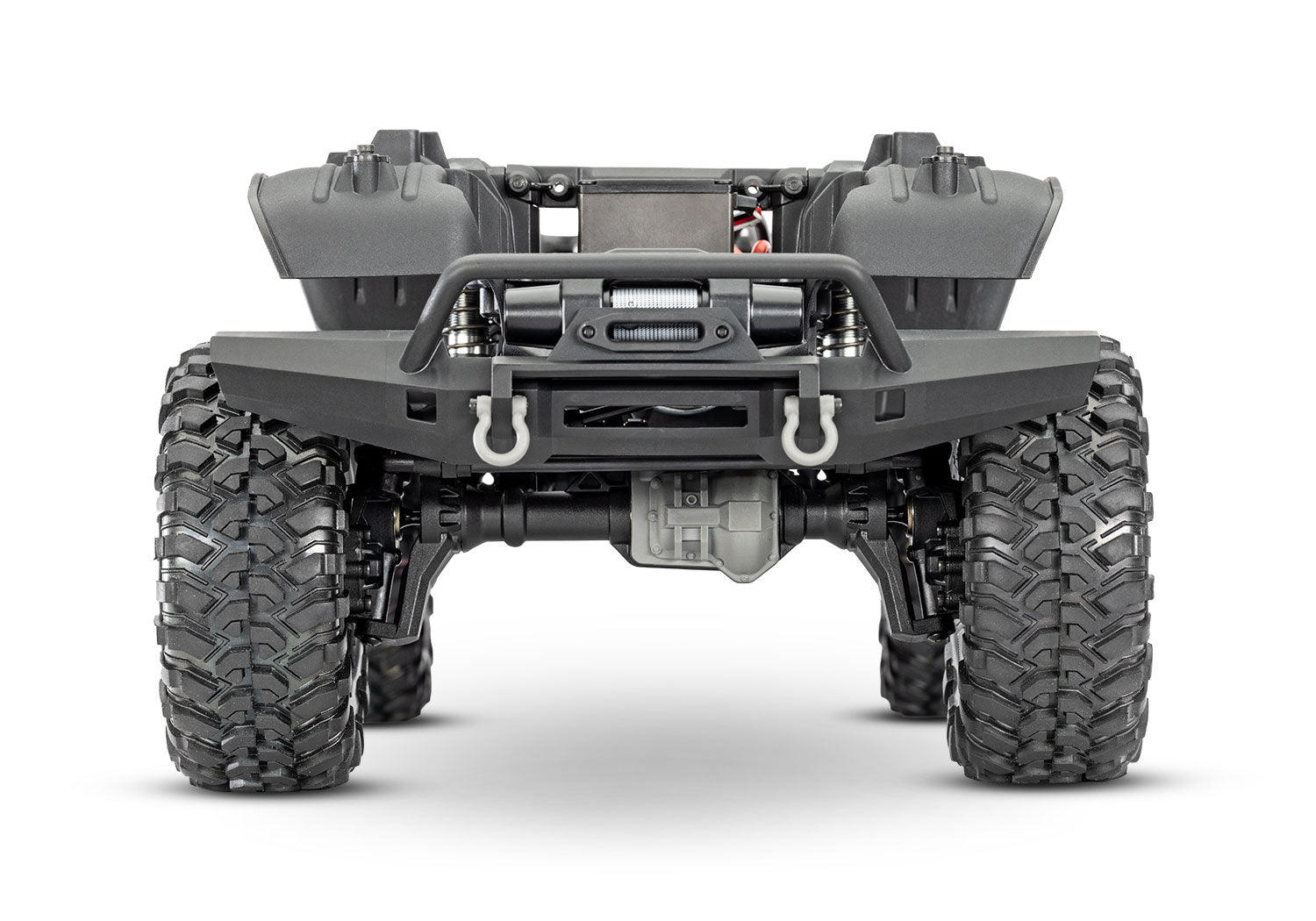

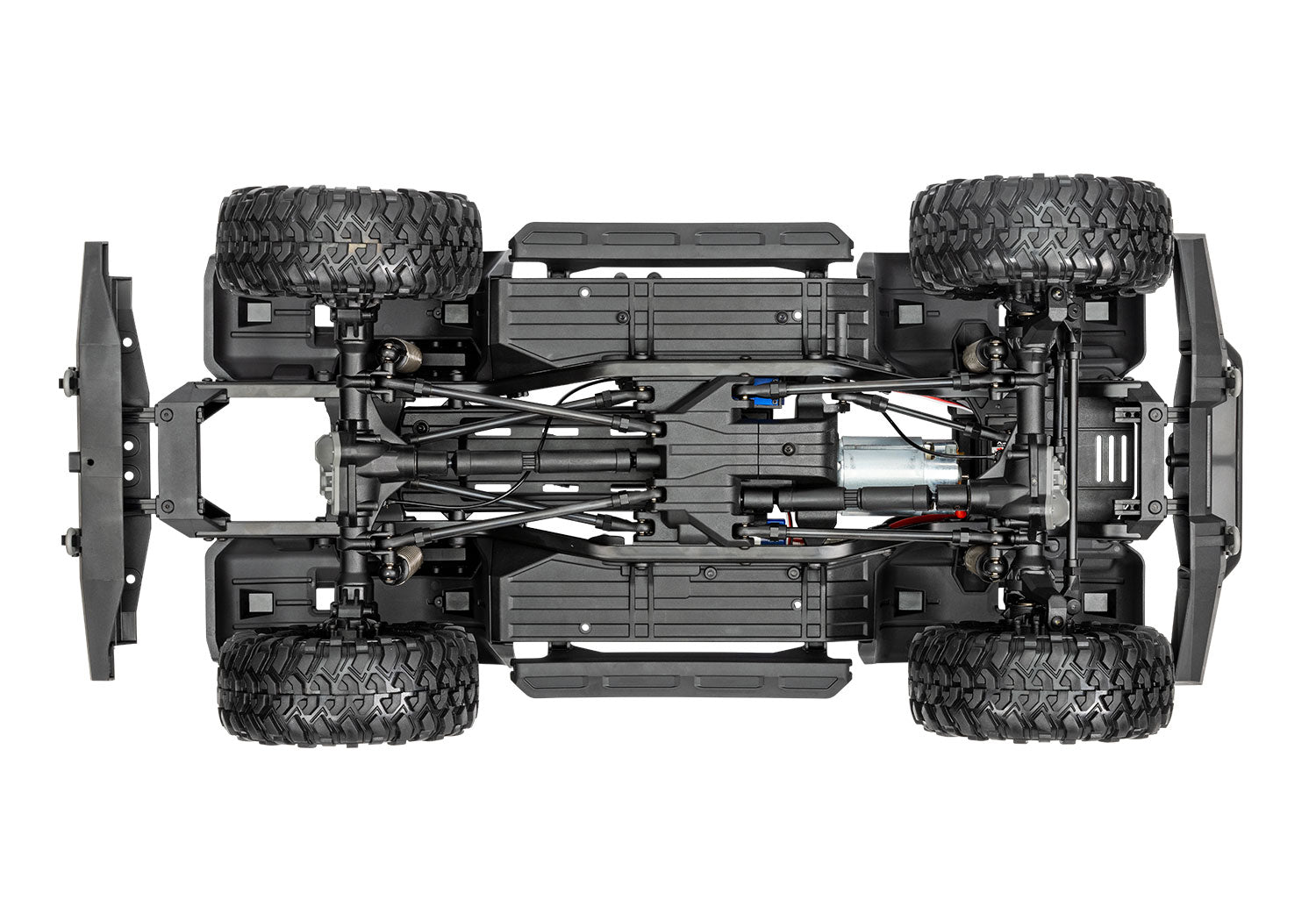

⚙️ Presentation of the Traxxas TRX-4 Chassis Kit Clipless
The Traxxas TRX-4 KIT Clipless 82216-4 is a do-it-yourself off-road vehicleperfect for those who want to discover the pleasure of building their own crawler RC. With full electronics 100% waterproof supplied, all you have to do is choose your favorite body and you're ready to roll. Each part is carefully organized, and the illustrated guide makes assembly accessible and entertaining!

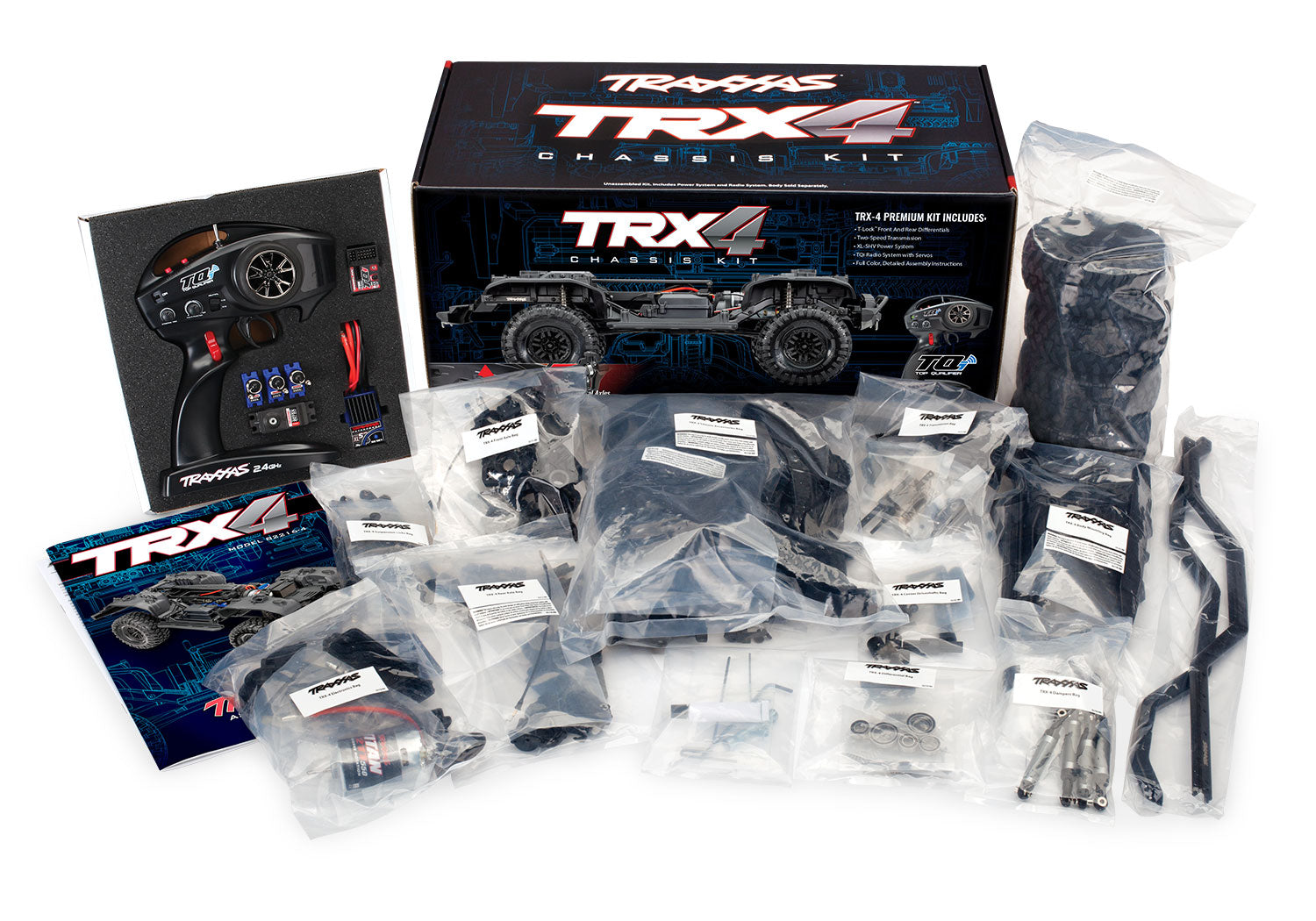

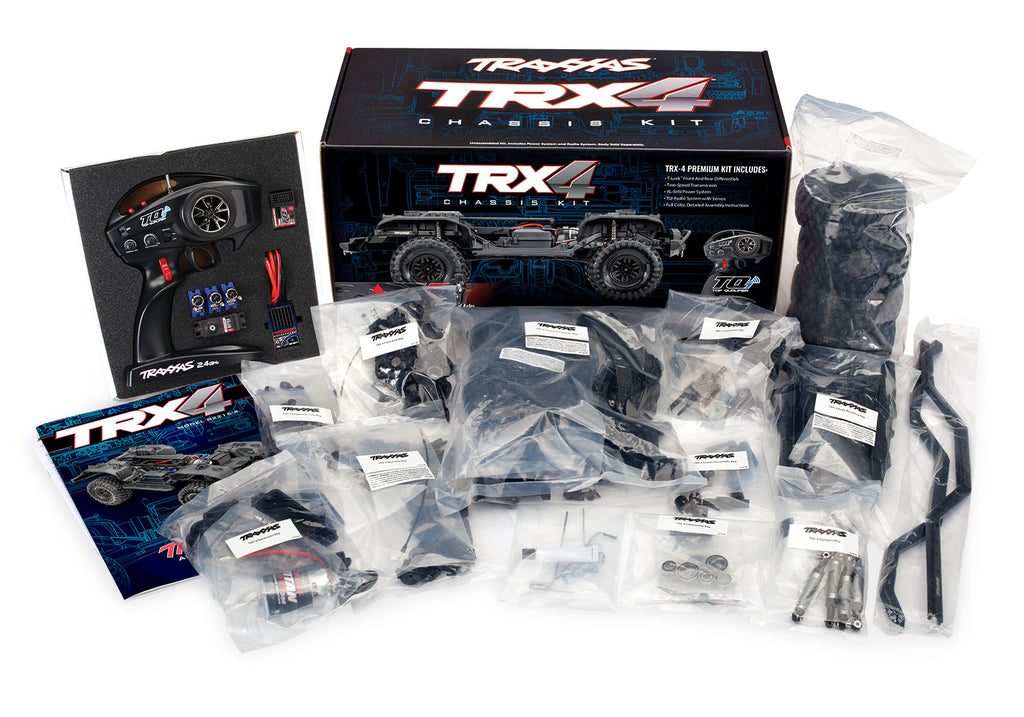

- Complete assembly kit including waterproof electronics
- Easy-to-follow illustrated assembly guide
- Version Clipless with body support without clips
🧩 Technical data
- 4x4 cardan drive
- Revolutionary gantry cranes Traxxas for improved ground clearance
- Remote locking front and rear differentials
- Transmission with 2 speeds (high/low)remote control
- Rigid steel frameultra-sturdy
- Exceptional 45° turning angle and 63.82° angle of attack
- Tires Canyon Trail mounted on 1.9 chrome wheels
- GTS aluminum shock absorbersadjustable, high-performance
- Sealed bearings for increased durability

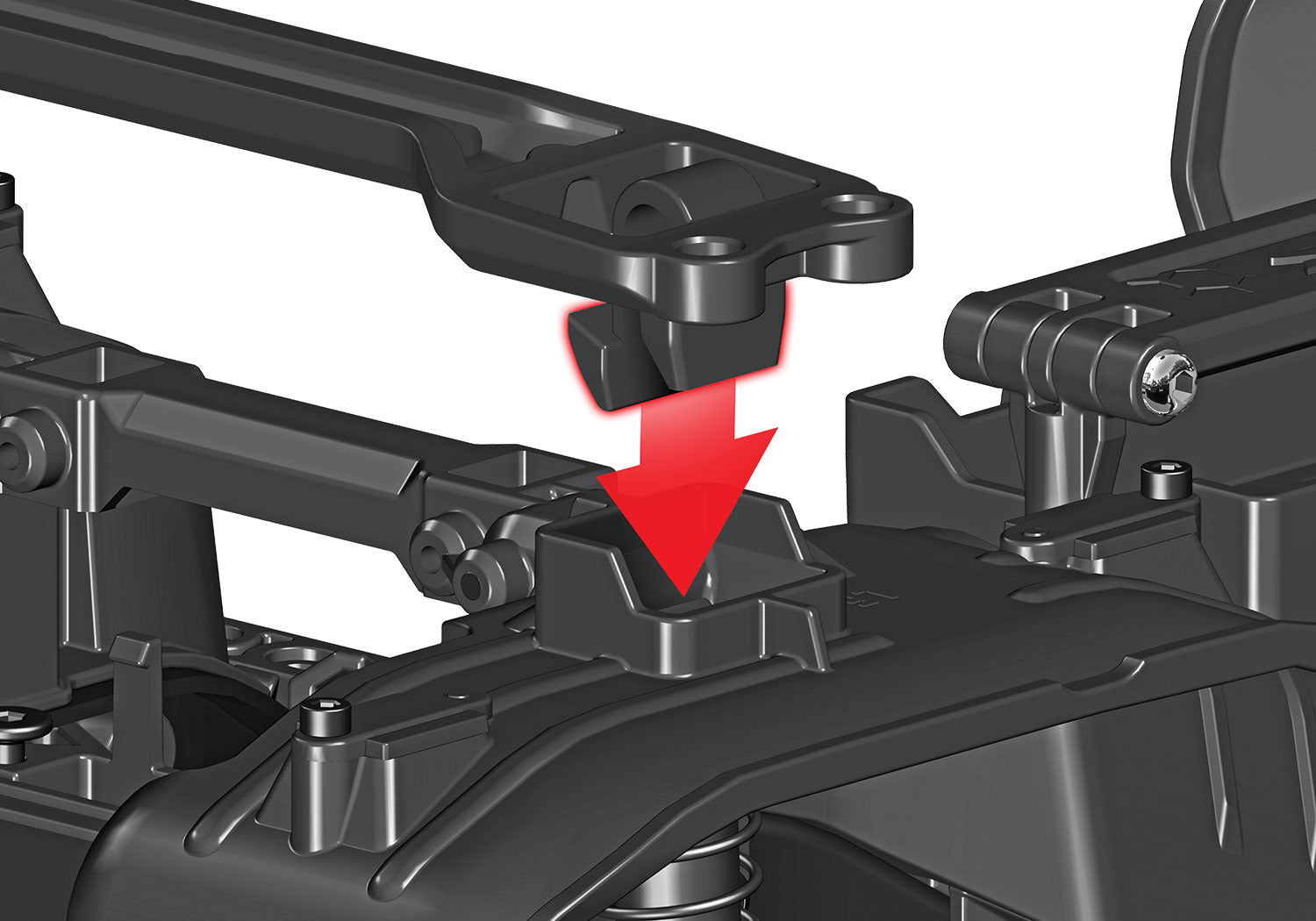

- Body support Clipless without clipsfor fast, attractive installation
📏 TRX-4 dimensions
- Length : 523 mm
- Width : 249 mm
- Height : 266 mm
- Wheelbase : 312 mm
- Ground clearance : 80 mm
- Tires : 118 x 48 mm
- Weight : 2.91 kg
⚡ Electronics included
- Steering wheel radio Traxxas 4-channel TQi (2.4 GHz)
- 2075X steering servo with metal gears
- 3 servos 2065 dedicated to transmission
- ESC XL-5 HV 100A waterproof LiPo 3S compatible with profiles Trail and Crawler
- Motor Titan 21T 550 (16.8 V)
- Autonomy up to 2h with LiPo 3S 5000 mAh battery (not included)
❗ Components required
- Body Traxxas TRX-4 (312 mm) bracket compatible Clipless

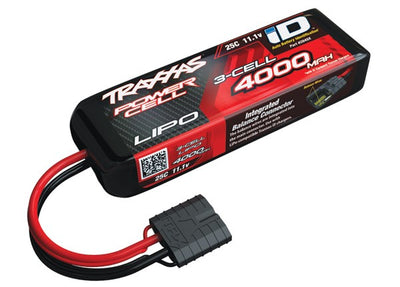

- Battery and charger compatible Traxxas ID (LiPo or NiMH)
- 4 AA (LR6) batteries for radio
🎯 Target
Ideal for beginners and experienced pilotsThis kit is perfect for those who want to assemble their own RC vehicle while enjoying the TRX-4's renowned performance on the most demanding terrain.
