Synchronous and Asynchronous Charging Modes
The ToolkitRC M6D charger is capable of charging two batteries in synchronous or asynchronous mode. In synchronous mode , both batteries are charged at the same intensity, allowing the charger to deliver a maximum charging current of 25A. In asynchronous mode , each battery is charged individually, with a maximum current of 15A.
ToolkitRC M6D Duo Main Features:
The M6D charger offers a maximum charging power of 500W and a charging current of 25A . It also offers a maximum discharge power of 250W . It has a multilingual user interface with voice output, which can be updated via USB. It also has various safety controls. 7-28v DC power supply
ToolkitRC M6D Duo Technical Specifications:
- Input voltage: DC 7-28V, max. 30A
- Charging power: 0.1-15A, 250W x2 (Asynchronous Mode) 0.1-25A, 500W (Synchronous Mode)
- Discharge power: 0.1-15A, 250W x2 (Recycling Mode) 0.1-3A, 12W x2 (Normal Mode)
- Charging accuracy: <0.005V USB C: 2.1A, 5V (or upgrade)
- Balancing current: 800mA, 2-6S
- LiPo/LiFe/LiIon/LiHV cells: 1-6S
- Cells: NiMH/NiCd: 1-16S
- Pb battery voltage: 1-10S
- Voltage: 1.0V-5.0V, 1-6S
- Display: IPS 2.4'' 320x240px LCD
- Dimensions: 98x68x35mm
- Weight: 220g

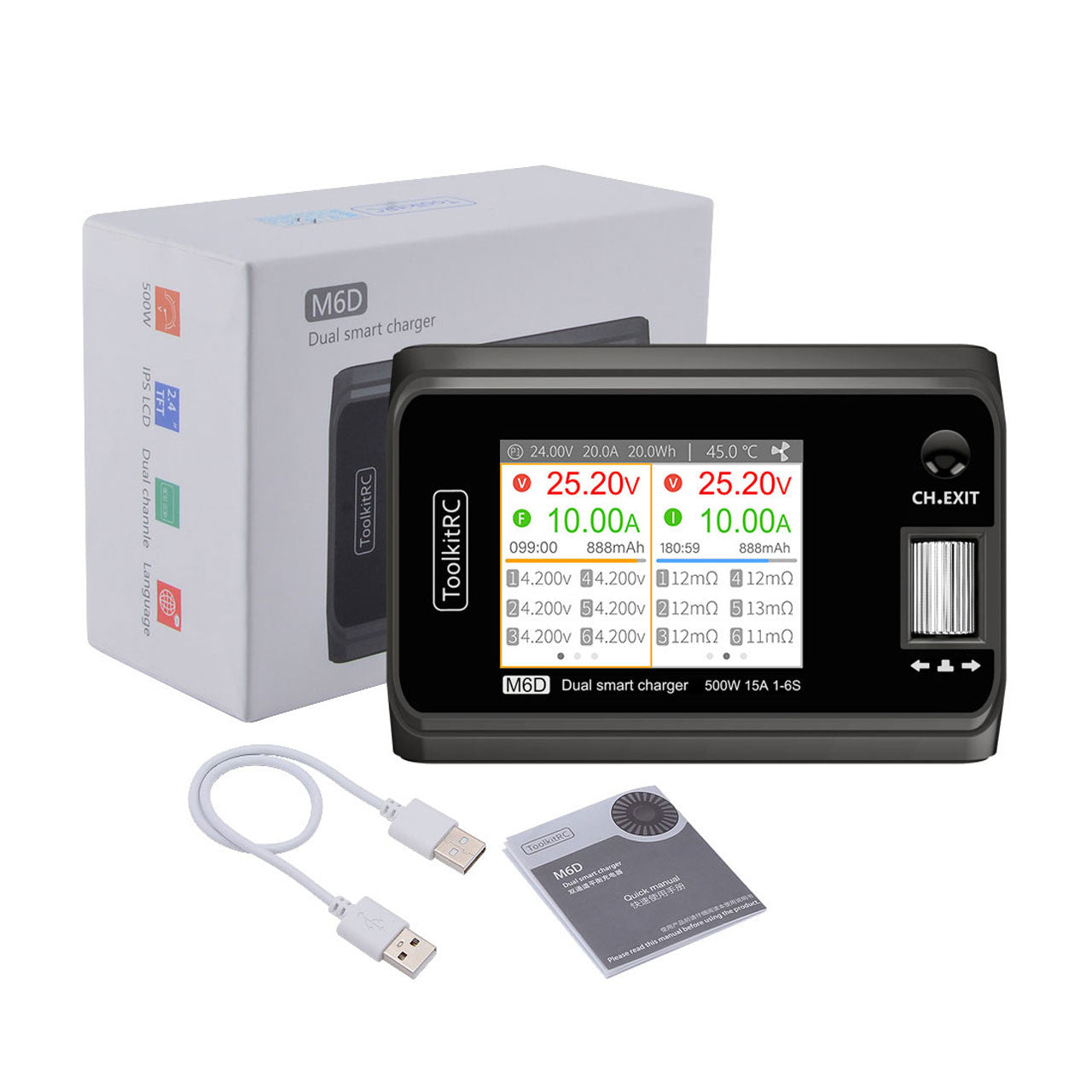

ToolkitRC M6D Duo Included:
- MD6AC charger
- USB cable - USB-C
- Screen protector
- Manual
ToolkitRC M6D Duo Necessary not included:
- 220v power supply
- Charging cords for batteries
