Tamiya Chassis M-08 Concept – Presentation:
- The Tamiya M-Chassis platform has existed since the early 1990s. Now in its 7th generation, the Concept M-07 is a significant evolution of its predecessors.
- A revolution in the M-Chassis lineage! This new model marks a break with all the “M” chassis that preceded it. It benefits from the technological contribution of other types of modern chassis in the Tamiya range. Emphasis was placed not only on performance but also on ease of maintenance and adjustments. A new experience offered to demanding pilots, with the minimum of constraints!
Tamiya Chassis M-08 Concept - Technical Characteristics:
- New rear-wheel drive M-Chassis. Sold without motor, variator, bodywork, RC equipment, tires, inserts
- New supporting structure with integrated upper elements, offering optimal rigidity and facilitating access to various equipment.

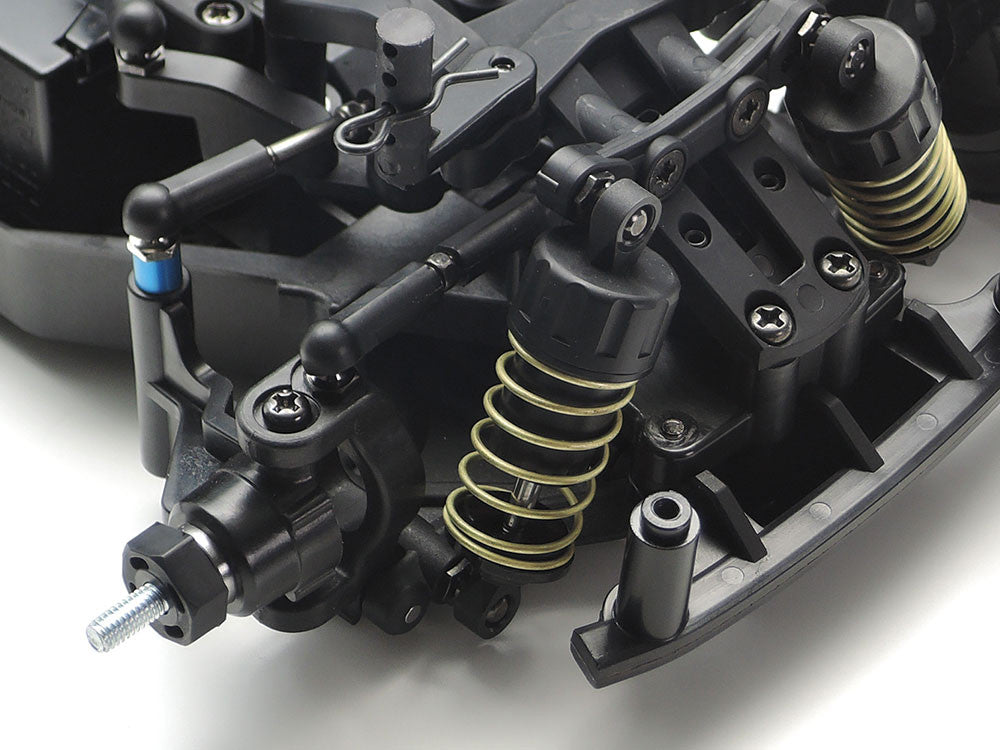

- New zero degree front suspension mount
- New two-degree knuckles
- Transmission to the front wheels entirely on ball bearings.
- Three possible wheelbases (210, 225 and 239mm) by simply changing the orientation of the rear triangles.
- Suspension with independent wheels and double wishbones.
- Extended front and rear wishbones and long tie rods.
- Servo saver with high torque
- Four hydraulic shock absorbers.
- TA06 type pinion differential associated with constant velocity universal joints.
- Easy access to stabilizer bars (available separately) for quick and precise adjustments on the track.
- Excellent reproduction (“feedback”) of driving sensations allowing the driver to identify and make the necessary adjustments.
- Compatible with most M-Chassis bodies.
- Compatible with low-profile servos.
Tamiya Chassis M-08 Concept - Required to start: (not included)
- Requires body, motor, variator, RC equipment, tires, inserts, battery pack and charger (not included).
