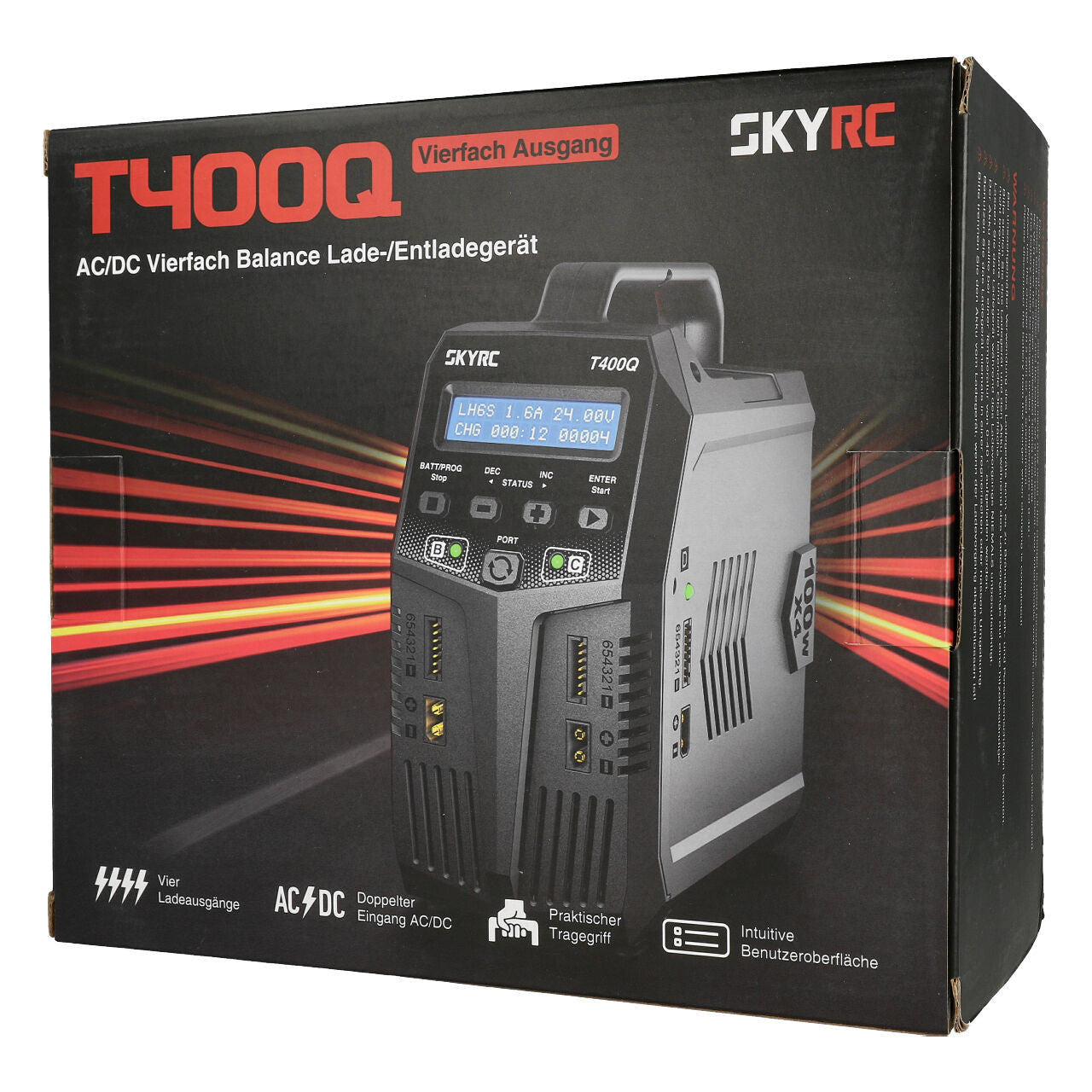

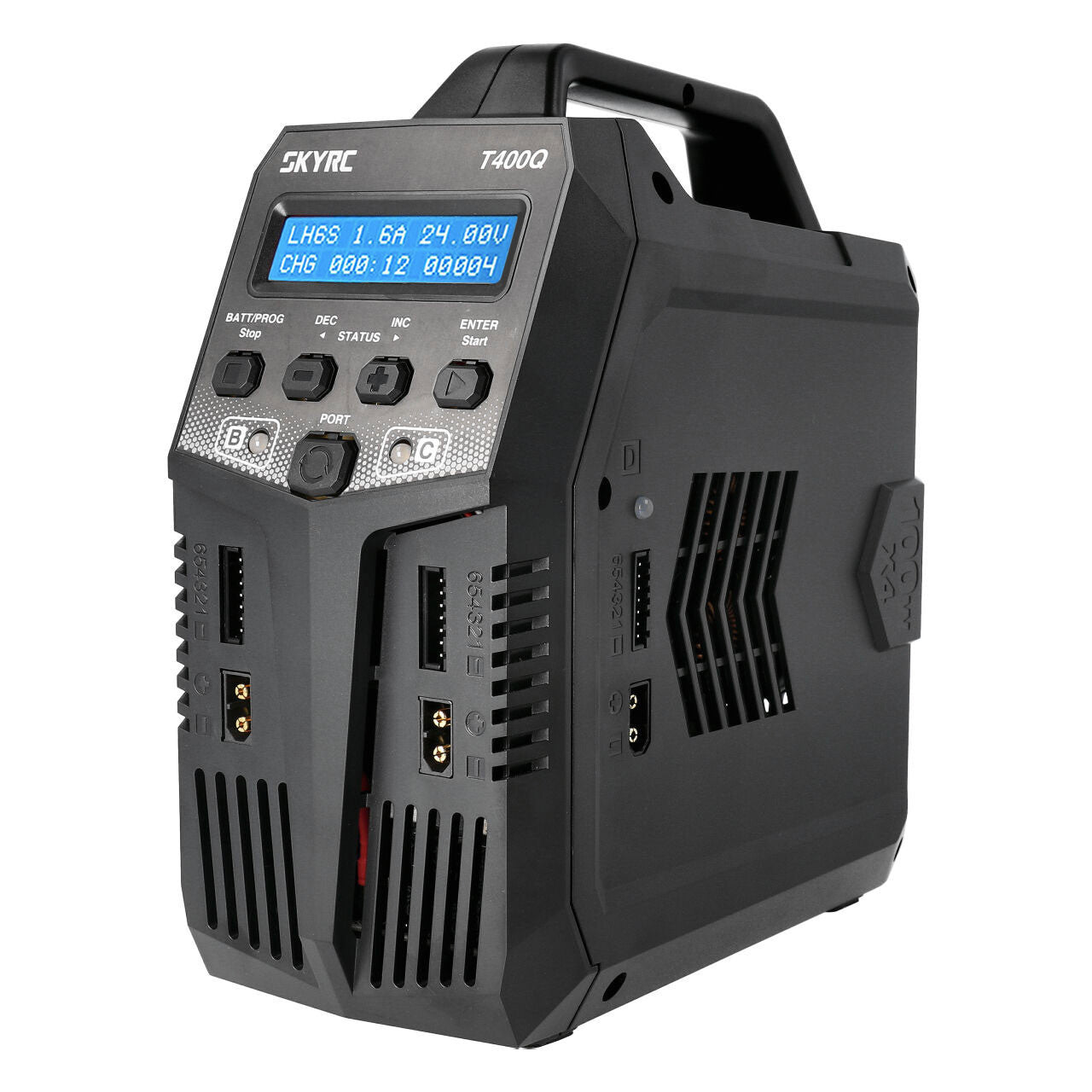

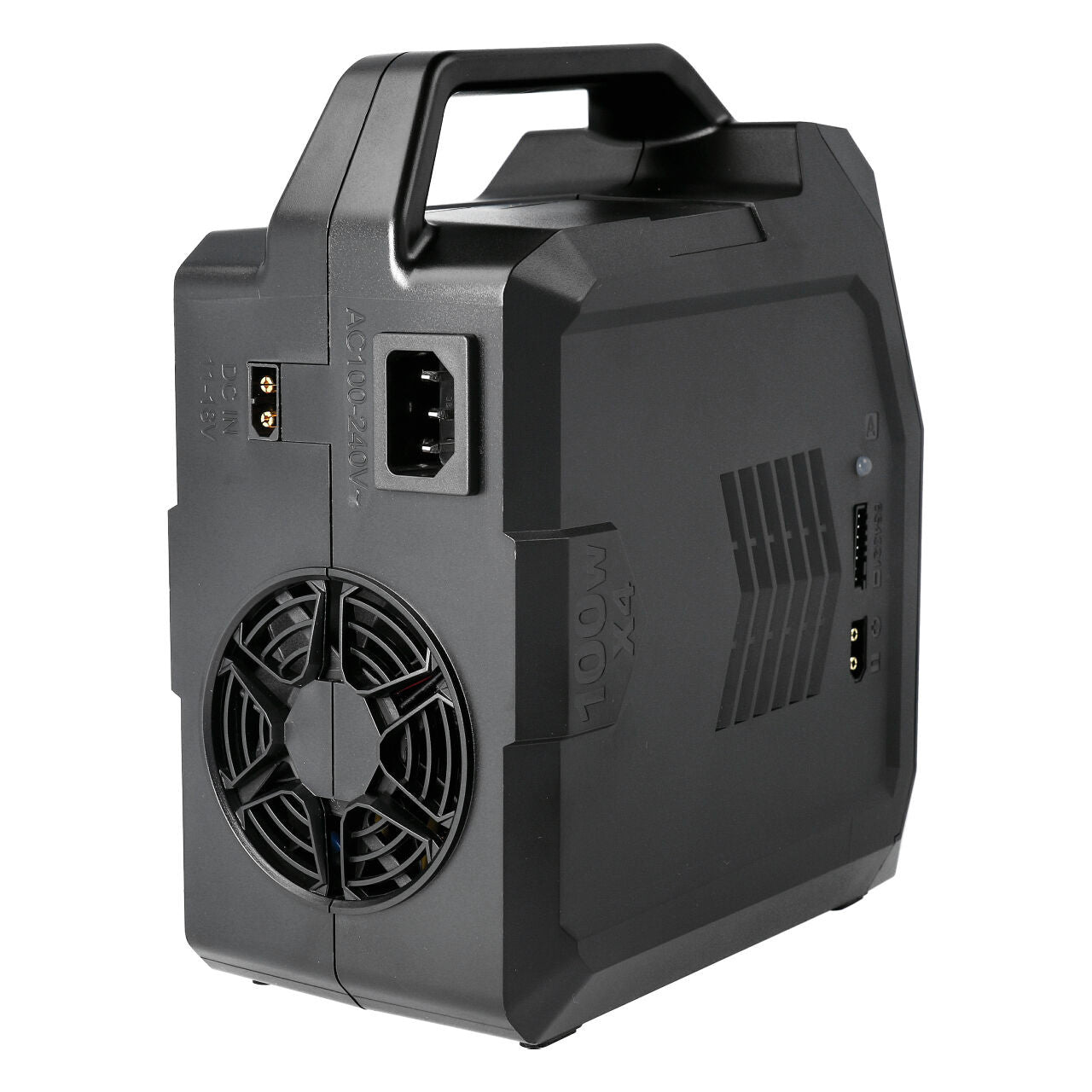

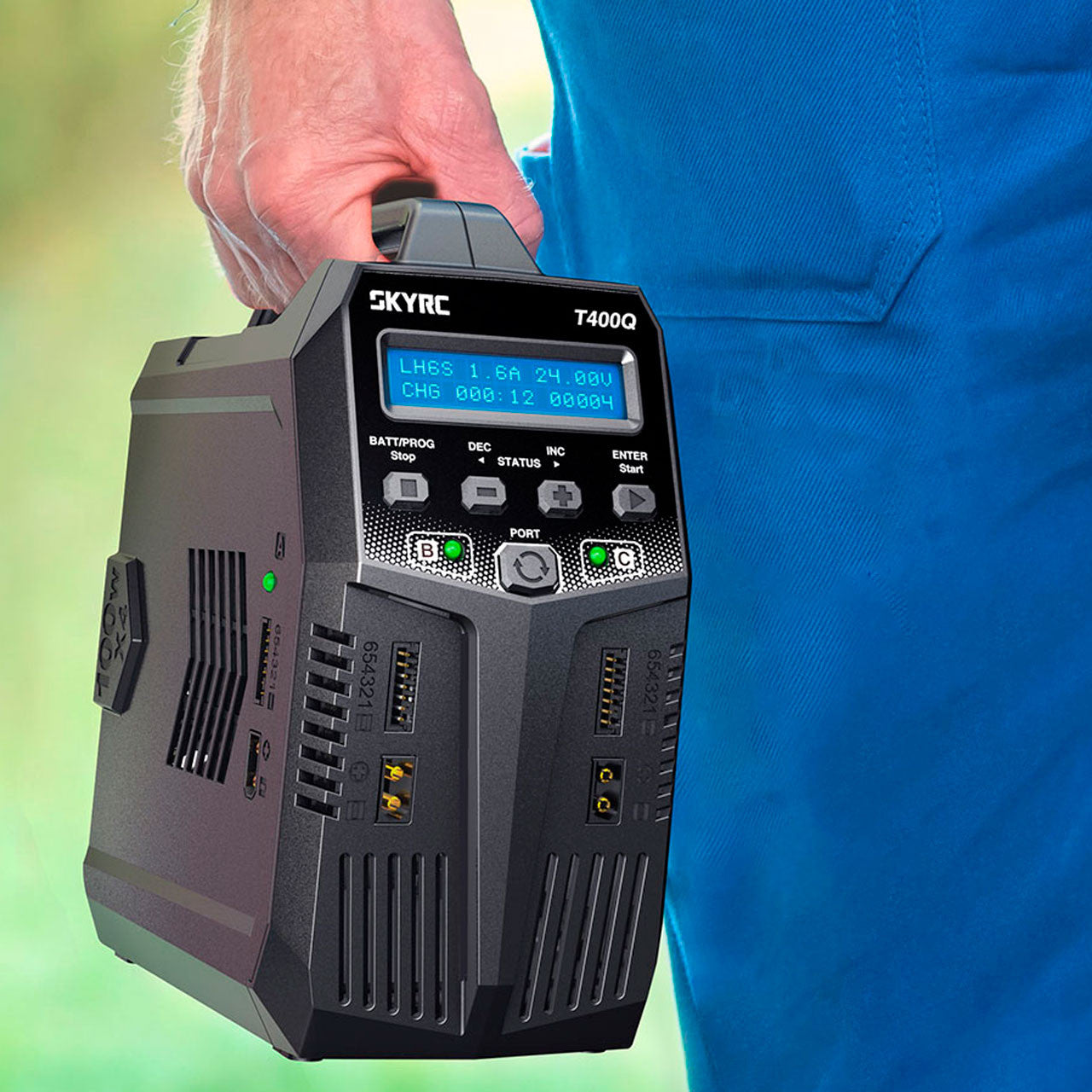

Presentation of the T400 Quattro 4x100W AC/DC charger SK100189-01
Unlike other devices in the SkyRC T series, the T400Q has optimized software that equips the charger with a so-called “AUTO” function. This automatically adjusts the current during charging or discharging. Especially with lithium batteries, the charger can effectively prevent overcharging, which could even lead to explosion if used incorrectly. It can disconnect the battery from the circuit by itself and also trigger an alarm if a malfunction is detected.
The SkyRC T400Q offers all the usual charging and discharging modes such as: charging, balanced charging, fast charging, storage and discharging.
Characteristics of the T400 Quattro 4x100W AC/DC charger SK100189-01
Features
- 4 independent charging channels
- Charging power 4x 100W and maximum charging current 12A
- 10 profile memories
- High contrast LCD screen
- AGM and Pb Cold Charge mode
- Simple use and menu navigation
- XT-60 connectors on charging outputs
- XH Balance Connector
- Various security checks
Technical characteristics
- Charging power: 4x100w
- Charging current: 0.1A to 12A
- Discharge current: 0.1A to 2A
- Balancing power: 500mA
- Number of LiPo/LiFe/LiIon/LiHV cells: 1 to 6S
- NiMH/NiCd cell number: 1 to 15S
- Mass: 1951 g
- Dimensions: 186×103×209 mm
Included
- SKYRC T400 Duo Charger
- AC power cord
- Manual
