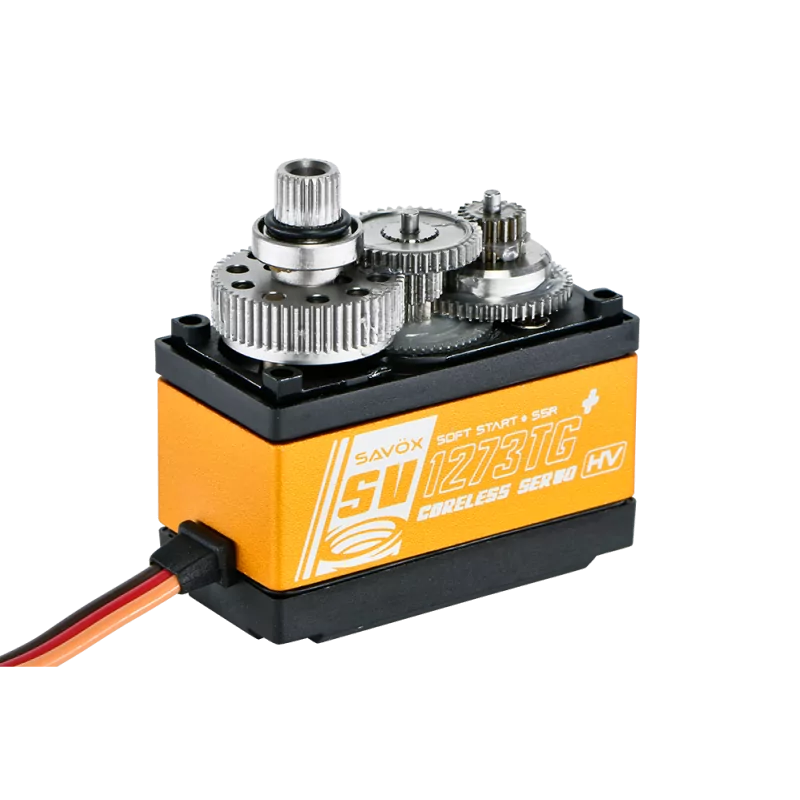

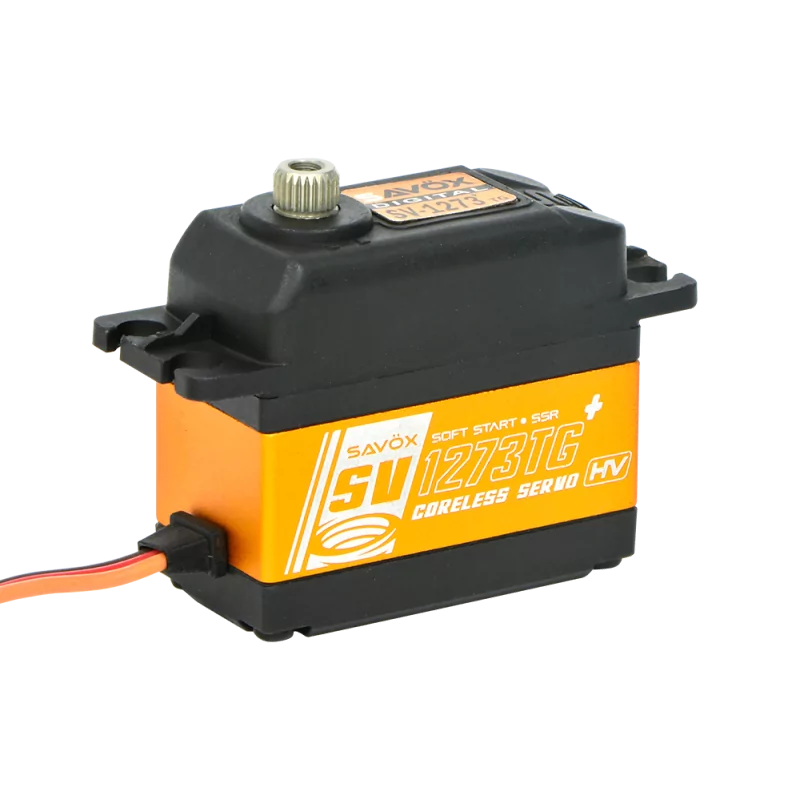

The SAVÖX SV-1273TG+ servo is a standard high-voltage (HV) servo offering an excellent compromise between high torque, fast speed, and reliability. Compatible with 6.0 to 8.4V, it delivers up to 20 kg.cm at 7.4V with a speed of 0.065 s/60°, thanks to its coreless motor and titanium gear train. Ideal for high-performance RC cars requiring precision and endurance.
⚙️ Technical specifications
- Model: SAVÖX SV-1273TG+
- Type: digital standard HV servo
- Operating voltage: 6.0–8.4 V
- Torque: 14 kg.cm at 6.0 V / 20 kg.cm at 7.4 V / 25 kg.cm at 8.4 V
- Speed: 0.08 s/60° at 6.0 V / 0.065 s/60° at 7.4 V / 0.07 s/60° at 8.4 V
- Coreless motor
- 12-bit controller
- Titanium gears
- Aluminum/composite hybrid housing
- Double ball bearings
- Water resistant
- Operating angle: 100°
- Gear output: 25T (Futaba compatible)
- Dimensions: 40.3 × 20.2 × 37.2 mm
- Weight: 64 g
- JR connector
🧩 Contents
- 1 × SAVÖX SV-1273TG+ servo
- Standard rudder bar
- Mounting hardware
🎯 Who is it for?
- Drivers looking for a fast and powerful servo
- For use in 1/10 RC cars On-road, drift, rally, short course
- Models powered by 7.4V via BEC HV
- High-end replacement for a standard servo
🔄 Compatibility
- 1/10 RC cars
- Compatible radios JR / Futaba 25T
- NiMH, LiPo 2S or BEC HV power supply
