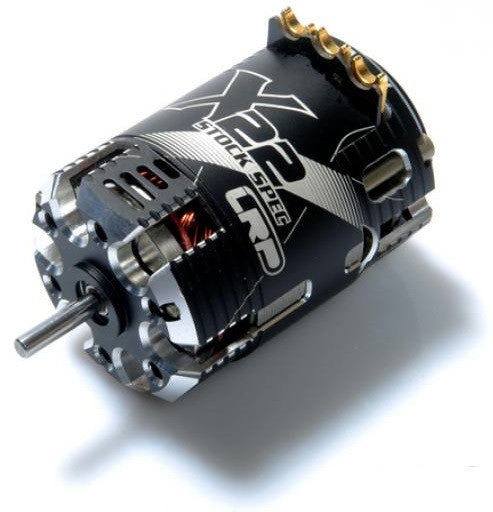

LRP X22 Brushless Motor Stock Spec – Overview:
- The new ultra-light X22 aluminum housing, its precision-machined 7075-T6 now has maximized cutouts with additional openings on the flat parts to increase cooling surface area and improve airflow for lower operating temperatures as well at maximum loads with increased consistency. A beautiful high quality "dark shine black" anodizing with X22 engraving will make it the perfect look equipment on any 1/10 chassis model.
- Also new is the 2017 specification, a dual-axis balanced sintered rotor shaft with a longer mounting surface. The interior has been significantly modified for optimal efficiency and vibration-free operation. Combined with smaller ABEC-5 4x10x4 bearings for precise racing and increased longevity. The new specifications of multi-layer PCB have even lower resistance. LRP's unique waterproof PreciSensor™ system ensures precise operation combined with any speed controller and with added benefit when paired with the LRP variable speed drive.
- New Air Ventilation - Increased cooling surface area and openings for maximum heat dissipation, airflow and lightweight design.
- Competition use - Premium materials for the most efficient power flow and improved driving feel.
- X22 Rotor Specification - Highest quality magnet with new shaft preparation for maximum performance, strength and reliability.
- Black anodizing, military quality!
- New aluminum engine plate
- Dual-axis balanced rotor
- Waterproof sensor system
- 7075-T6 machined engine cage
- Improved efficiency and power delivery
- ABEC-3 bearing 3x10x4
- Fixed Timing adjustable from 0 to 60°
LRP X22 Brushless Motor Stock Spec - Technical Specifications:
- Sensored Brushless Motor
- Number of Poles: 2
- Input voltage: 1S-2S Lipo
- Winding: Star (multi copper)
- Motor diameter: 35.9mm
- Length: 52.2mm
- Weight: 149-155g
- Rotor diameter: 12.5mm
