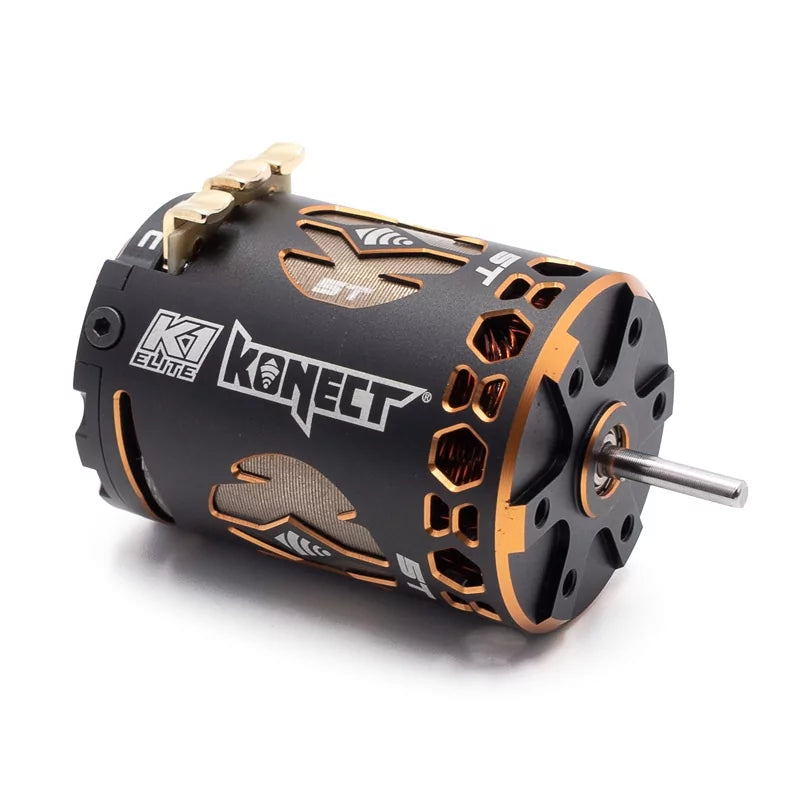

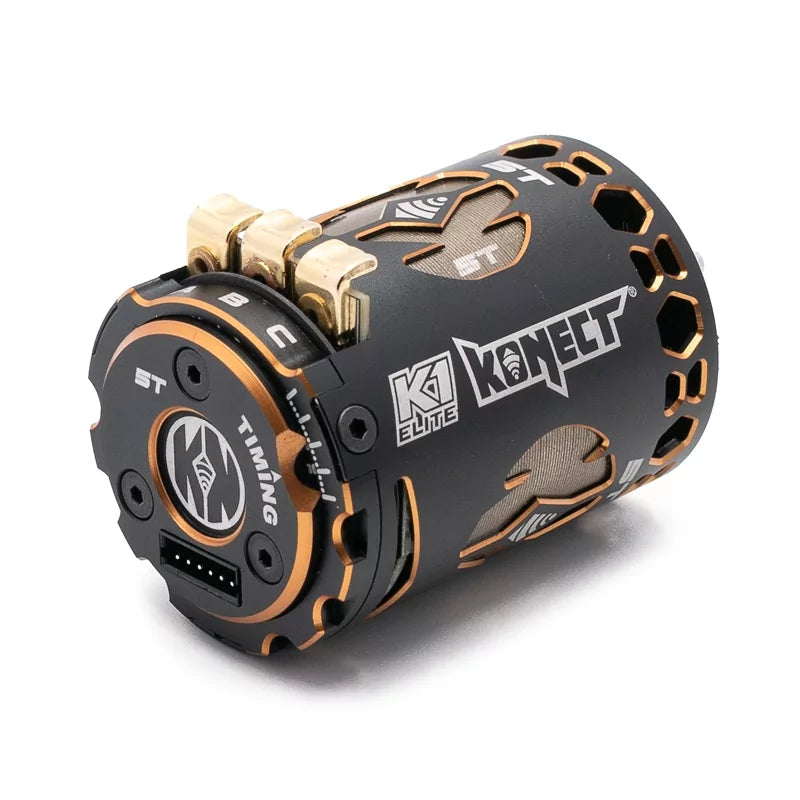

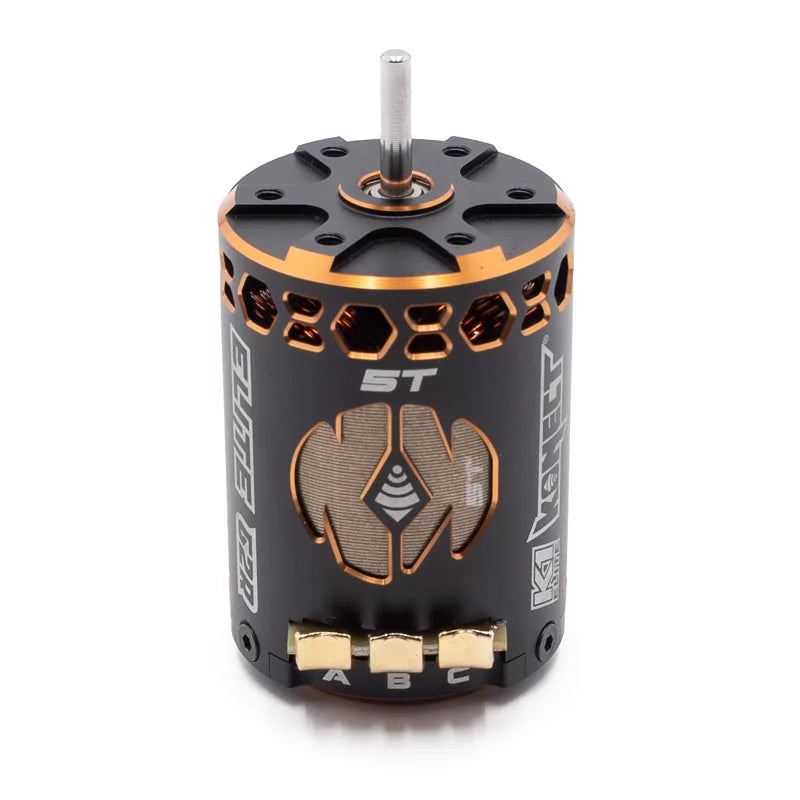

⚡ The K1 Elite G2R features an optimized design with a heat-treated stator, a ventilated CNC-machined aluminum cage, and high-purity copper windings. It ensures efficient heat dissipation, excellent reliability, and precise motor response. Its adjustable timing (20° to 60°) andsensor connector allow for perfect adaptation to all racing setups.
⚙️ Technical Specifications
- Type: Sensored motor (Hall sensor)
- Format: 540 standard competition
- Available versions: 5T / 5.5T / 6.5T / 7.5T / 8.5T / 10.5T / 13.5T / 17.5T
- Application: 1/10 RC On-road and TT racing
- Stator treated for better heat dissipation Nitro
- Ventilated CNC T6 aluminum cage
- High-purity copper windings
- Adjustable timing: 20° to 60°
- Dual sensor terminals (horizontal + vertical)
- 2 poles
- Shaft: 3.175 mm
- Dimensions: 36 x 51.7 mm
- Weight: 155 g
- Rotor: Ø12.5 x 5 mm
📊 Performance by version
- 5T: 115A max / 490W / 6920KV (1-2S LiPo)
- 5.5T: 110A / 460W / 6450KV (1-2S LiPo)
- 6.5T: 102A / 430W / 5600KV (1-2S LiPo)
- 7.5T: 89A / 400W / 5100KV (1-3S LiPo)
- 8.5T: 82A / 380W / 4600KV (1-3S LiPo)
- 10.5T: 74A / 320W / 4100KV (1-3S LiPo)
- 13.5T: 59A / 260W / 3400KV (1-3S LiPo)
- 17.5T: 42A / 200W / 2640KV (1-3S LiPo)

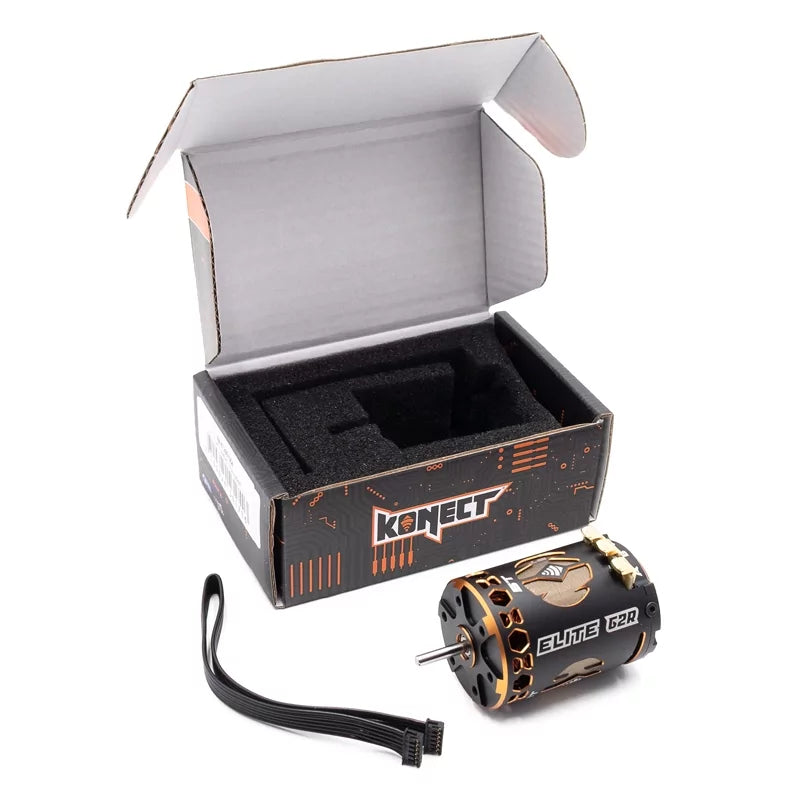

🧩 Contents
- 1 Konect K1 Elite G2R motor (choose your version from 5T to 17.5T)
🎯 Who is it for?
- 1/10 RC racing drivers (On-road and off-road)
- Users looking for a high-performance, reliable motor
- Ideal for modified (5T to 8.5T) and stock (10.5T to 17.5T) classes
- Perfect for optimizing power, efficiency, and driving precision
🔄 Compatibility
- 1/10 RC On-road and competition off-road vehicles
- Compatible with standard sensored ESC brushless
- Works with 1S to 3S LiPo batteries depending on version
