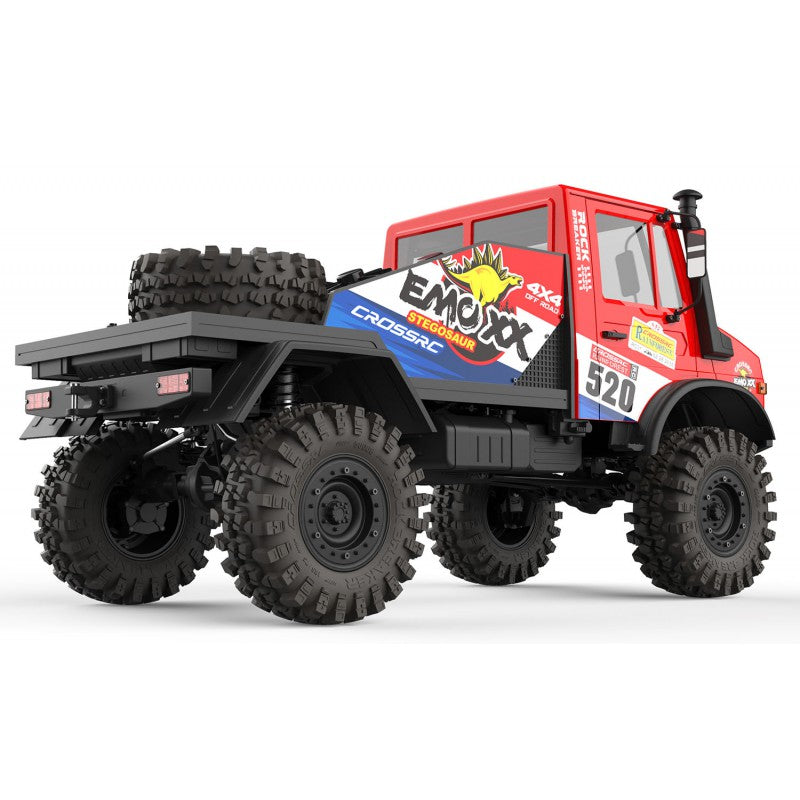

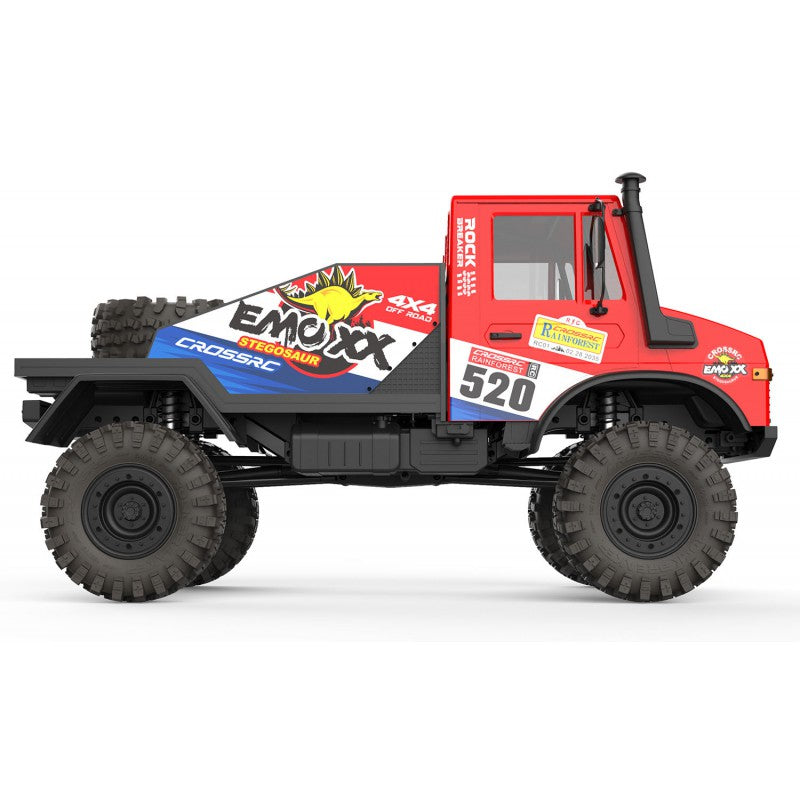

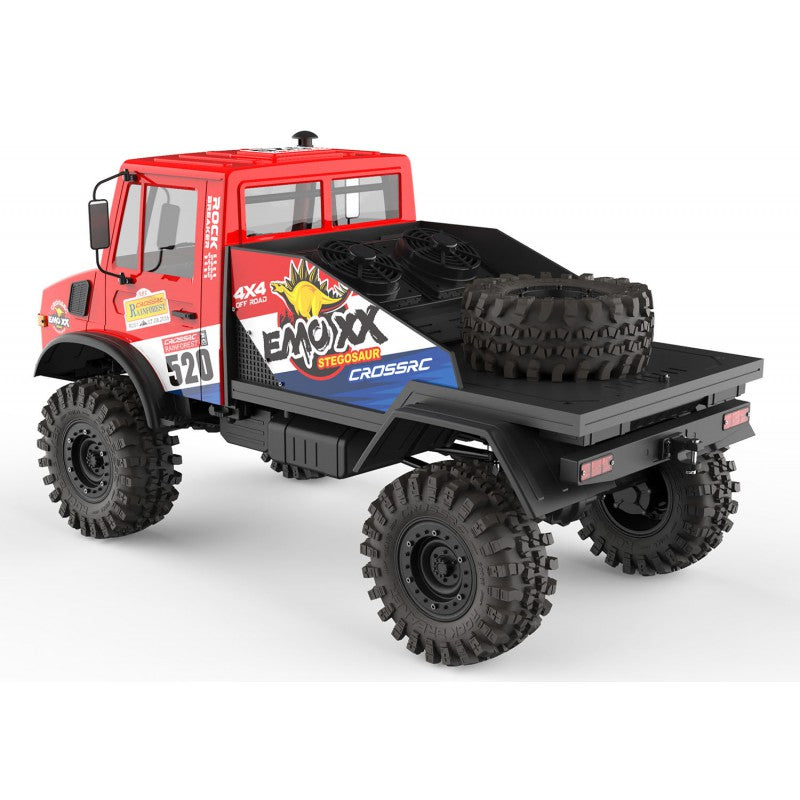

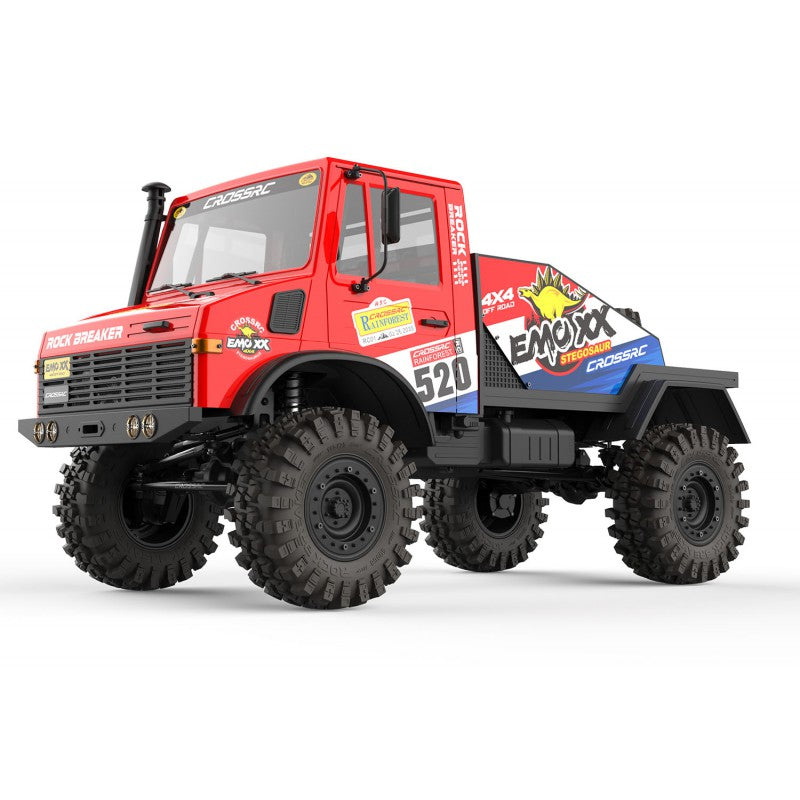

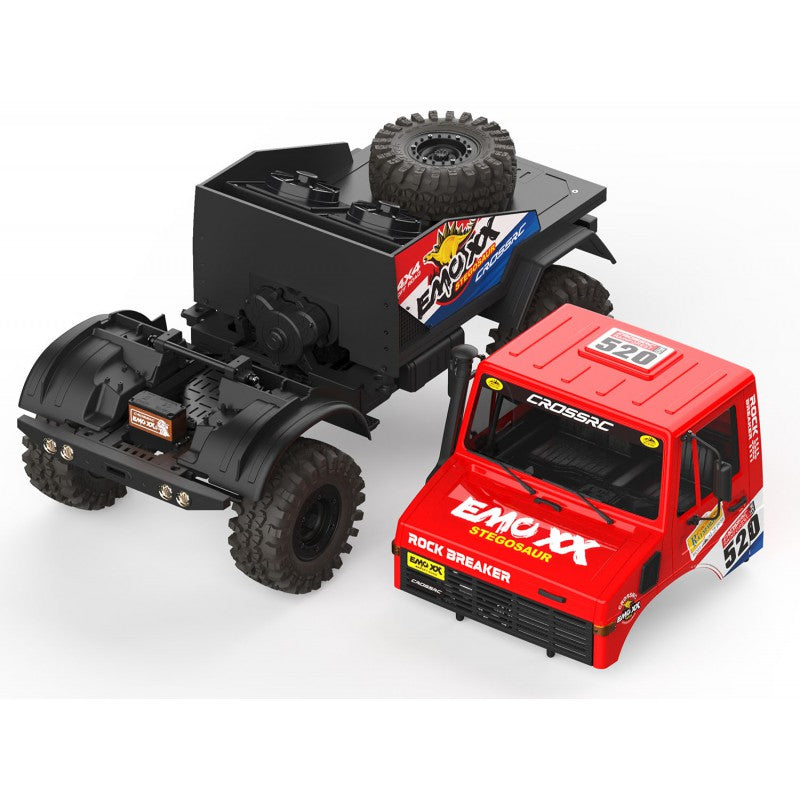

🛻 Enter the realm of giants with the Cross RC EMO XX Stegosaurus 1/6 RTR Brushless – Rally 🏔️. This crawler XXL 4x4 measuring over 80 cm and weighing ~13 kg combines a pressed steel chassis, 3+4 arm suspension, Ø26 mm CNC shock absorbers, and an all-metal 2-speed transmission for formidable off-road capabilities. The Rally version features a Hobbywing 4985 1650KV motor controlled by a 150A ESC (3–6S LiPo), HV servos ( 70 kg + 3×25 kg), powerful LED lighting and MT Rock Breaker tires for extreme traction.
⚙️ Technical specifications
- Scale: 1/6 • Length: > 80 cm • Weight: approx. 13 kg

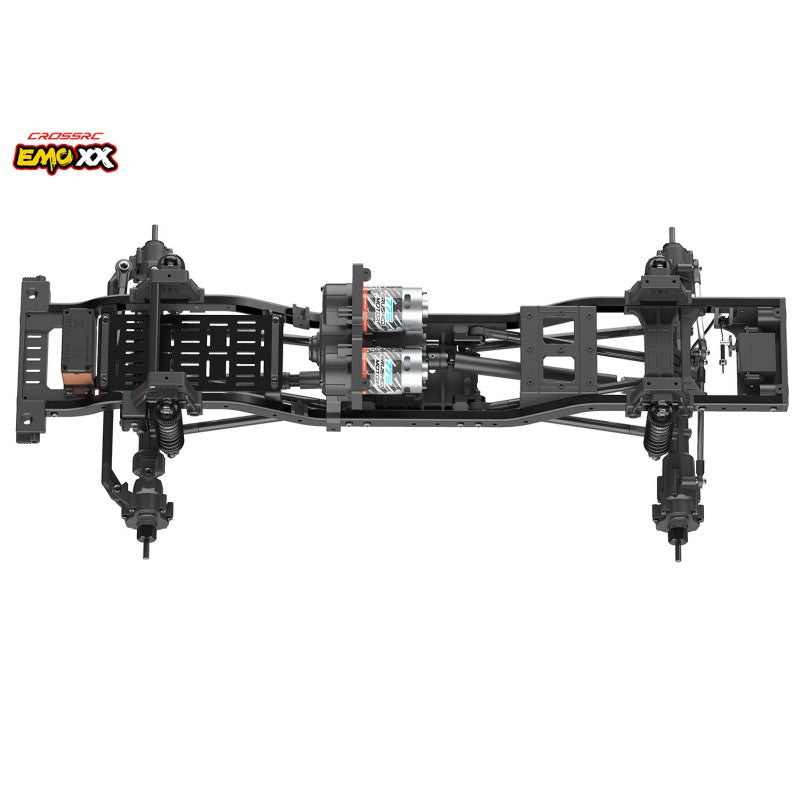

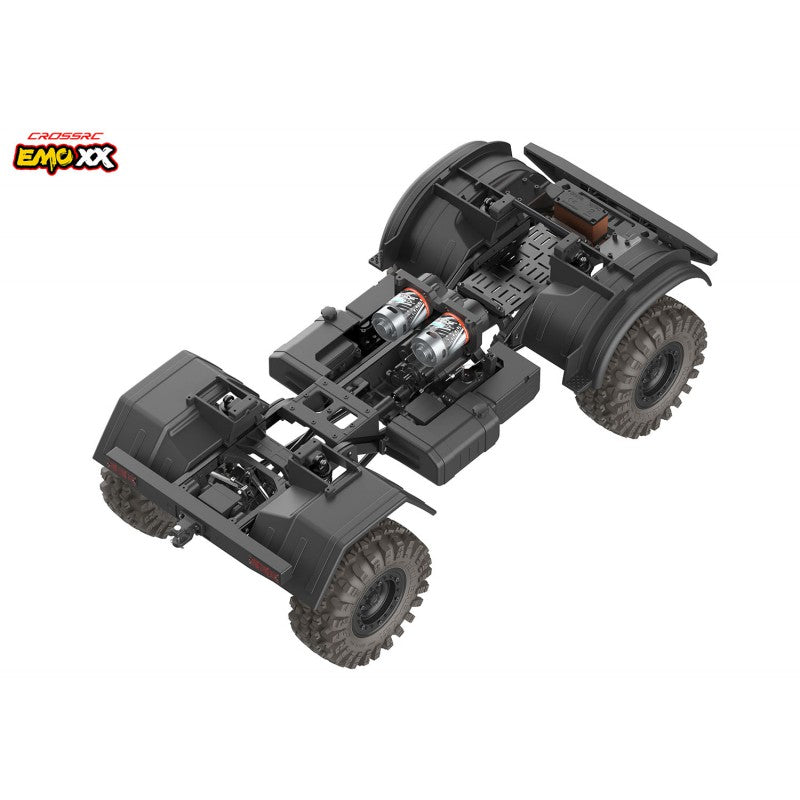

- Chassis: 2 mm stamped steel beam, reinforced nylon connections

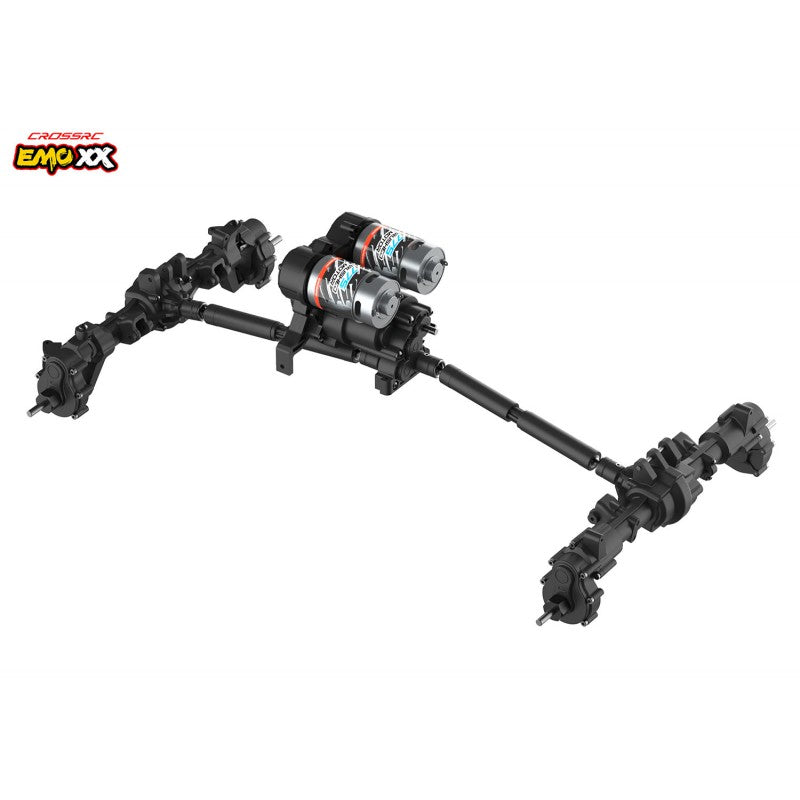

- Transmission: 4x4, all-metal 2-speed gearbox, machined steel gears

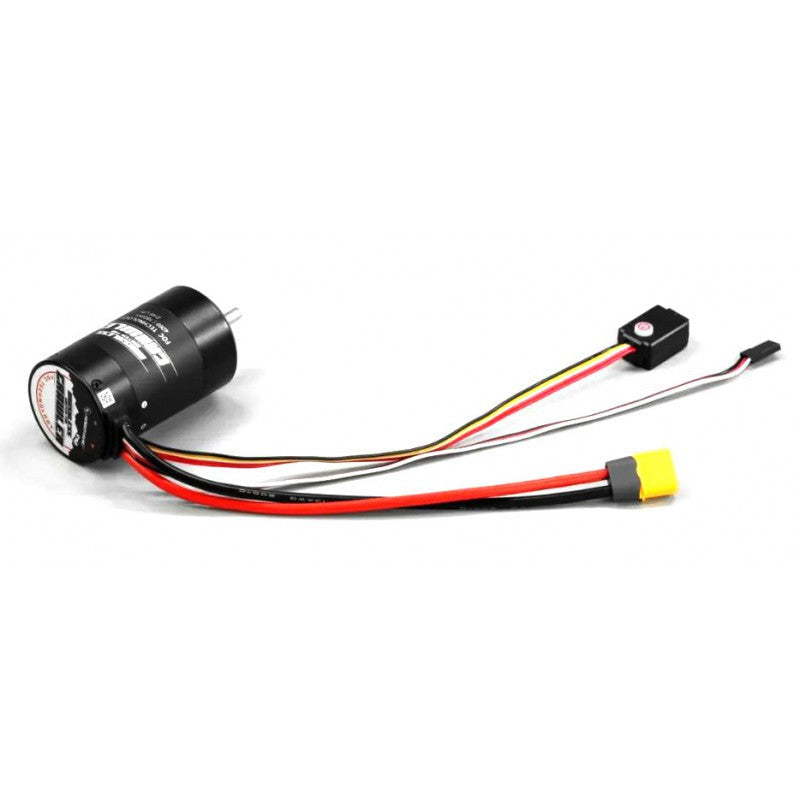

- Motorization (Rally): Hobbywing 4985 1650KV + ESC 150A (LiPo 3–6S)
- HV servos: steering 70 kg + 3×25 kg (anti-lock protection, stroke management)
- Suspension: front 3 arms + Panhard bar, rear 4 arms + balance bar, 10 mm aluminum tie rods
- Shock absorbers: CNC hydraulic Ø26 mm, adjustable preload, 40 mm stroke
- Axles: steel CVD front, rigid rear axle, Ø6 mm half-shafts, Ø8 mm outputs, 17 mm hex
- Wheels/Tires: MT ROCK BREAKER "Rock Roar" ( MARSH RANGER option for mud)
- Bearings: ABEC-3 • Lighting: High-power LED (strobe mode)
- Battery bay: 160 × 80 × 55 mm
🧩 Kit contents
- EMO XX Stegosaurus 1/6 RTR – Rally fully assembled
- Motor Hobbywing 4985 1650KV + ESC 150A installed
- HV 70 kg servo (steering) + 3× HV 25 kg servos
- DumboRC X6 2.4 GHz transmitter (6 channels)
- LED system mounted • MT Rock Breaker tires
- Tools Cross RC CNC (1.5/2.0/2.5 mm), M6 hub wrench, transmitter strap
❗ To be provided
- 3S to 6S LiPo battery (≤ 160 × 80 × 55 mm)
- Compatible LiPo charger
- AA batteries for the transmitter (if necessary)
🎯 Who is it for?
For large-scale crawling enthusiasts looking for realism, torque, and connection speed. The Rally version excels on rocks, dunes, and fast tracks with very high levels of stability and traction.
