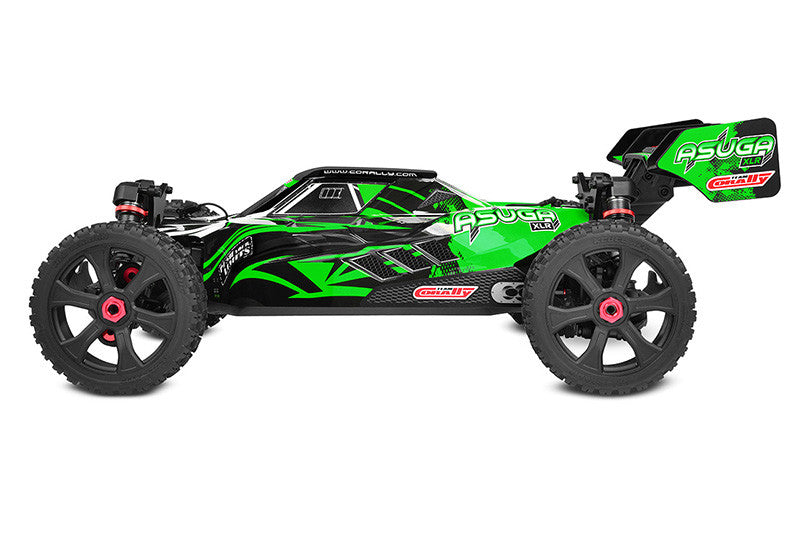

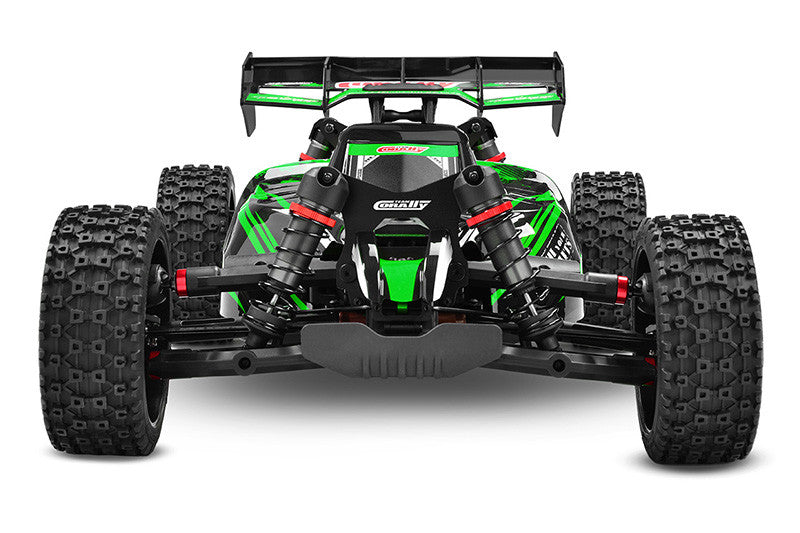

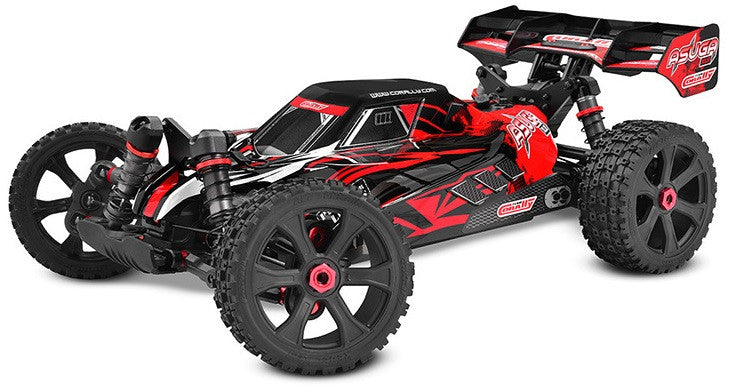

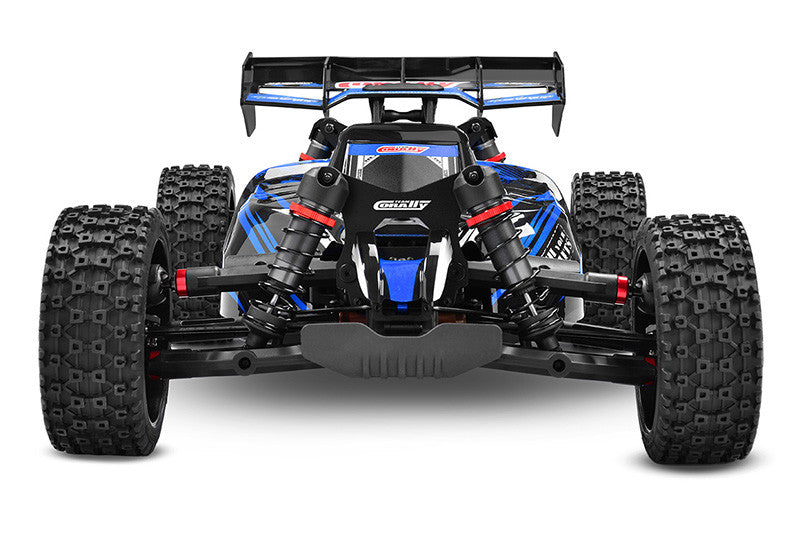

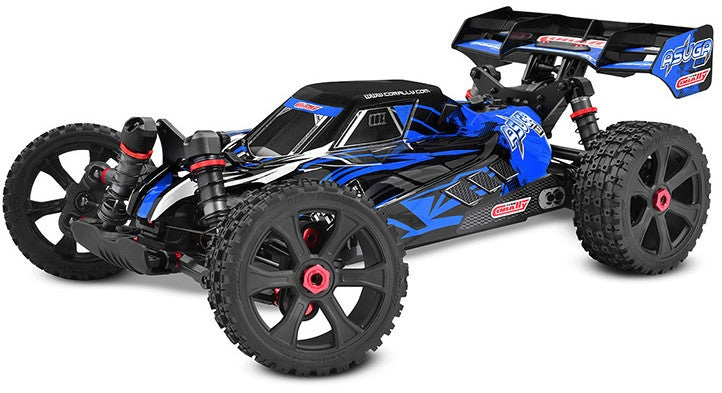

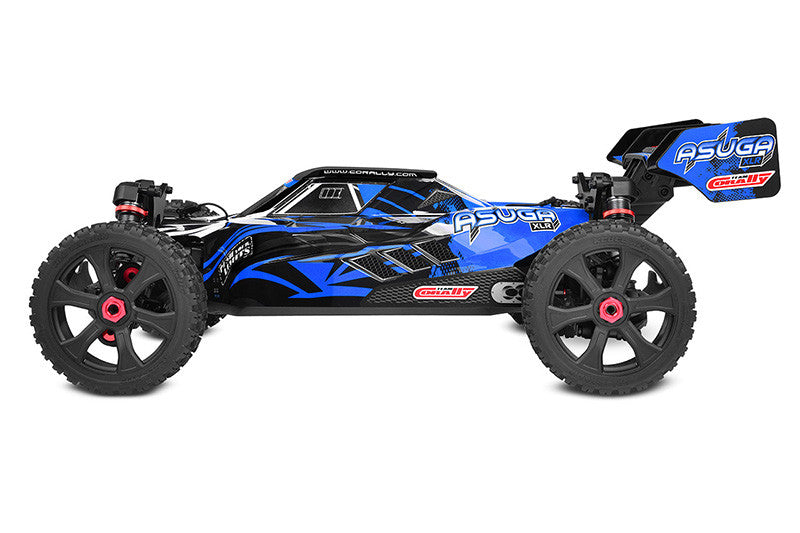

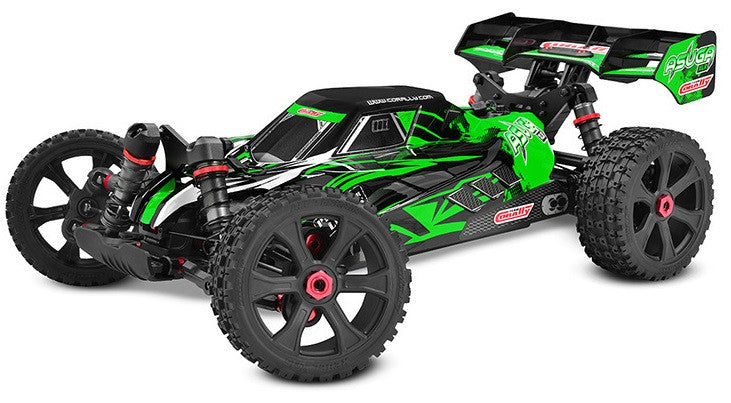

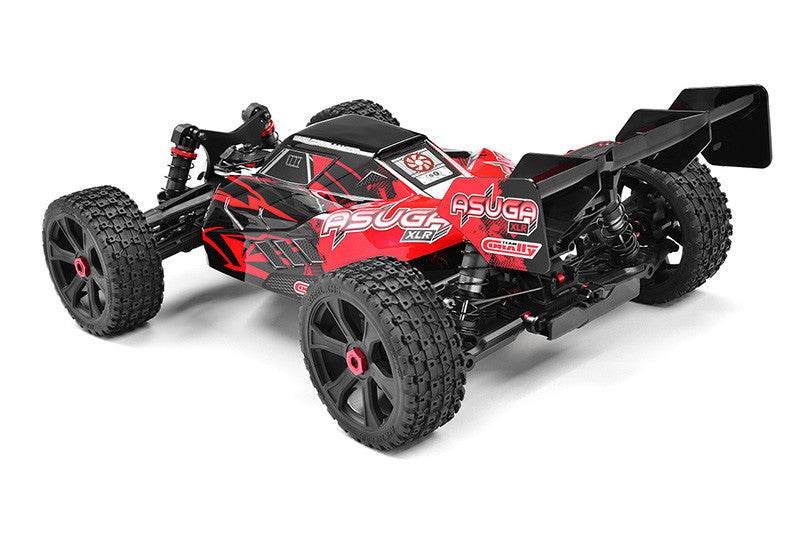

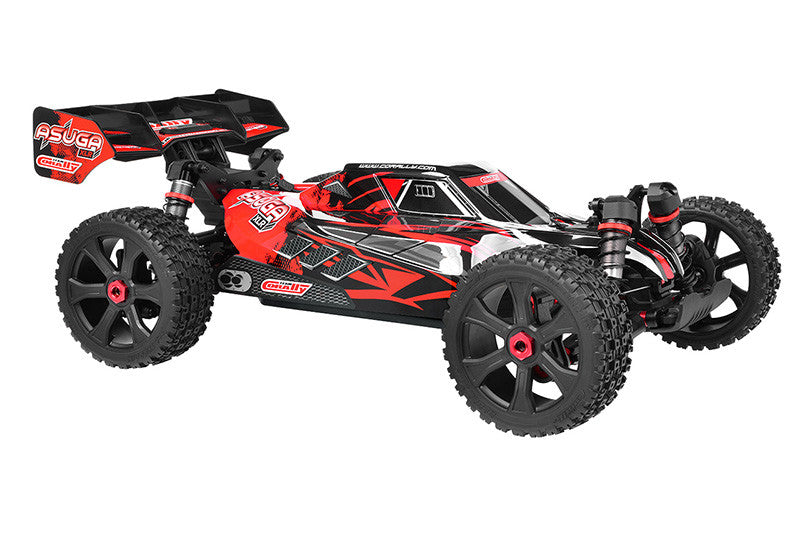

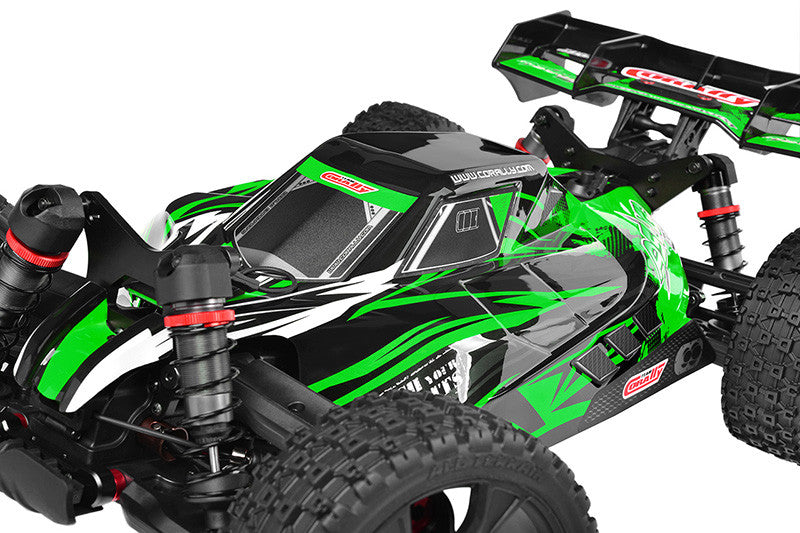

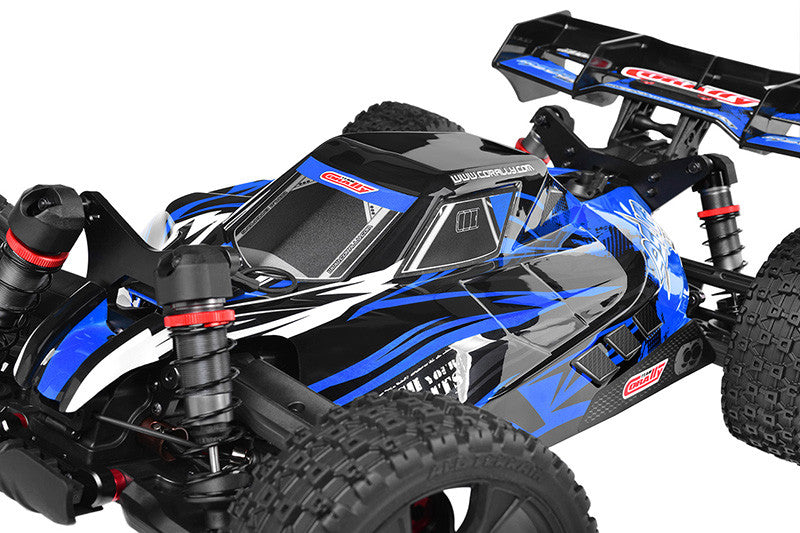

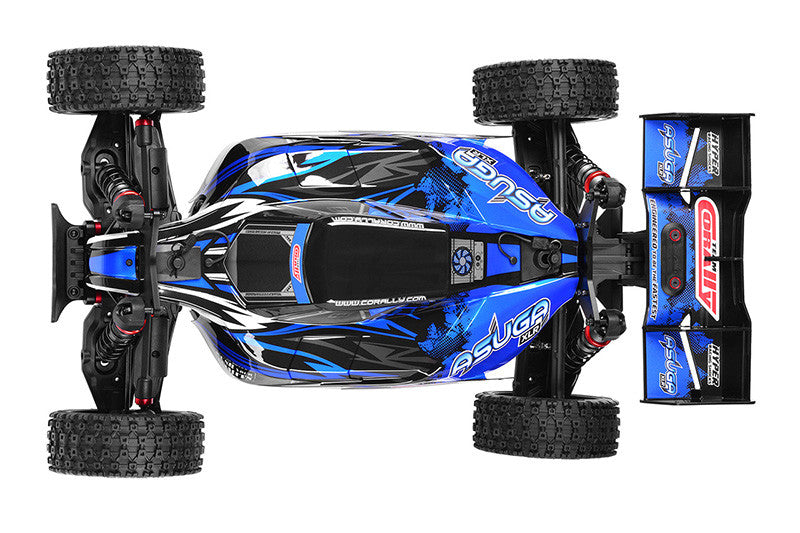

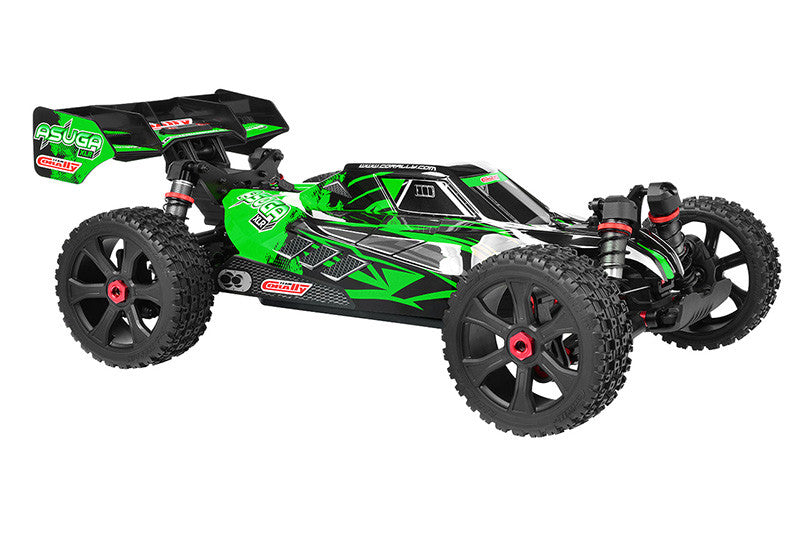

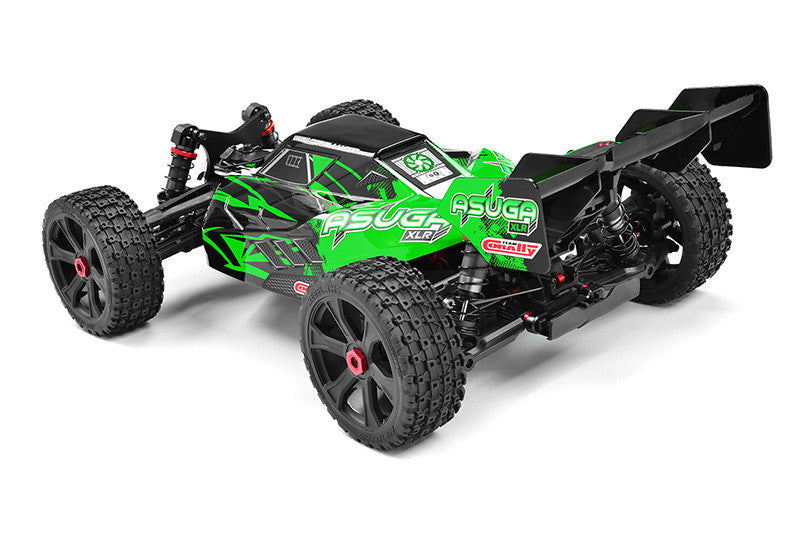

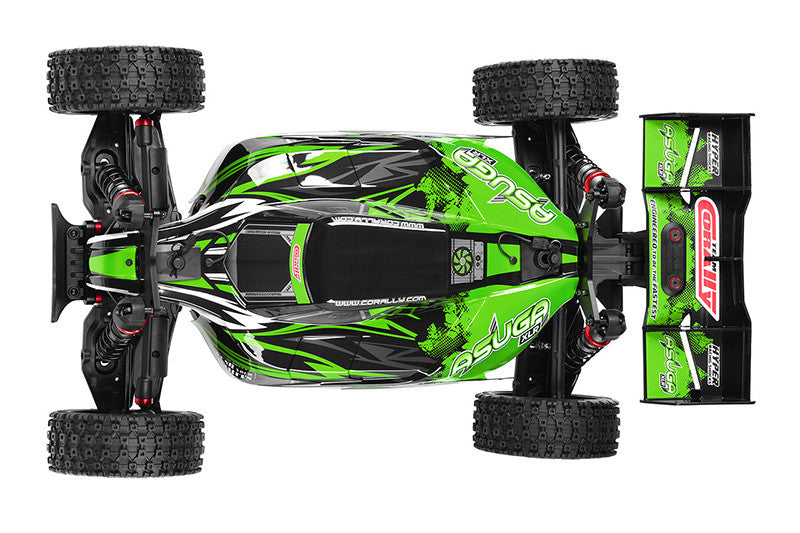

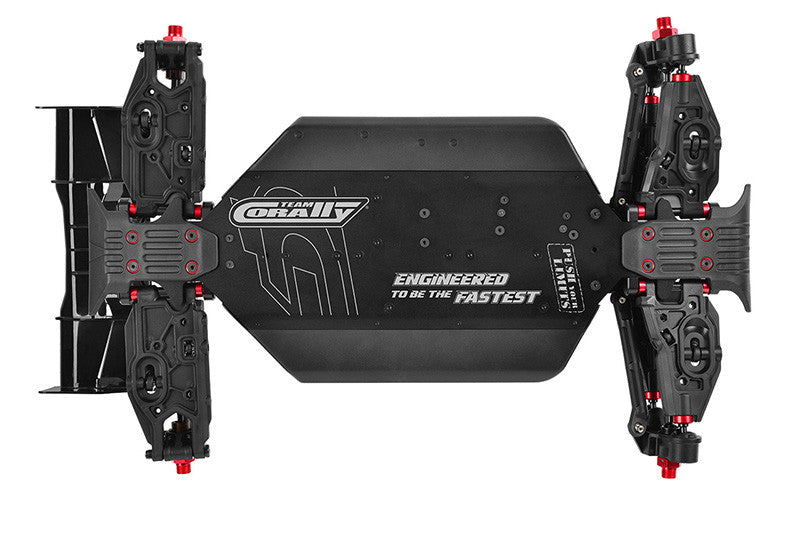

Presentation of the Asuga XLR 6S Brushless Roller Buggy

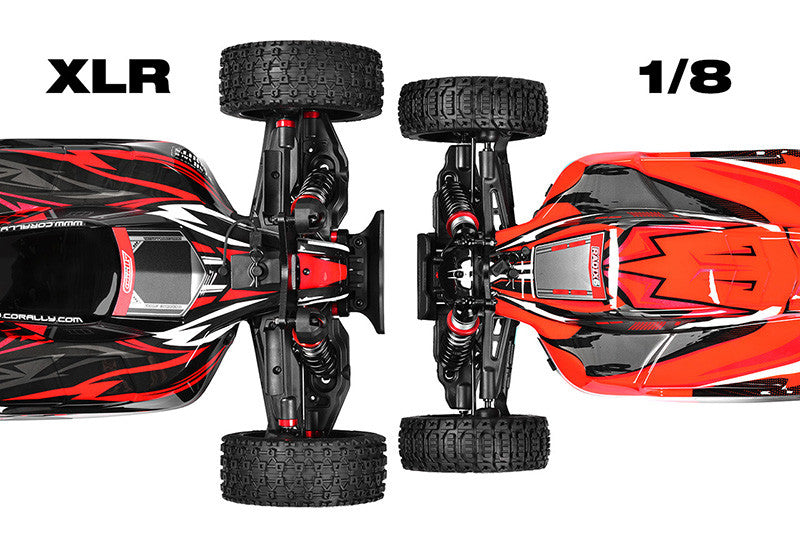

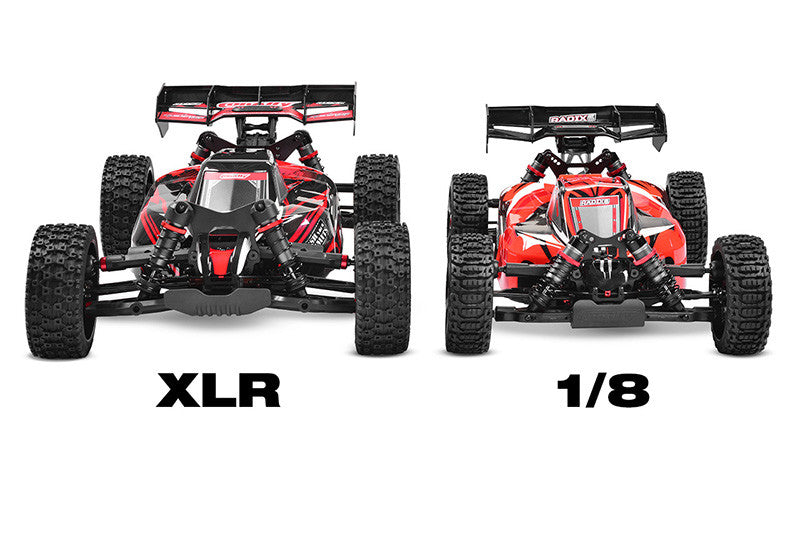

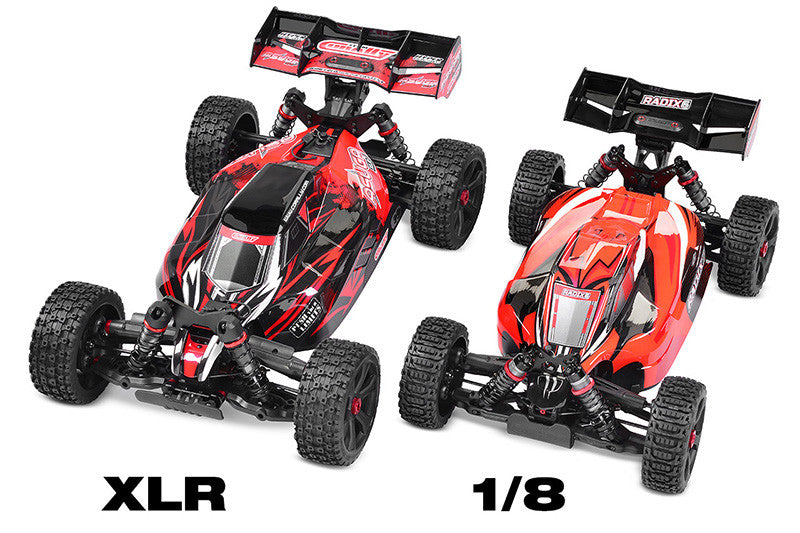

Larger than other models with additional ground clearance , massive suspension travel and oversized components, the Asuga XLR is an entirely new chassis that uses proven drive components from existing Team Corally 6S models. The impressive size of the Asuga XLR allows for very precise handling, astonishing acceleration , top speed and unrivaled durability. Reset your expectations and think big with the Asuga XLR RTR from Team Corally.
Technical details
Technical characteristics
- 70% compatibility with existing 1/8 Team Corally models.
- 3mm thick aluminum main chassis plate with side guards.

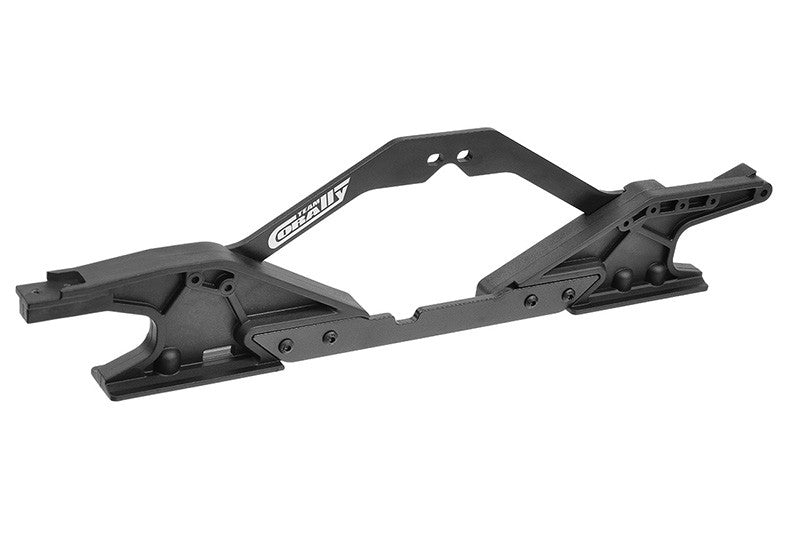

- Ultra-rigid hybrid central chassis reinforcement system.
- Adjustable CNC machined aluminum engine mount with aluminum and steel center differential.

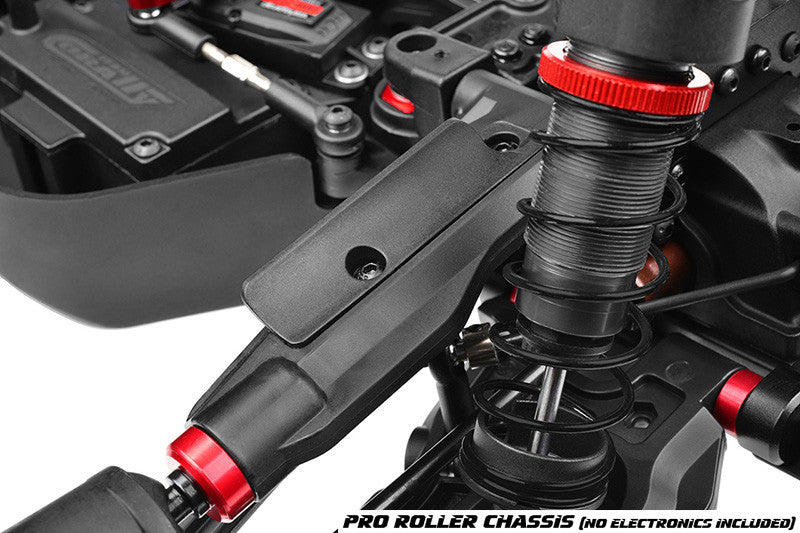

- Massive 16mm big bore, threaded aluminum, oil filled shocks with stiff springs, 4mm reinforced pistons and oversized shock lower ends.
- CNC machined 5mm thick aluminum front and rear shock towers.

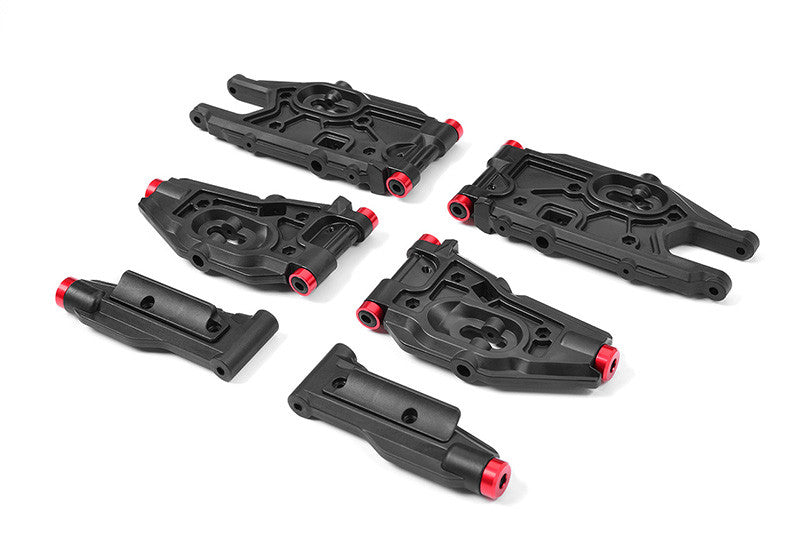

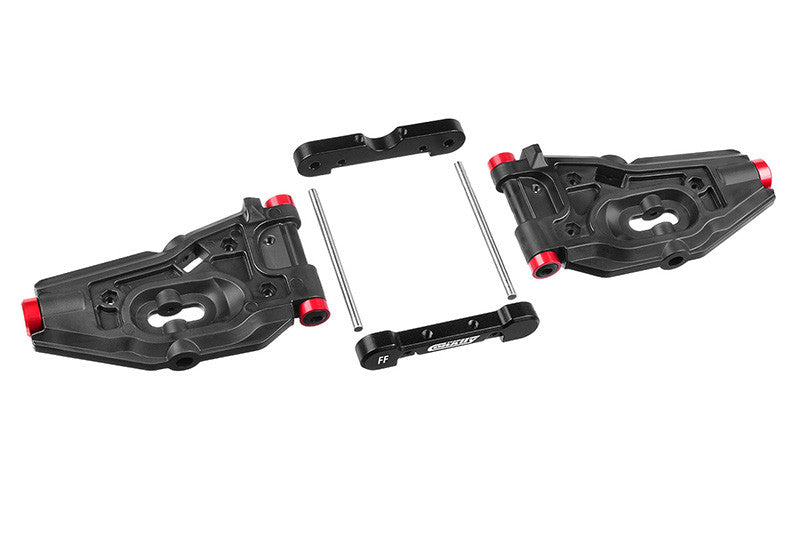

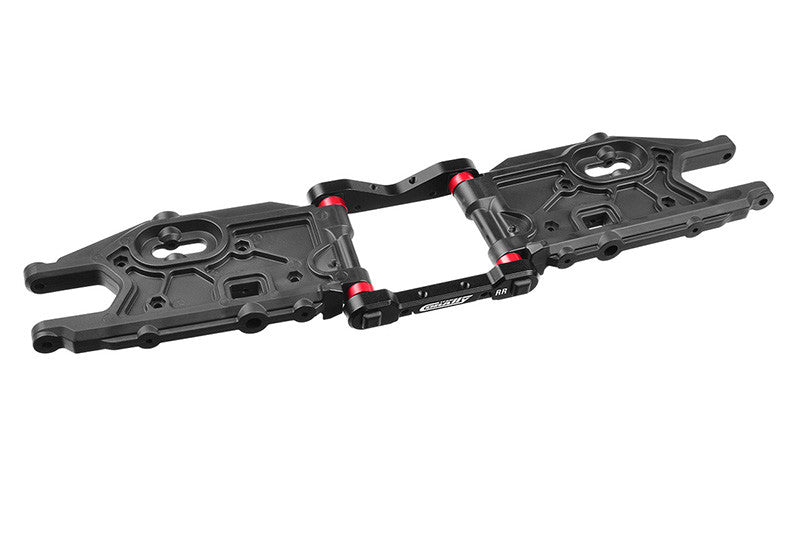

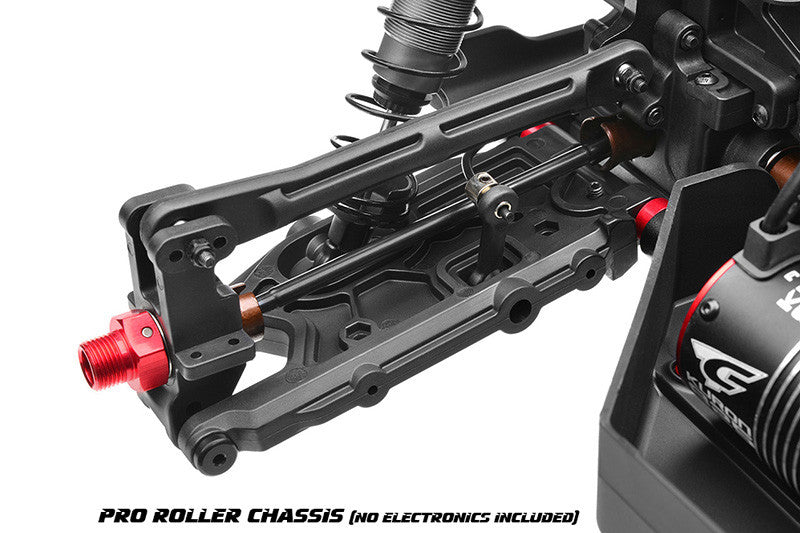

- Massive, heavy-duty composite control arms with aluminum hinge pin and retaining balls for impressive durability. The front upper arms feature a unique aerodynamic control kit for additional downforce and improved steering response.

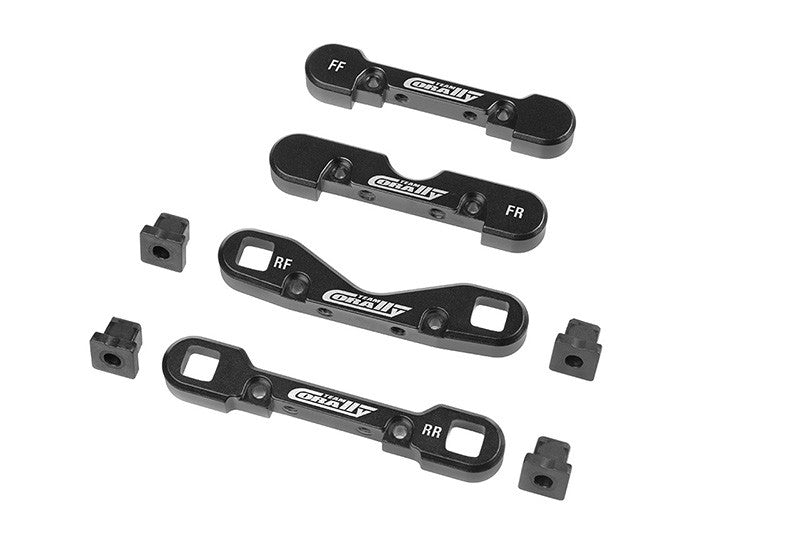

- The 8mm thick aluminum suspension axle brackets, secured by eight 4mm mounting screws, include adjustable composite pinch blocks.

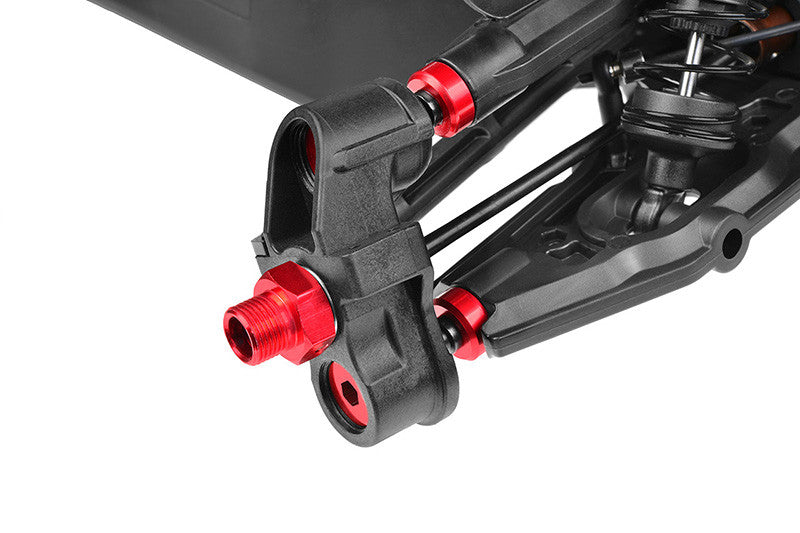

- Large, heavy-duty composite steering blocks with new cushion ball mounting features.

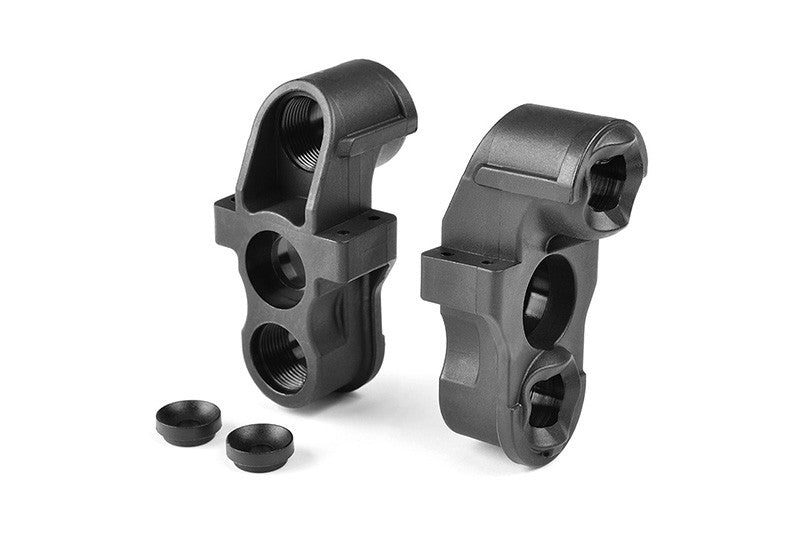

- Oversized composite rear hubs
- Durable composite steering and camber links.

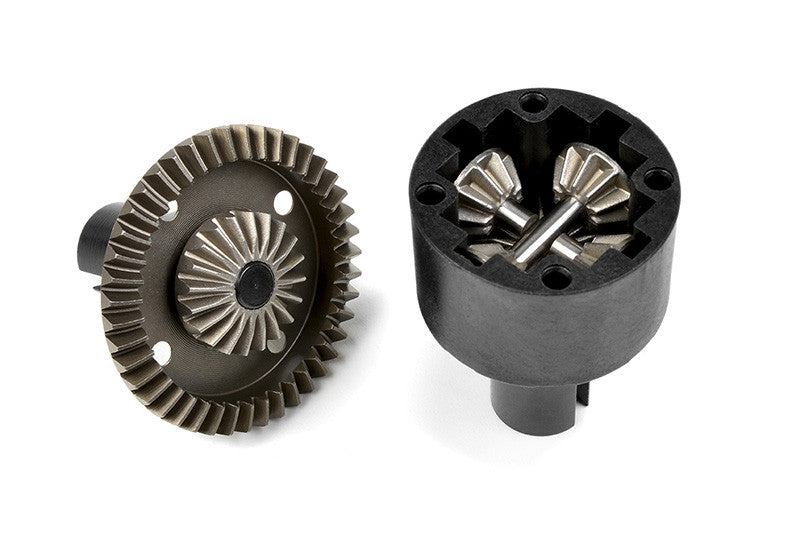

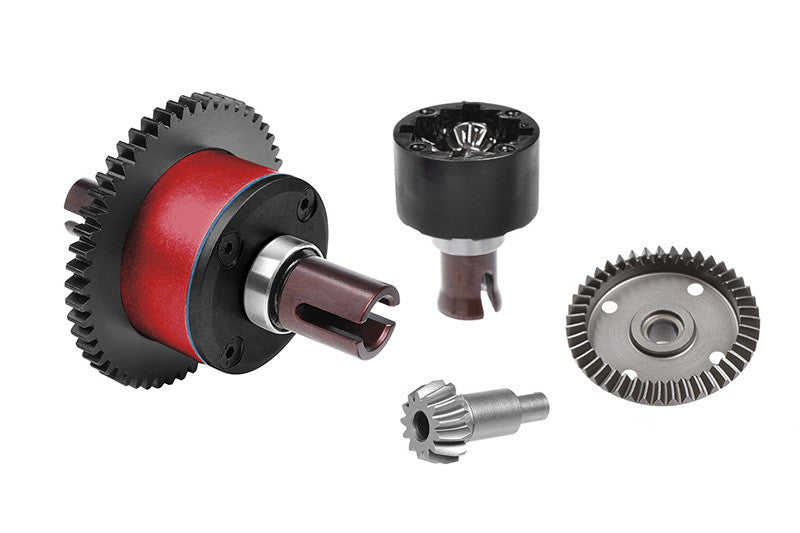

- Three precision liquid-filled differentials with CNC spiral cut metal input and main gears.
- Drive joints and axles made from hardened and durable S2 steel.
- Rubber sealed ABEC-3 ball bearings.

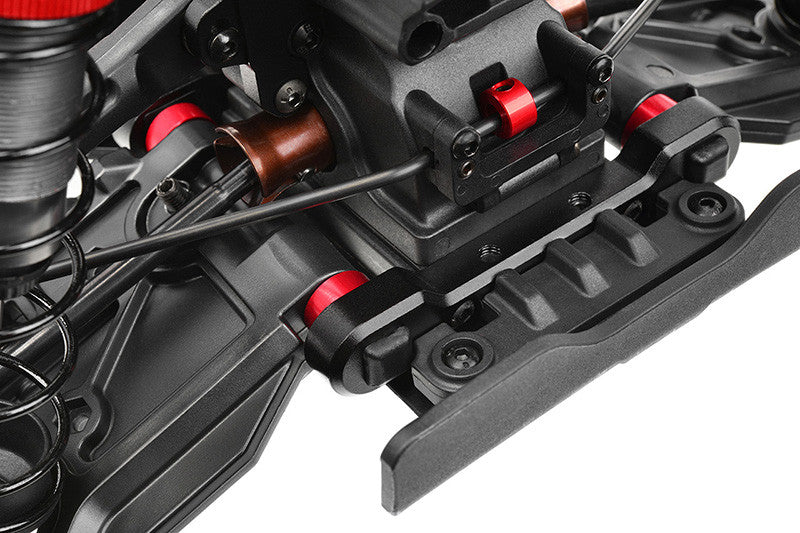

- Chassis skid plates with integrated modern front bumper.

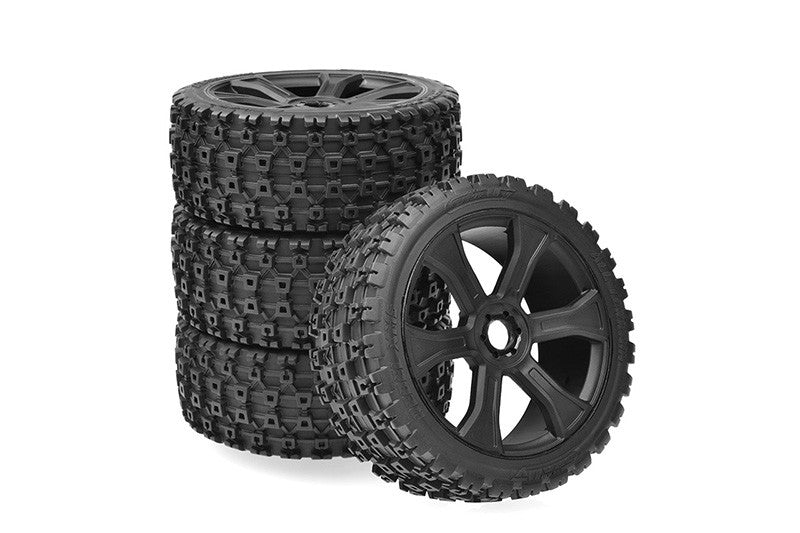

- Low profile, high grip Sprint RXA 130mm tires designed for 6S power.
Dimensions
- Length: 582mm
- Width: 352mm
- Height: 210mm
- Wheelbase: 371mm
- Weight: 3.77 Kg
Included in the Kit
- Buggy Asuga XLR 6S
- Manual
Necessary parts not included
- Motor + Drive
- Steering servo
- Radio + Receiver
- Lipo battery charger
- 2x3S Lipo Battery
- Alkaline batteries 1.5V AA (x 4)
