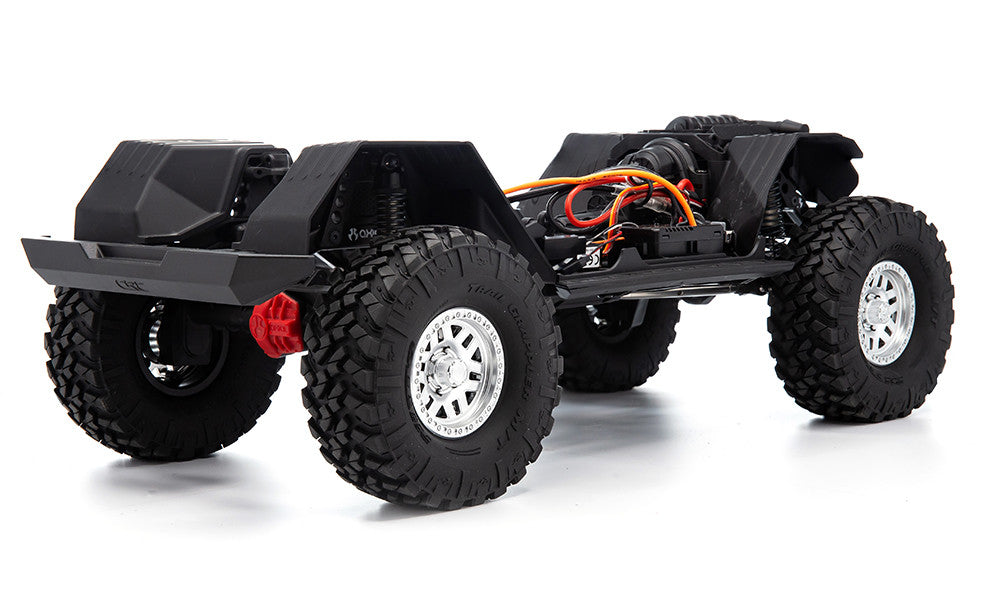

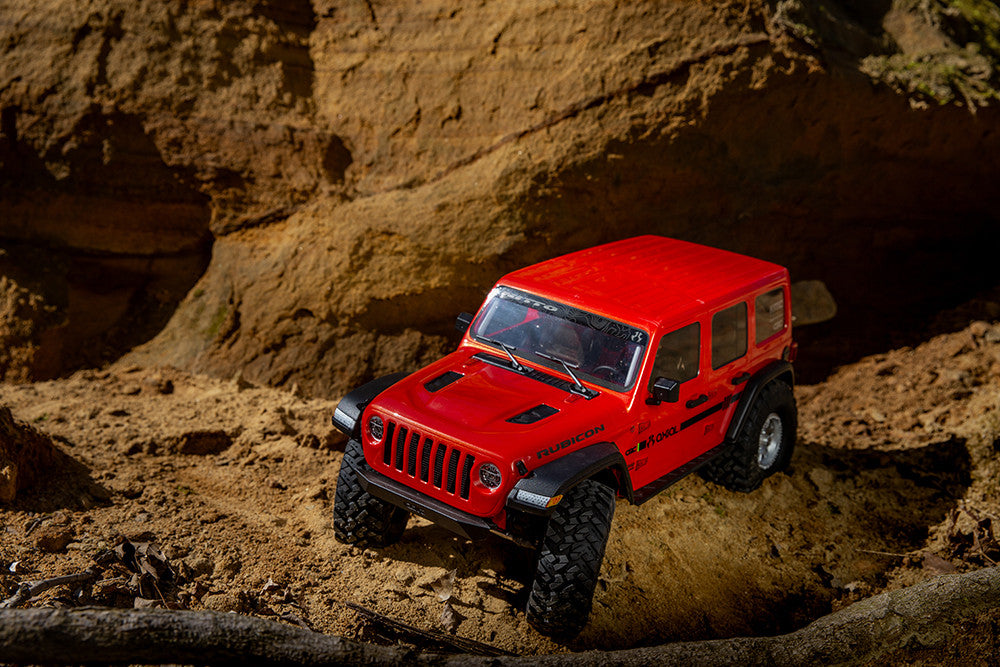

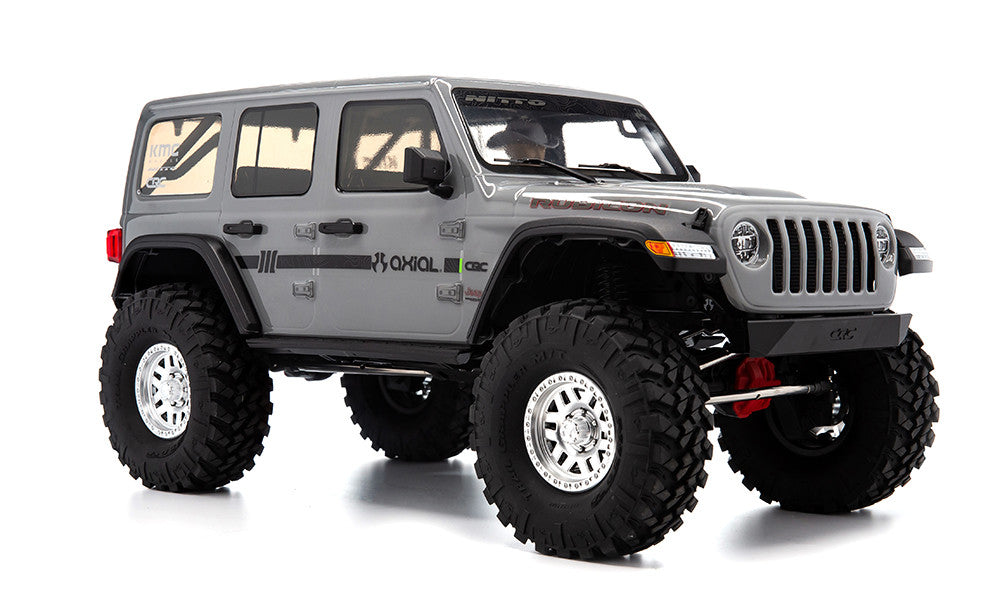

The Axial SCX10 III Jeep JL Wrangler 4WD kit in 1/10 scale offers innovative features while continuing to integrate the key components that have made the SCX10 vehicles successful. The SCX10 III increases chassis realism with details that include a replica V8 engine cover that houses a front-mounted 540 type engine .

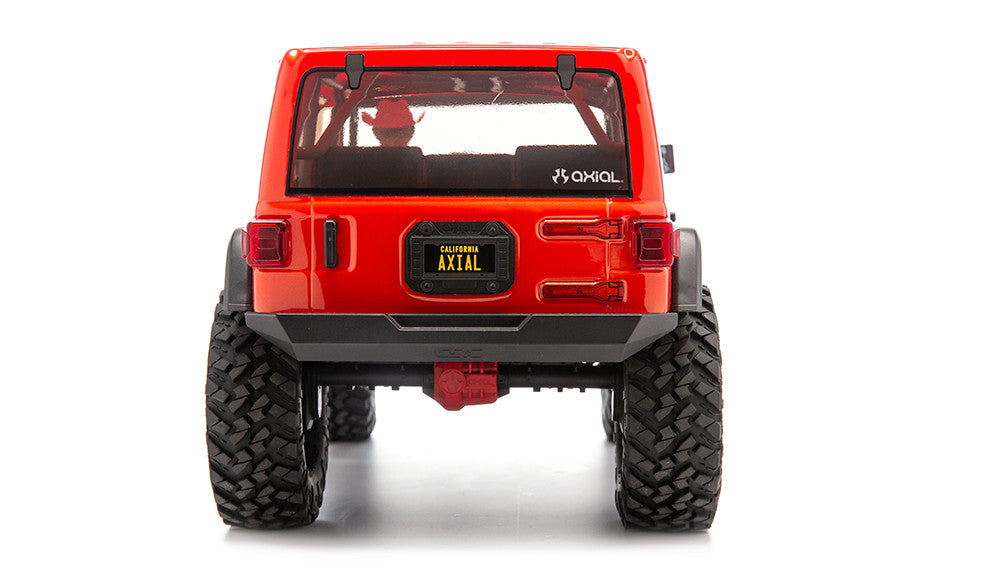

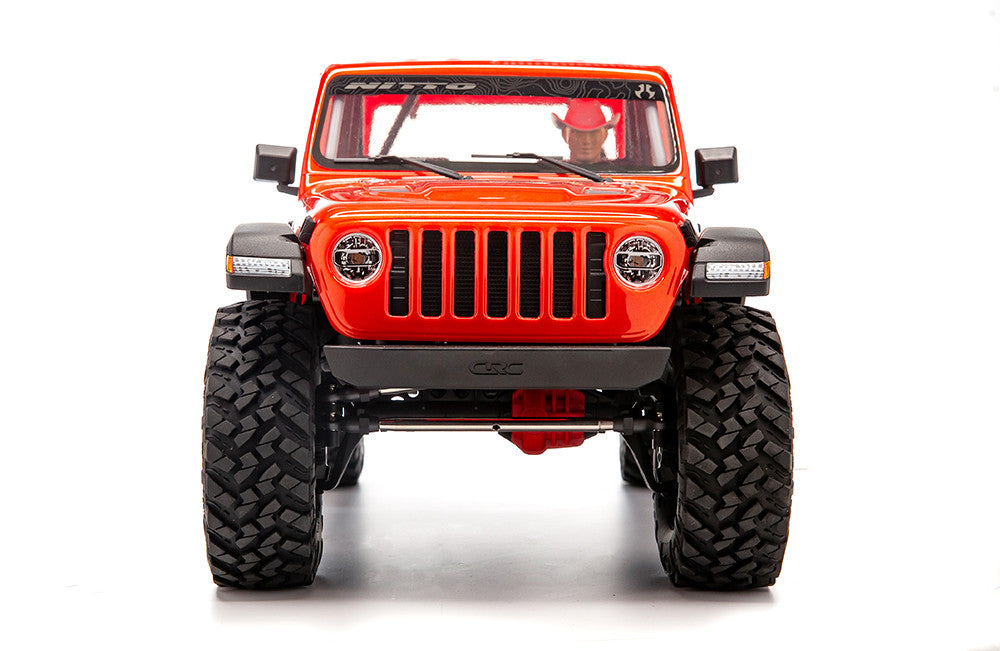

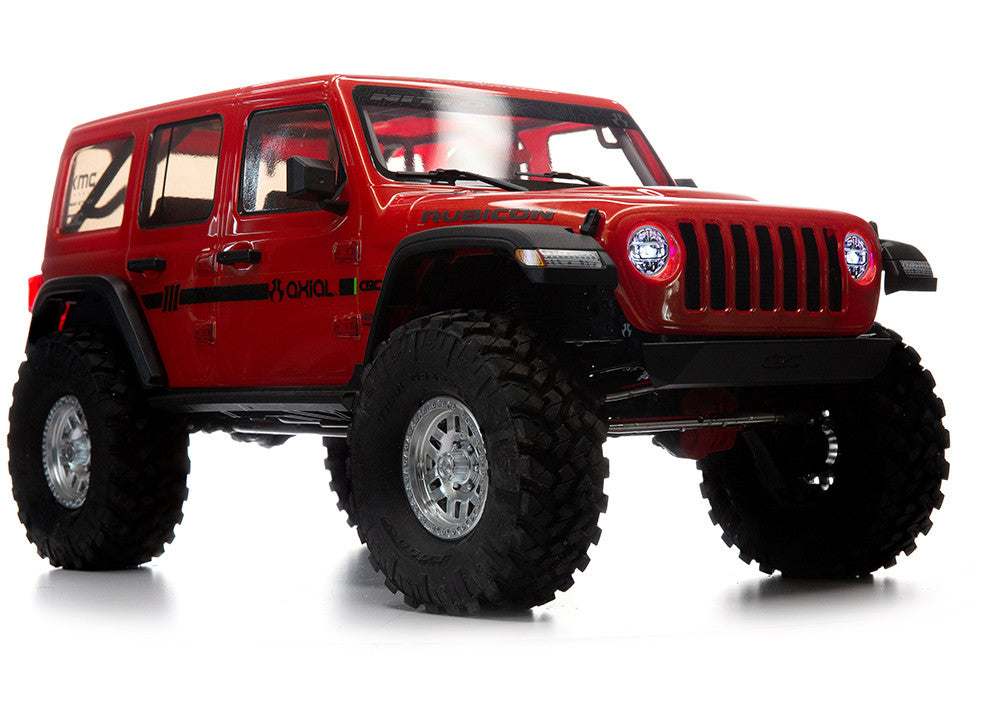

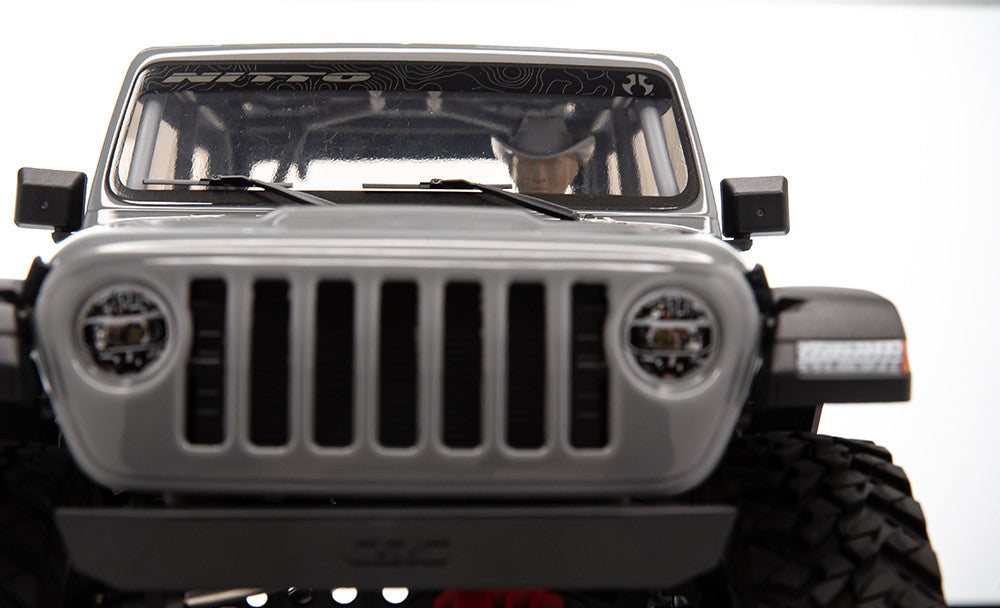

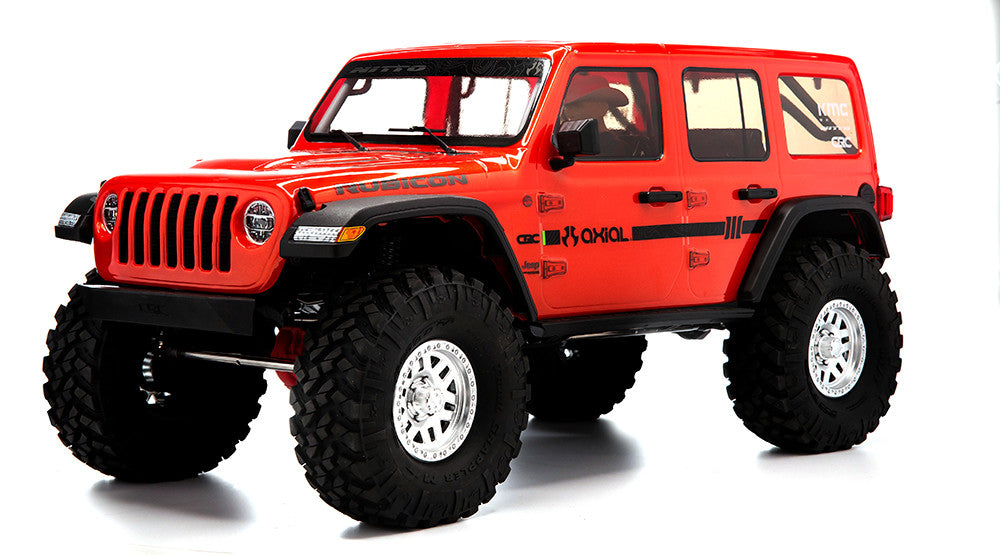

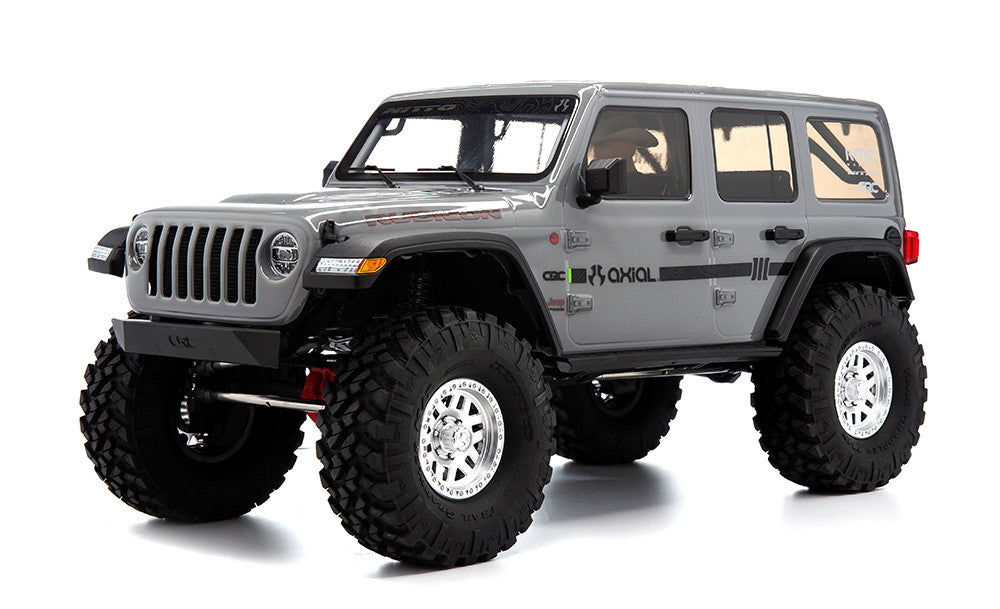

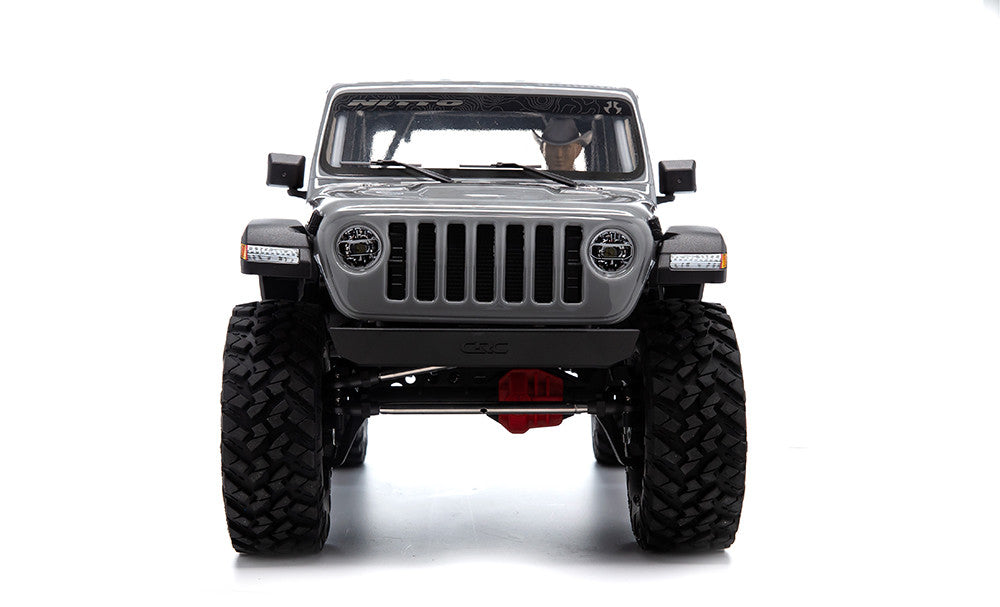

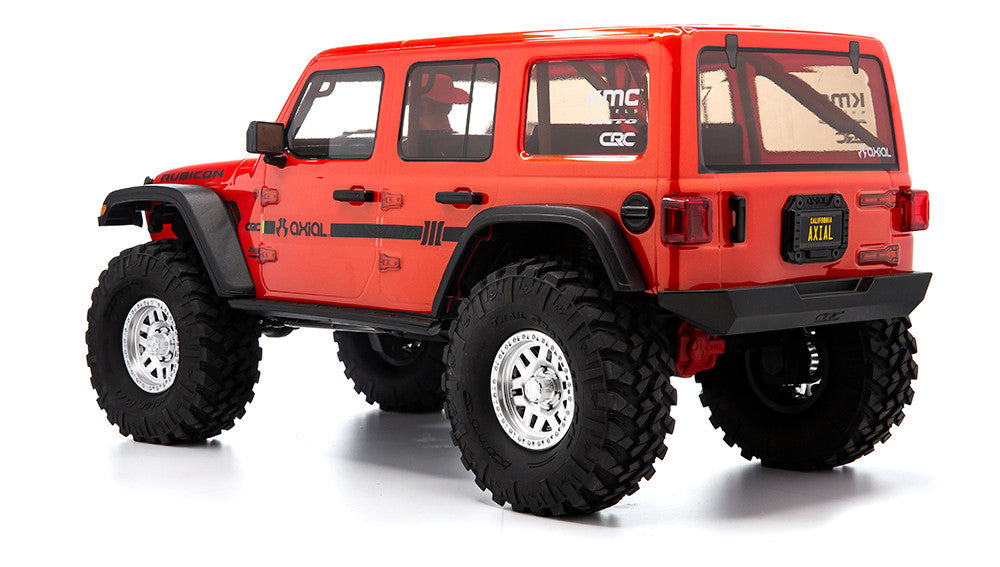

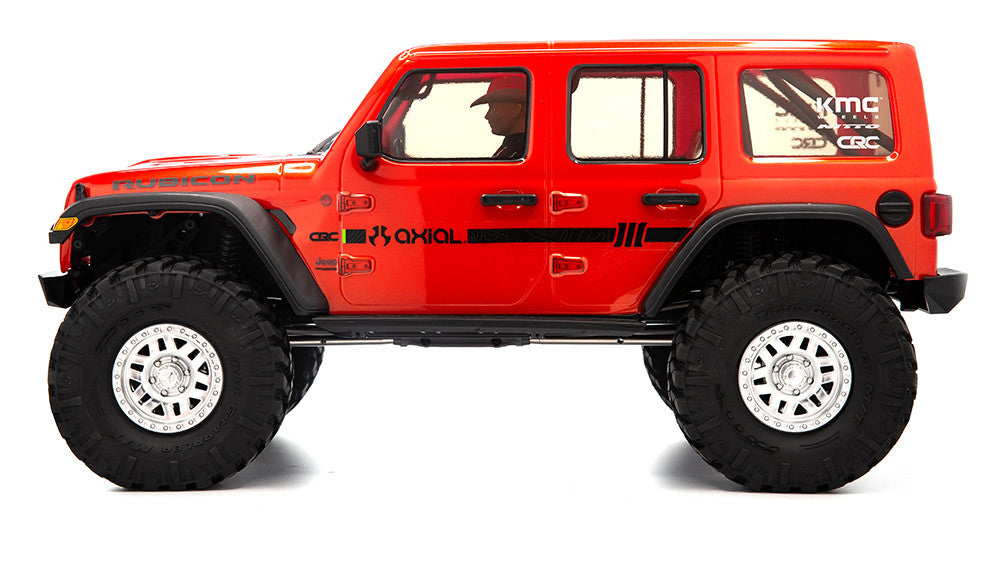

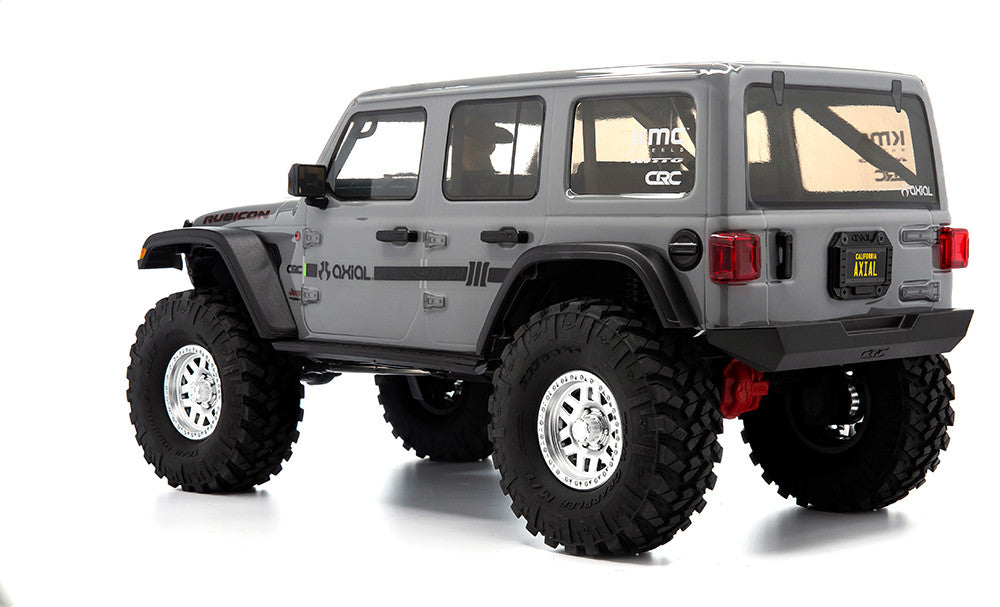

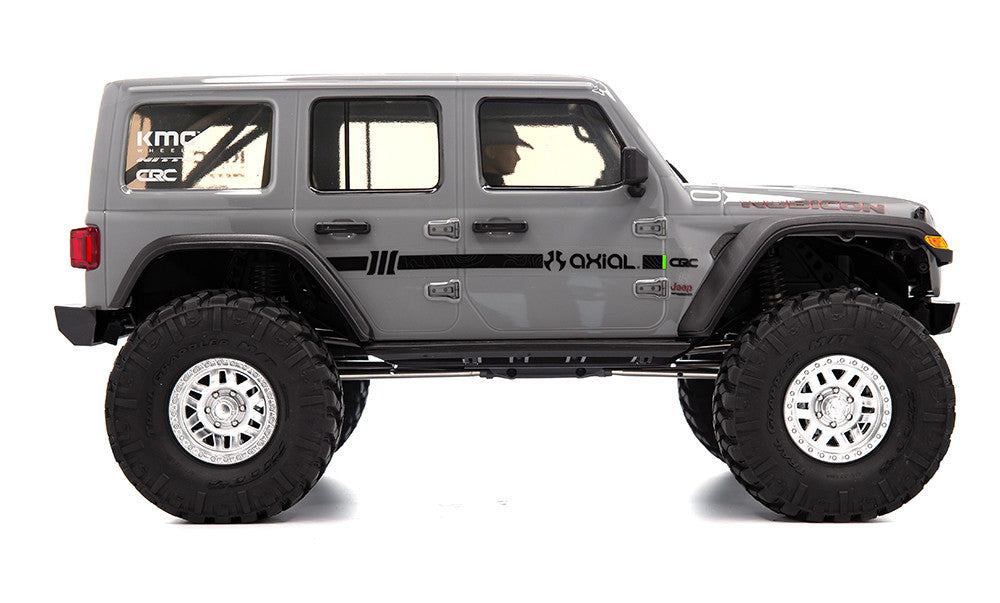

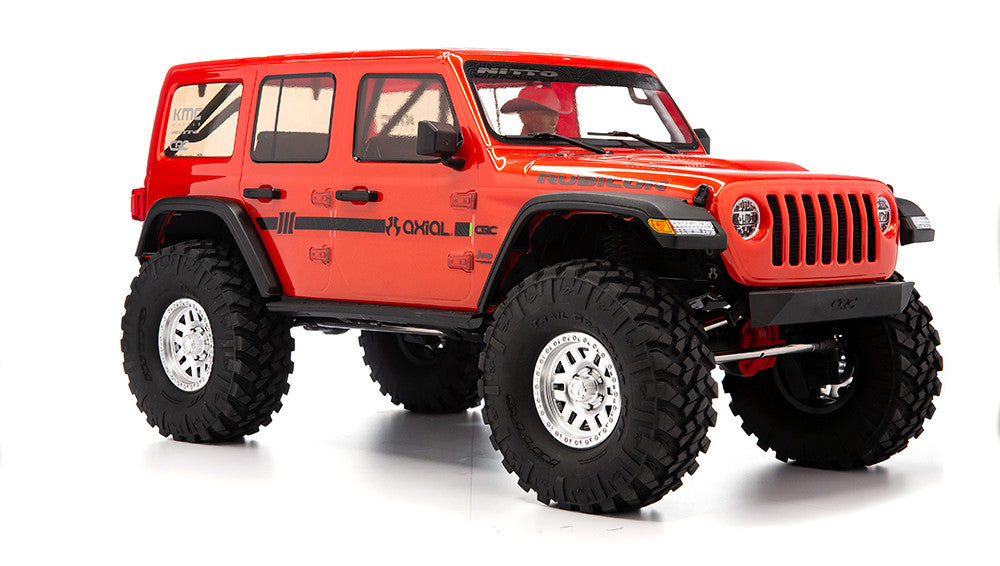

The SCX10 III kit uses portal axles to improve performance by increasing ground clearance and reducing torque twist. Its battery tray accepts standard LiPo or NiMH packs. To complement the chassis, the vehicle comes with a painted four-door Jeep Wrangler Unlimited body. Extensive details include a roll bar, windshield wipers, mirrors, door handles and more, as well as a detailed interior. Front and rear LEDs included.

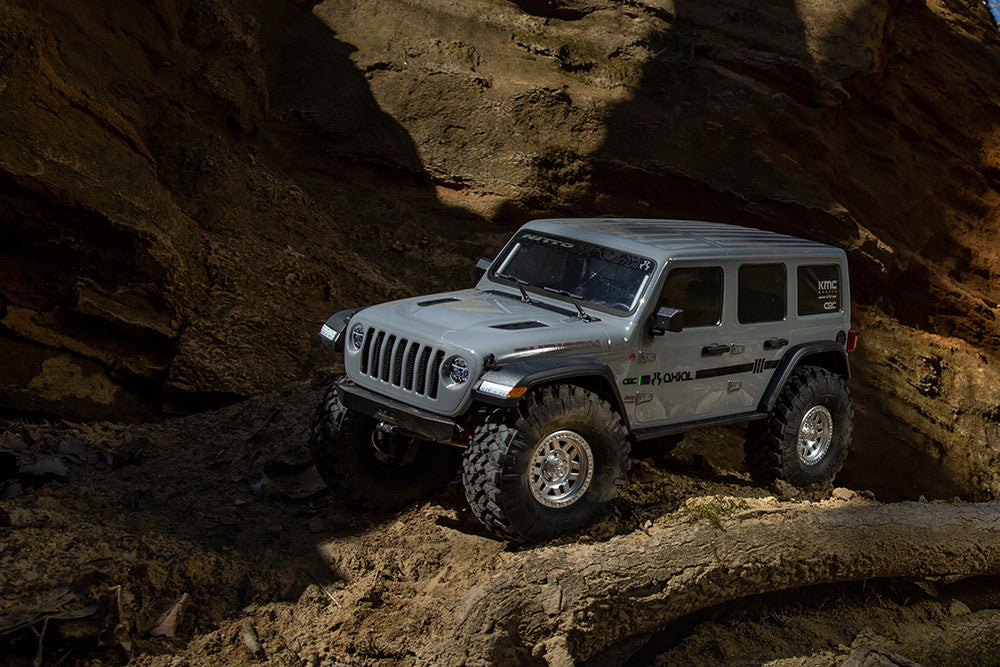

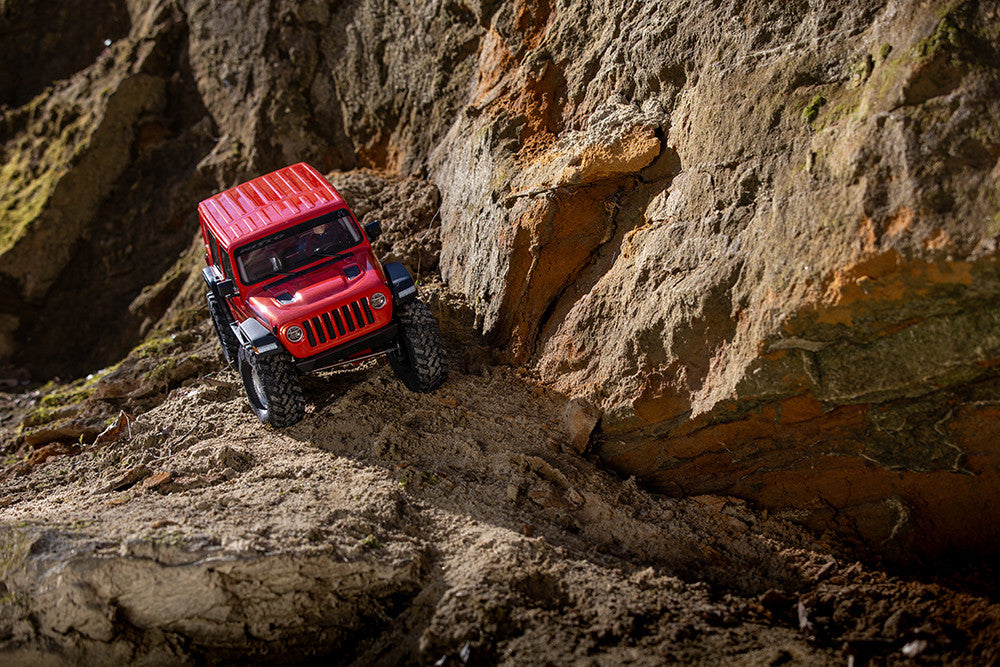

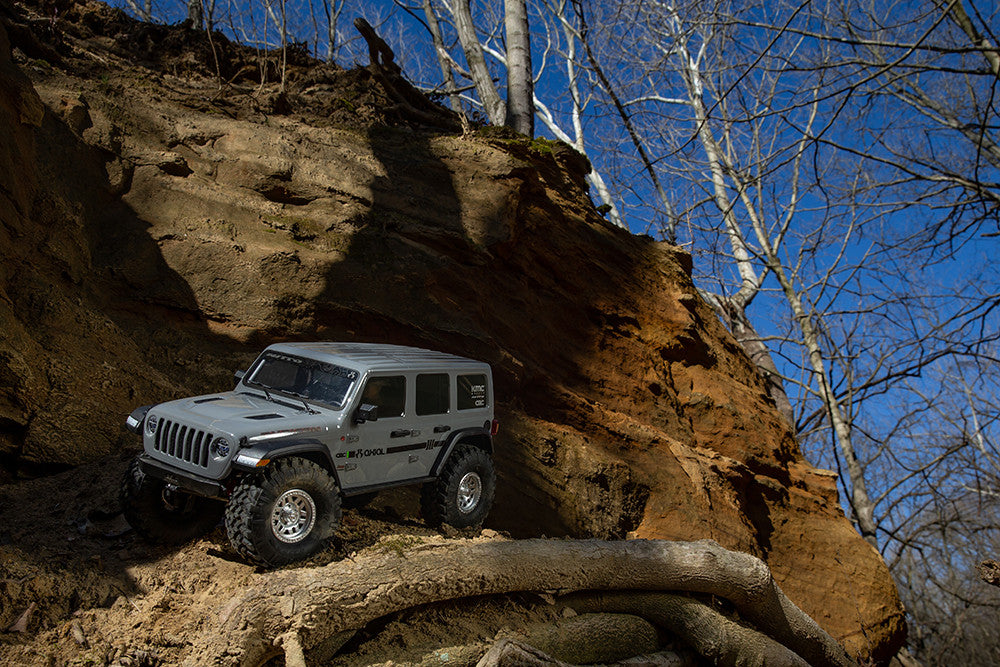

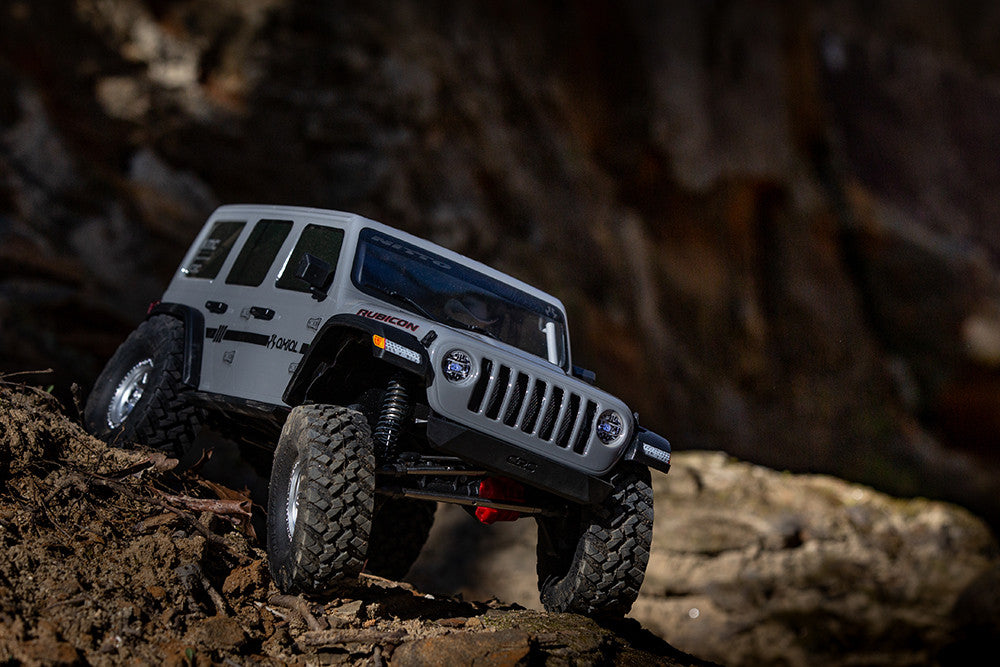

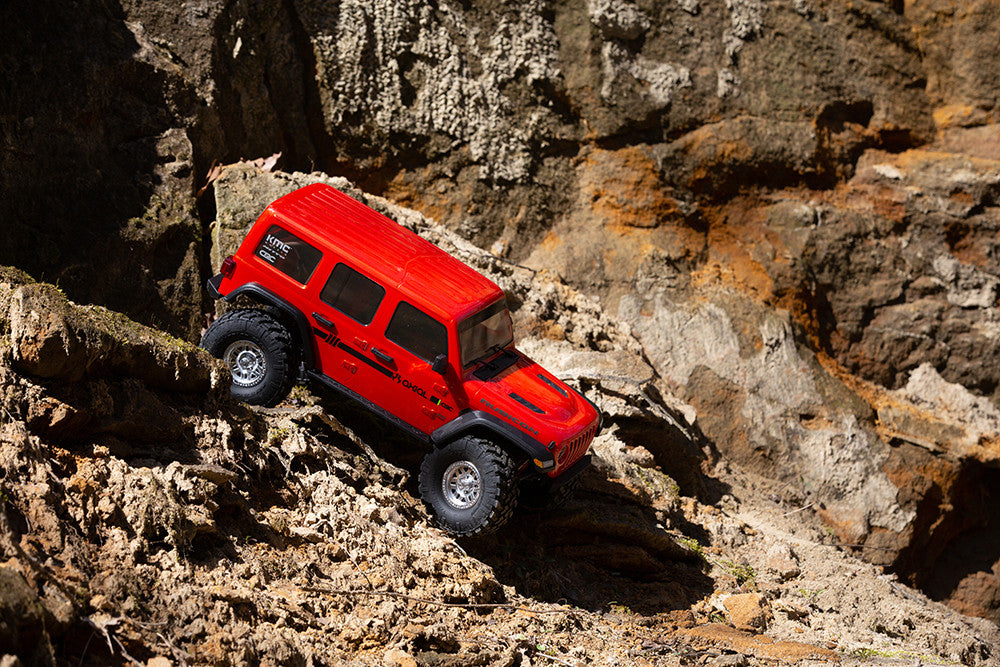

The new, taller and wider Nitto Trail Grappler tires, mounted on KMC Machete wheels, add greater realism and more grip on dirt, rocks and all other off-road trails .
The SCX10 III's versatile transmission can be configured in several ways:
- 4x4 1 speed - 2 way radio + standard servo
- 4x4 1 speed + DIG - 3 way radio + std servo + micro servo (original configuration)
- 4x4 2 speed - 3-way radio + std servo + micro servo (modifiable by changing the micro servo position)
- 4x4 2 speed + DIG - 4 way radio + std servo + 2 micro servo
- 4x4 drivetrain.

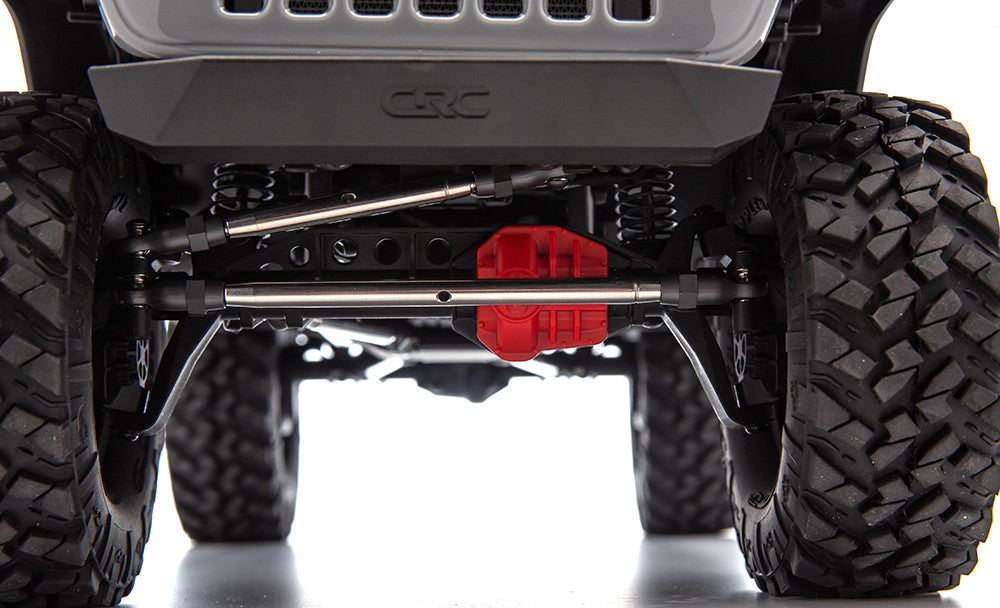

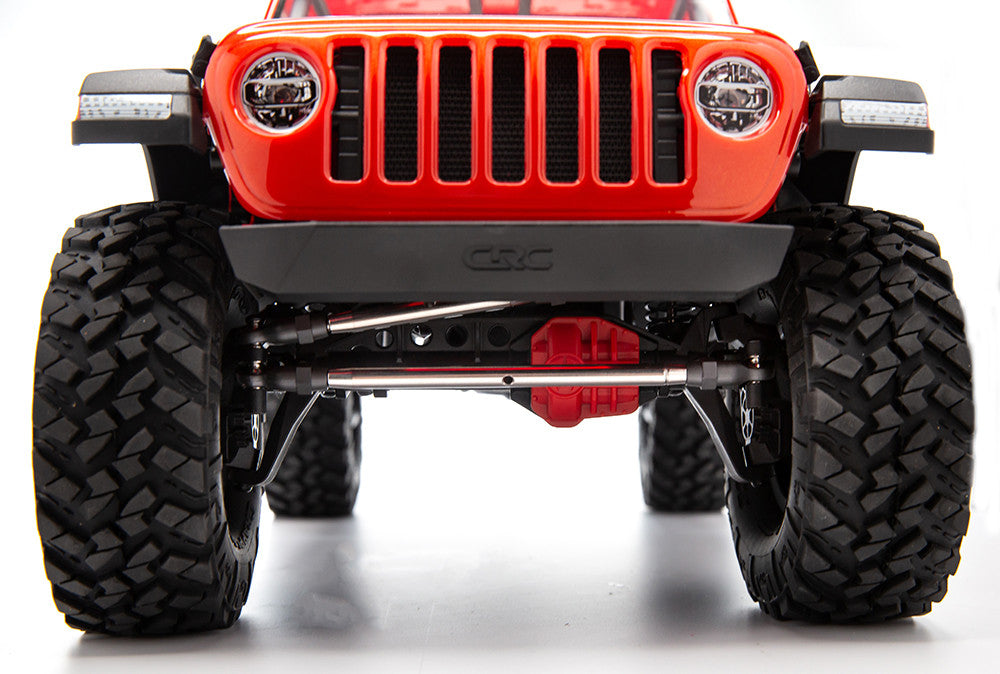

- AR45 gantry axles to increase ground clearance
- Conical torque inherited from the Capra
- CVD AR45P wheel universal joints that can take 45° angle
- WB8 HD Wildboar central gimbals

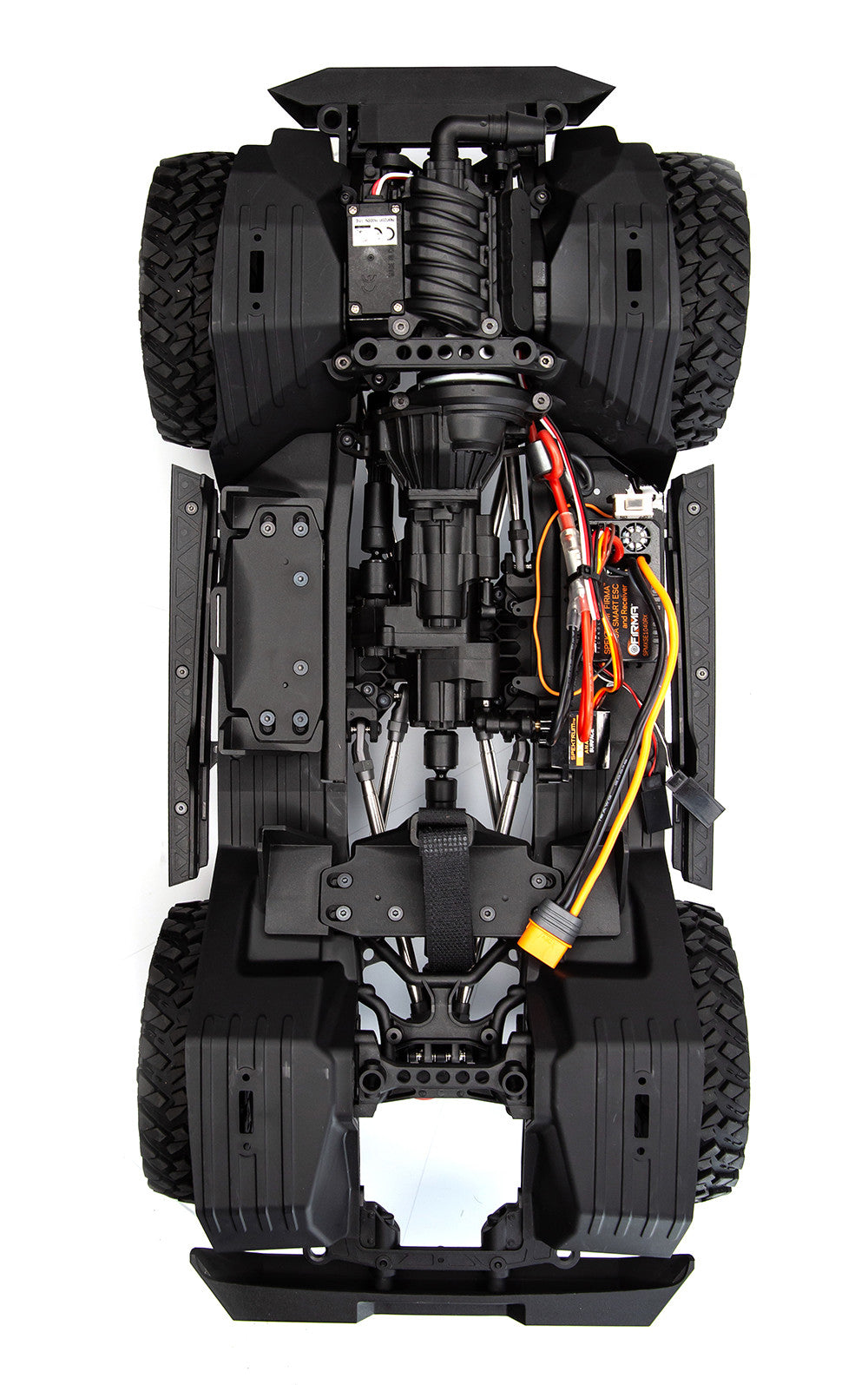

- Lower and side wheel arches to hide electronics
- Engine in front position connected to a transfer case (like the real ones)

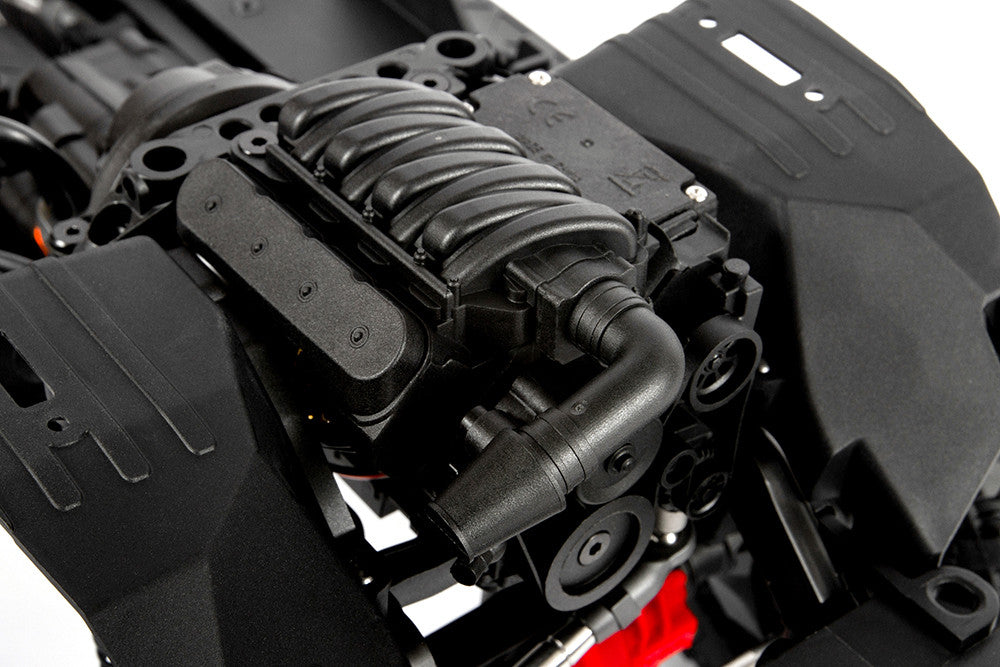

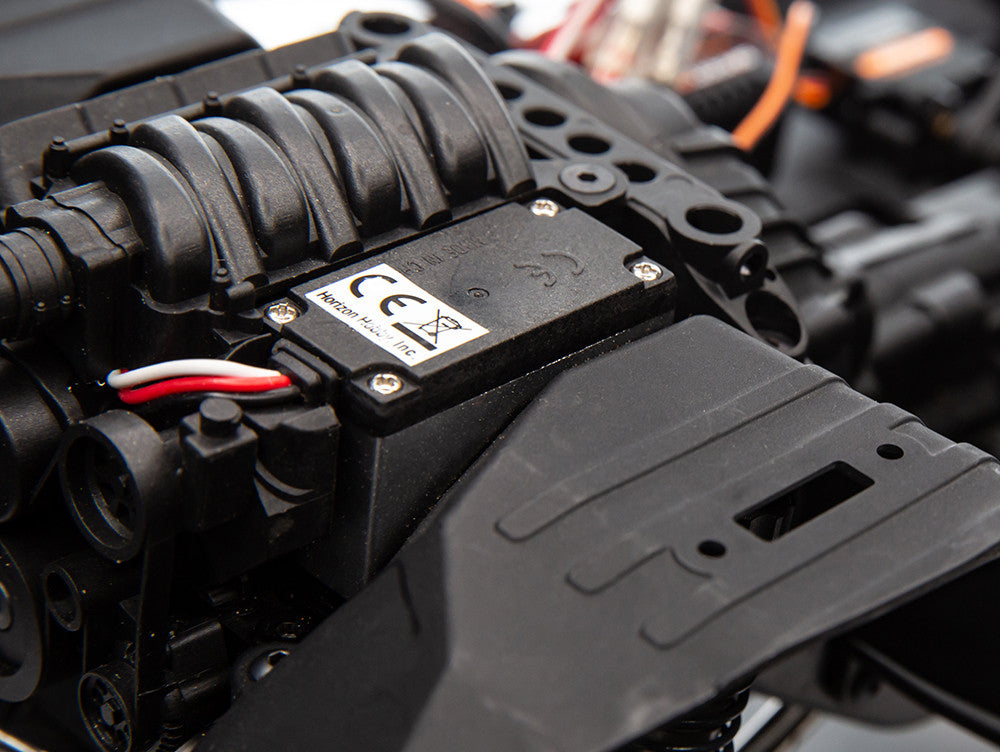

- Engine cover with V8 look
- Several battery configurations possible Shorty/Standard, transverse/lateral
- Adjustable wheelbase
- JMW XD Machete 1.9 rims 48.3x25.5mm

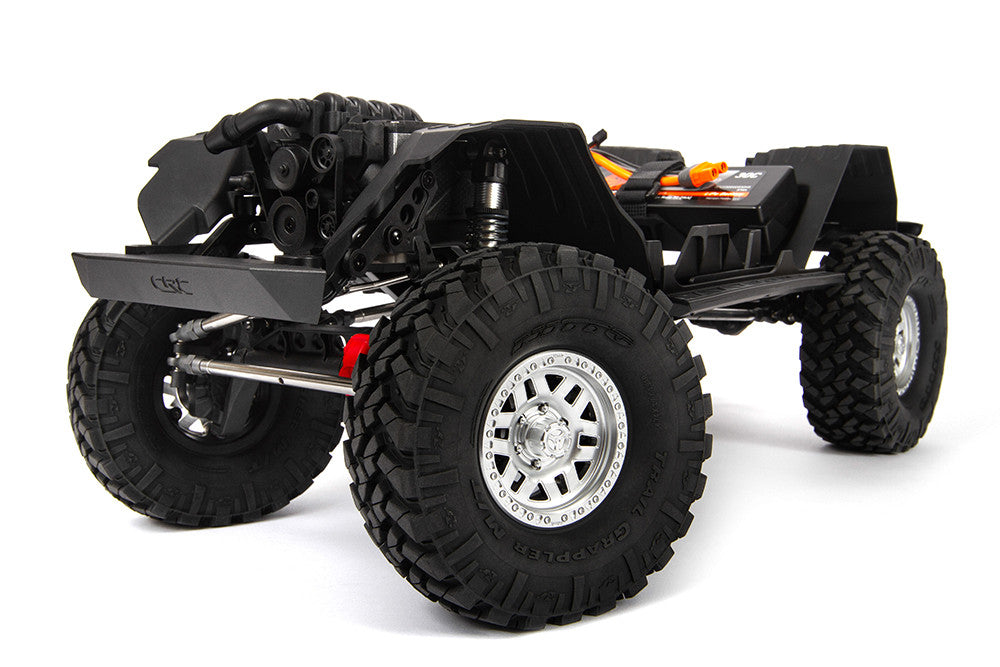

- Nitto Trail Grappler R35 119mm rubber tires
- Shock absorbers with aluminum body and adjustable
- Metal rudder 25 and 23ts
- Servo installed in CMS position
- Metal links
- Jeep Wrangler bodywork in treated lexan model
- Numerous ABS accessories included (mirrors, handles, windshield wipers, etc.)
- Spektrum DX3 radio (3 channels)

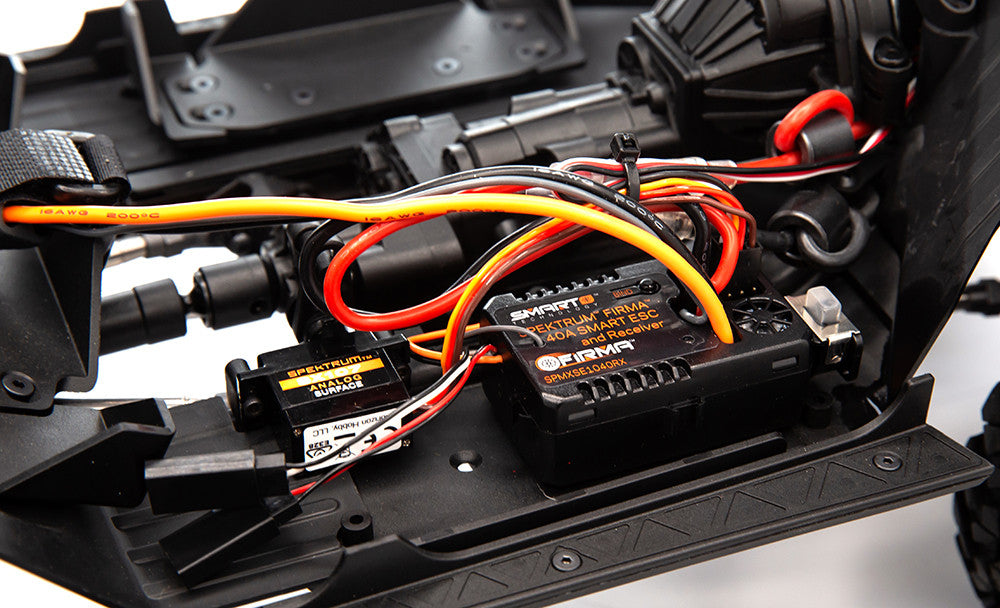

- Spektrum Firma Smart 40A Dimmer/Receiver
- 540 14T coal engine
- Spektrum S614 steering servo
- Spektrum SPMSSX107 gearbox servo

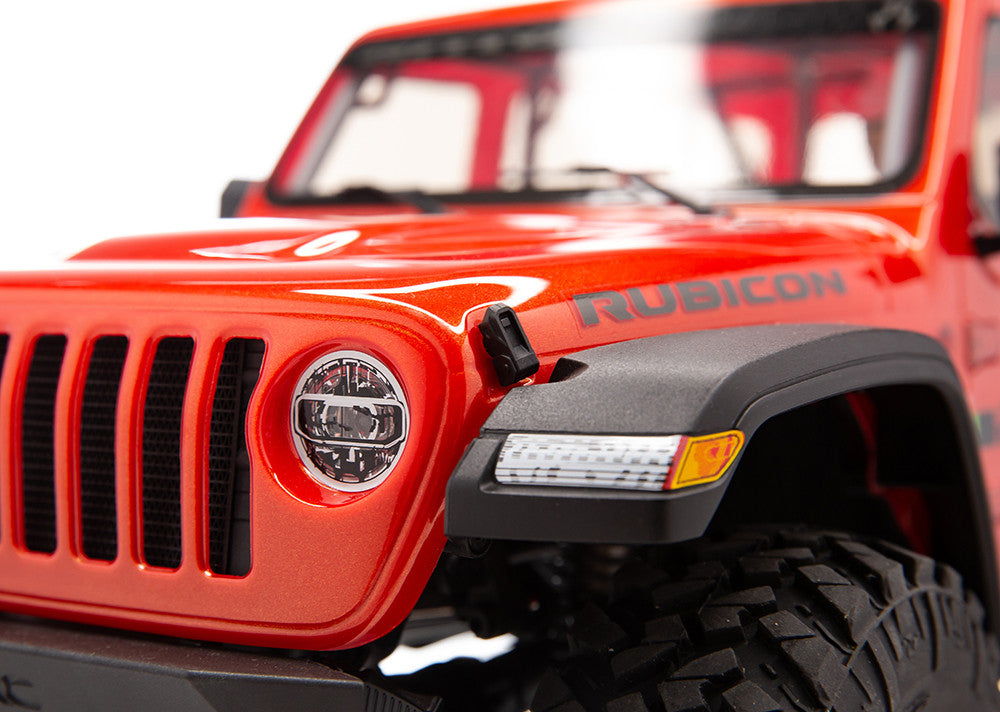

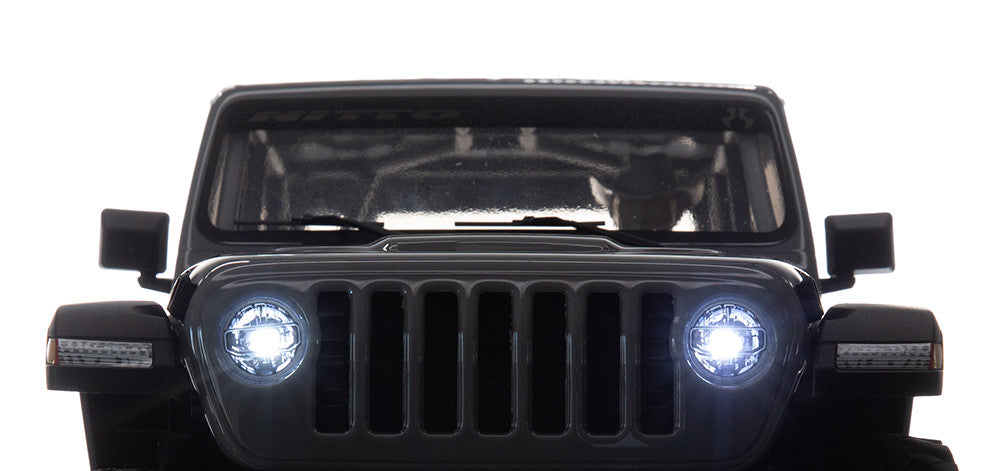

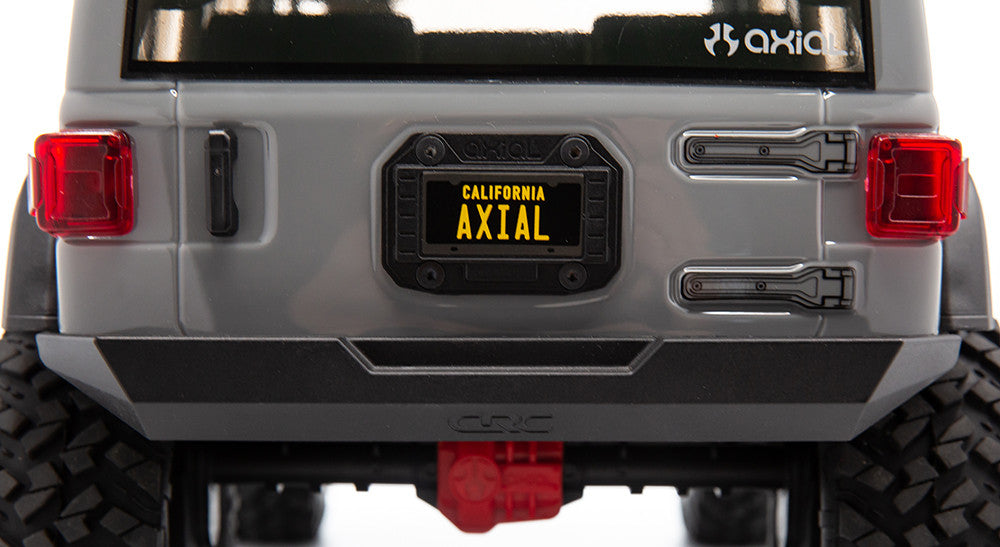

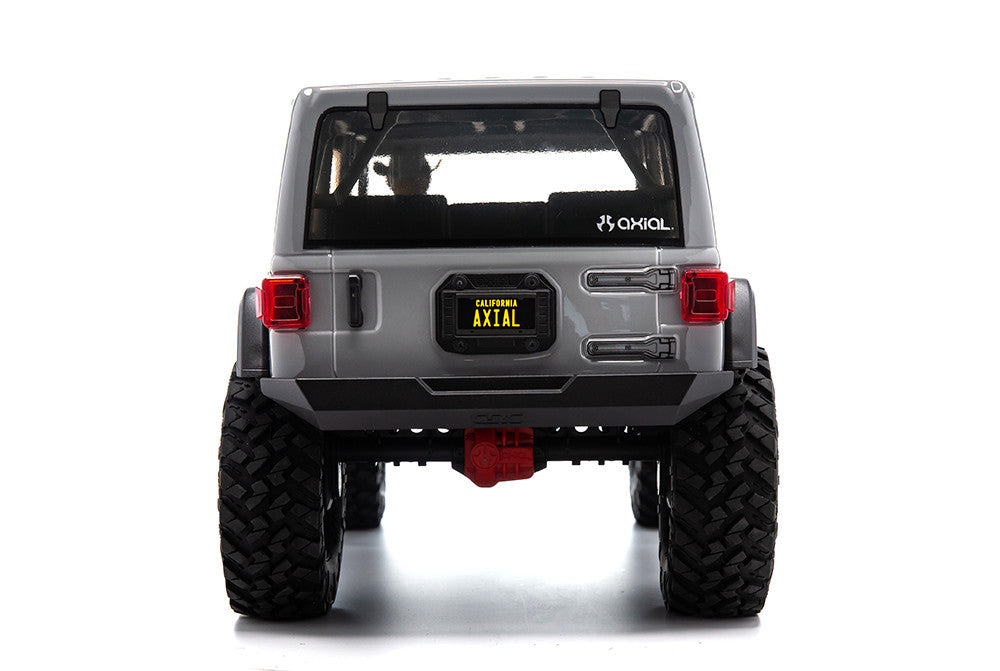

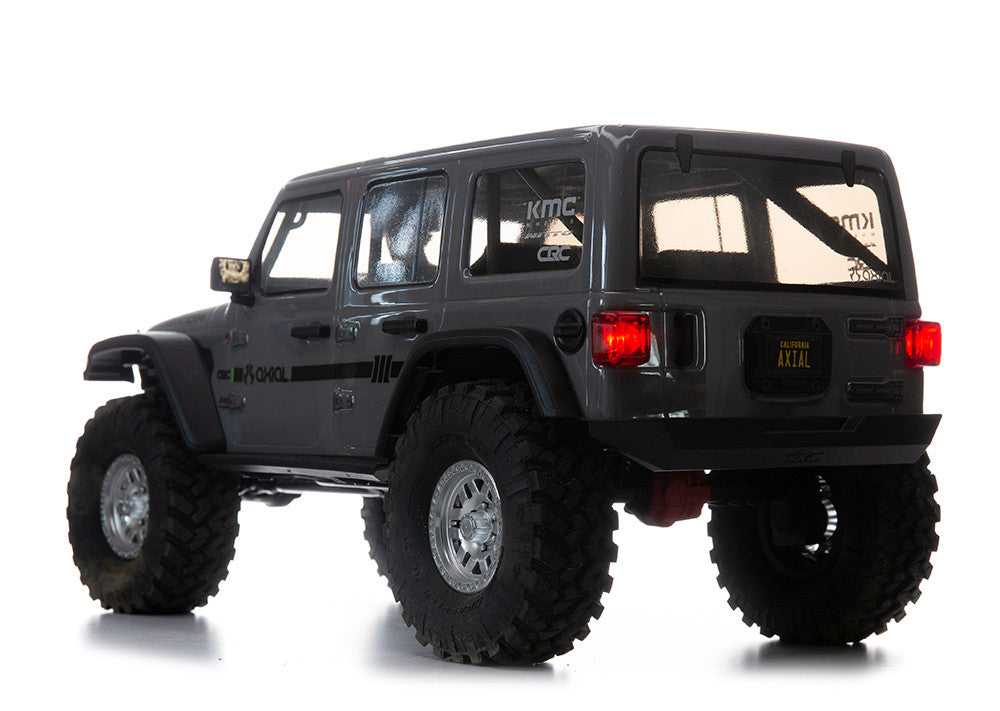

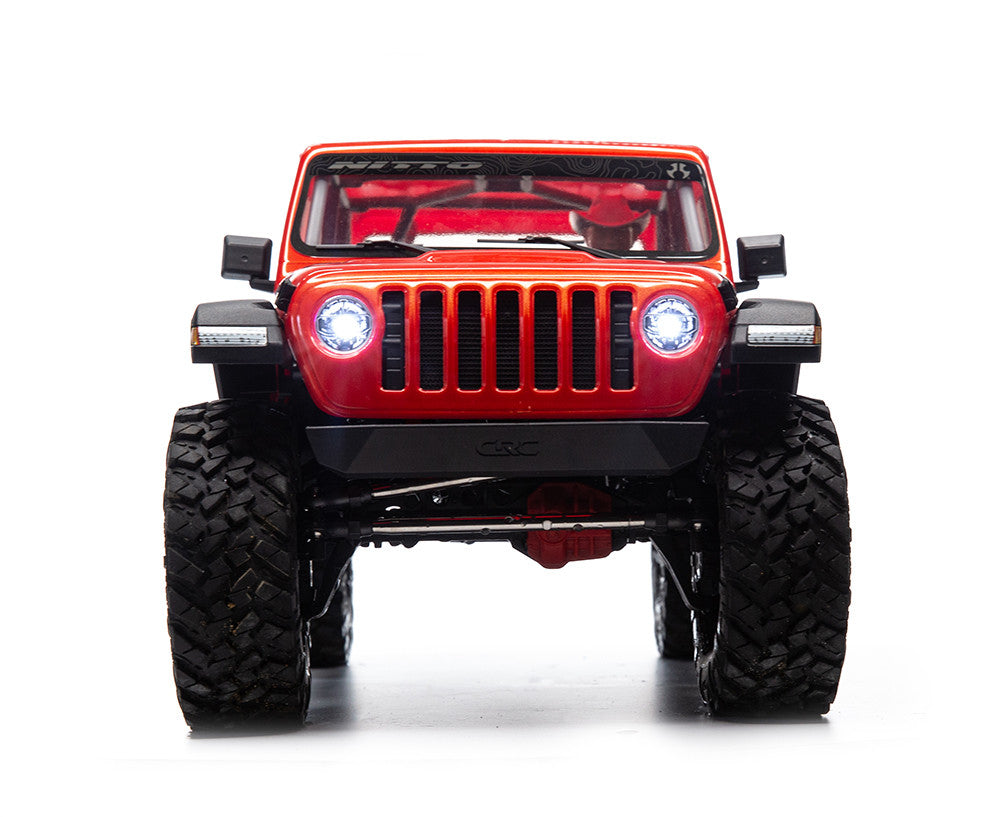

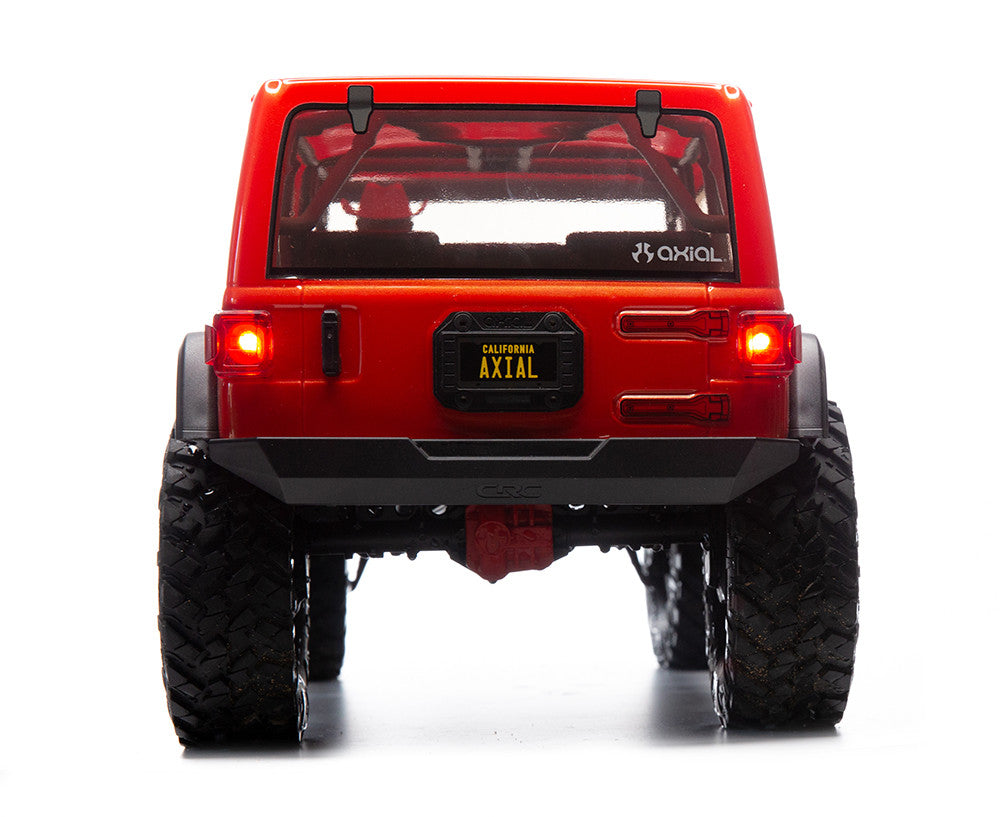

- Front white LED and rear red LED included
- Wheelbase 312mm
- Width 234mm
- Length 485mm
- Ground clearance 76.2mm
- Weight 2.9kg (With electronics)
- 2S lipo battery IC3/EC3 socket
- Compatible charger
- 4 Batteries for the radio
