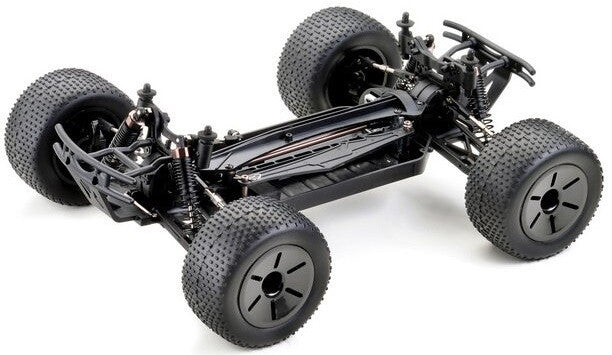

Presentation of the Truggy Absima AT3.4 4WD 1/10 KIT
The KIT version of the Absima AT3.4 V2 is a DIY assembly, requiring common tools like pliers and a screwdriver. The shock absorbers and gearbox come pre-assembled, making assembly accessible to children under adult supervision. This kit offers the freedom to choose the electronic components to install. It includes two gear configurations: a copper/plastic combination suitable for carbon motors, and an all-metal version for brushless motors. This kit offers total flexibility in terms of engine choice.
Characteristics of the Truggy Absima AT3.4 4WD 1/10 KIT
Main Features
- 4-wheel drive (4WD) with 4 adjustable hydraulic shock absorbers
- Magnificent painted and decorated bodywork
- Optional and spare parts available
Technical characteristics
- 1/10th electric buggy car for off-road and on-road use
- Central chassis reinforcement
- Aluminum engine mount
- Transmission on ball bearings and under protective casings
- Treated steel universal joints (Front and Rear)
- Two front and rear differentials
- Aerodynamic polycarbonate bodywork, painted
- Large protective front bumper
- Large volume hydraulic shock absorbers
- Multi-position Front and Rear Aluminum Shock Mounts
- Toe and camber adjustable by reverse pitch links
- The car fully assembled ready to use
- 4-wheel drive (4WD) with 4 adjustable hydraulic shock absorbers
- Magnificent painted and decorated bodywork
- Easy maintenance with common parts on the running gear
- Optional and spare parts available
- A design directly from the competition.
- 18 Tooth Sprocket Provided in Kit
Dimensions
- Length: 380mm
- Width: 255mm
- Height: 155mm
- Wheelbase: 270mm
- Crossing height: 35 mm
- Tire diameter: 88mm
- Tire width Front 33mm and Rear 42mm
Included in the box
- Buggy AT3.4 V2 Kit
- A sheet of pre-cut stickers to apply
- Very detailed instructions with list of spare parts for servicing and maintenance
Necessary parts not included
- Motor + Drive
- radio + receiver
- Battery + Charger
- Steering servo
